TRANSMISSION (2)

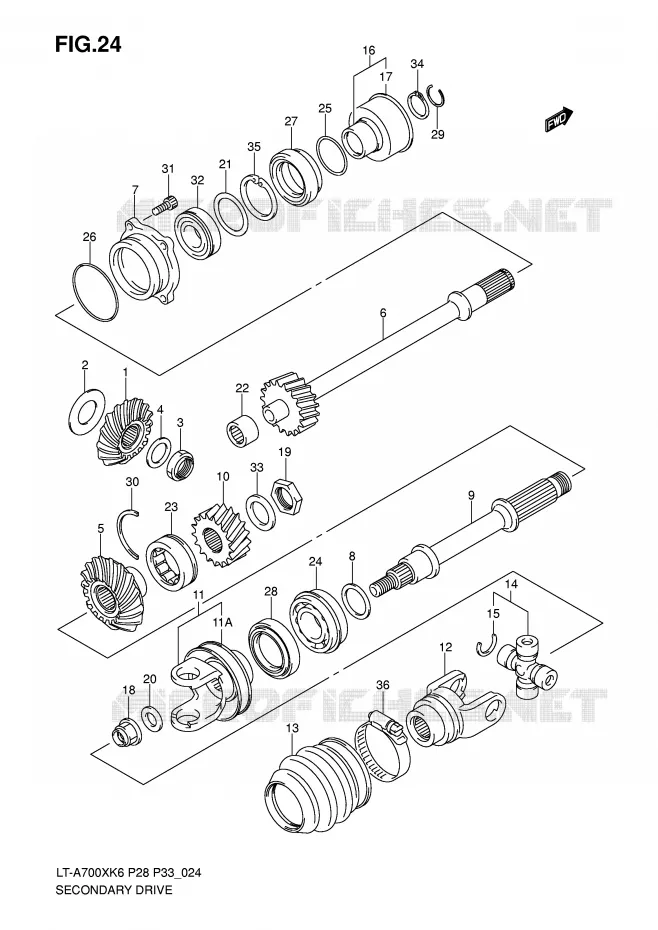

DRIVESHAFT FOR SUZUKI KINGQUAD 700 2006

GEAR SHIFTING ASSY

Item numbers

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVE BEVEL

24911-31G00-000 2491131G00000

$223,97

Unit Price

SHIM SET, SEC DRIVE BEVEL

24935-03811-000 2493503811000

$137,97

Unit Price

NUT 20MM
NUT, SEC DRIVE OUTPUT

09140-20012-000 0914020012000

$5,97

Unit Price

WASHER
WASHER, SEC DRIVE BEVEL

09181-20223-000 0918120223000

$4,97

Unit Price

GEAR, SEC DRIVEN BEVEL

24921-31G00-000

24921-31G10-000

$256,97

Unit Price

24961-31G50

24961-31G00-000

Not available

HOUSING, FR OUTPUT SHAFT BRG
HOUSING, FR OUTPUT SHAFT

24965-31G00-000 2496531G00000

$35,97

Unit Price

SHIM SET, SEC DRIVEN BEVEL

24945-03811-000 2494503811000

$111,97

Unit Price

SHAFT, SEC DRIVEN OUTPUT RR
SHAFT, SEC OUTPUT, RR

24971-31G00-000 2497131G00000

$300,97

Unit Price

GEAR, SEC DRIVEN OUTPUT SHAFT

24972-31G11-000

24972-31G20-000

$106,97

Unit Price

DISCONTINUE
YOKE, RR DRIVE OUT

27130-31G00-000 2713031G00000

Not available

11A

DISCONTINUE
FLANGE, OUTPUT YOKE

27592-31G20-000 2759231G20000

Not available

FLANGE, RR OUTPUT SHAFT
YOKE, PROP SHAFT

27141-31G00-000 2714131G00000

$152,97

Unit Price

BOOT, RR PROP SHAFT

27153-31G00-000

27153-31G01-000

$25,97

Unit Price

JOINT SET, UNIVERSAL RR

27200-73813-000

27200-73814-000

$82,97

Unit Price

RING, SNAP
CIRCLIP, UNIVERSAL JOINT

09380-25005-000 0938025005000

$2,97

Unit Price

COLLAR, FR DRIVE OUTPUT
COLLAR, FRONT DRIVE

27590-31G00-000 2759031G00000

$65,97

Unit Price

PLATE, OUTPUT OIL SEAL

27592-31G00-000 2759231G00000

$18,97

Unit Price

NUT
NUT, RR DRIVE OUTPUT YOKE

09159-16003-000 0915916003000

$5,97

Unit Price

NUT, PRIMARY SHAFT
NUT, SEC DRIVEN OUTPUT

09159-22005-000 0915922005000

$37,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER, RR DRIVE OUTPUT

09160-16026-000 0916016026000

$6,97

Unit Price

SHIM, T:1.0
WASHER, FR DRIVE OUTPUT

09181-40195-000 0918140195000

$9,97

Unit Price

BEARING, FRONT OUTPUT
BEARING, FRONT OUTPUT, RR

09263-25068-000 0926325068000

$69,97

Unit Price

BEARING
BEARING, SEC DRIVEN GEAR

09263-30050-000 0926330050000

$71,97

Unit Price

BEARING, REAR OUTPUT

09267-25006-000

09267-25014-000

$127,97

Unit Price

O RING
O-RING, FR DRIVE OUTPUT

09280-25005-000 0928025005000

$4,97

Unit Price

O RING(D:3.5, ID:65.2)
O-RING, FRONT BRG HOUSING

09280-57002-000 0928057002000

$4,97

Unit Price

OIL SEAL 34X52X14
SEAL, FRONT OUTPUT SHAFT

09283-34008-000 0928334008000

$32,97

Unit Price

OIL SEAL 34X52X14
SEAL, REAR OUTPUT SHAFT

09283-34008-000 0928334008000

$32,97

Unit Price

CIRCLIP PISTON PIN
C-RING, SEC DRIVEN OUTPUT

09381-21002-000 0938121002000

$2,97

Unit Price

C RING
RING, SEC DRIVEN GEAR

09390-50002-000 0939050002000

$4,97

Unit Price

BOLT

07130-06203-000

07130-0620B-000

$4,97

Unit Price

BEARING(25X52X15)
BEARING, FRONT OUTPUT, FR

09262-25003-000 0926225003000

$33,97

Unit Price

WASHER
WASHER, OUTPUT SHAFT GE

08211-22365-000 0821122365000

$7,97

Unit Price

CIRCLIP

08331-31256-000

08331-31259-000

$3,97

Unit Price

CIRCLIP

08331-41526-000

08331-41529-000

$6,97

Unit Price

CLAMP

09402-00512-000 0940200512000

$23,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of KINGQUAD. Let us know if you have any questions.
