Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI KINGQUAD 700 2007

CRANKCASE COVER

Item numbers

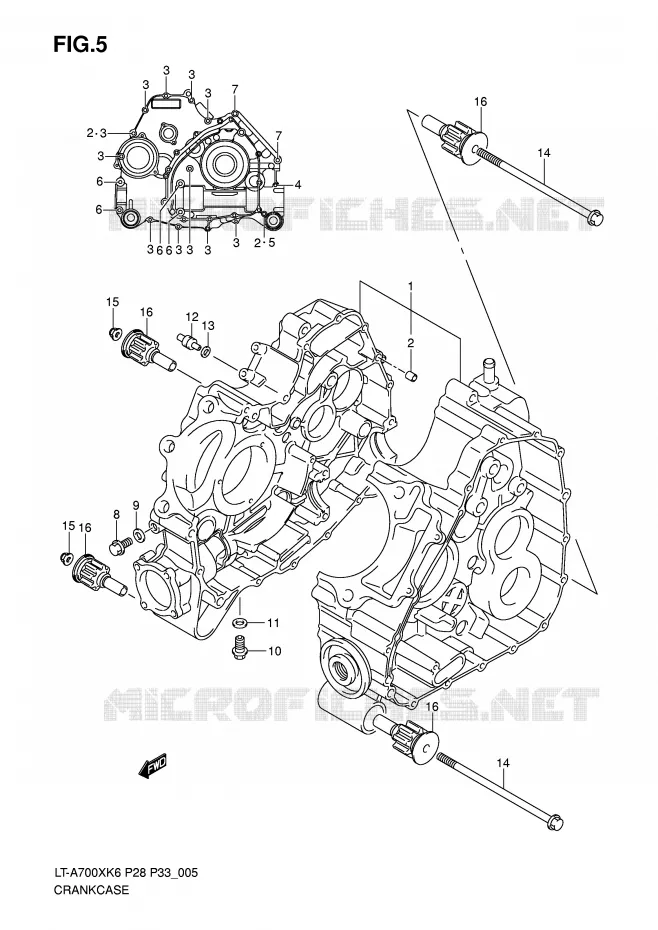

CRANKCASE Suzuki QUAD 700 KINGQUAD 2007 LT-A700XK7(P28/P33)
1
2
2
2
3
3
3
3
3
3
3
3
3
3
3
4
5
6
6
6
6
7
7
8
9
10
11
12
13
14
14
15
15
16
16
16
16
1
CRANKCASE SET

11300-31810-000  

11300-31811-000
 1130031810000

Unit Price

2
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

3
BOLT

01547-06503-000  

01547-0650A-000
 0154706503000

Unit Price

4
BOLT

01547-06803-000  

01547-0680B-000
 0154706803000

Unit Price

5
BOLT

01547-06903-000  

01547-0690B-000
 0154706903000

Unit Price

6
BOLT

01550-08503-000  

01550-0850A-000
 0155008503000

Unit Price

7
BOLT

01550-08753-000  

01550-0875B-000
 0155008753000

Unit Price

8
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

9
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

10
PLUG, T.D.C.
PLUG, OIL DRAIN

09247-12104-000   0924712104000

0924712104000

Unit Price

11
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
12
JET,OIL GALLERY<br />JET, T/M OIL GALLERY
JET, OIL GALLERY
JET, T/M OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

13
O-RING
O-RING

09280-04004-000   0928004004000

0928004004000

Unit Price

14
BOLT, ENG MTG, L195
BOLT, ENG MTG (L:195)

09103-10118-000   0910310118000

0910310118000

Unit Price

15
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

16
BUSH, ENGINE MOUNTING

11651-31G00-000  

11651-31G10-000
 1165131G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 700 KINGQUAD 2007

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 700 KINGQUAD 2007

Select your Suzuki 2007 model

700 KINGQUAD 2007 LT-A700XK7(P28/P33)

Suzuki KINGQUAD

Displacement: 700 cc
Year: 2007
Model code LT-A700XK7(P28 / P33)
