SPEEDOMETER

HEADLIGHT FOR SUZUKI DR 750 1988

INDICATORS

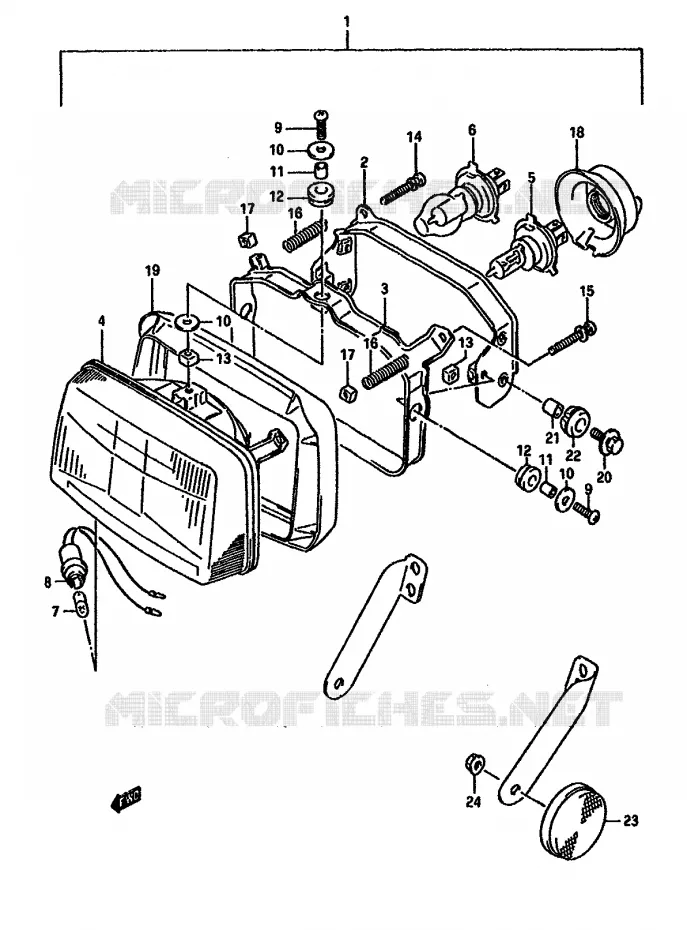

HEADLIGHT Suzuki MOTO 750 DR 1988 DR750SJ(J/K)
1
HEADLAMP ASSY

35100-44B10-999   3510044B10999

3510044B10999
Not available
1
HEADLAMP ASSY

35100-44B30-000   3510044B30000

3510044B30000
Not available
2
HOUSING

35141-44B00-000   3514144B00000

3514144B00000
Not available
3
RING

35130-44B00-000   3513044B00000

3513044B00000
Not available
4
UNIT, LAMP

35121-44B30-000   3512144B30000

3512144B30000
Not available
5
BULB(12V, 5W)
BULB (12V, 60/55W)

09471-12060-000  

0947112060000
Not available
6
09471-12144
BULB (12V, 50/55W)

09471-12061-000  

0947112061000
Not available
7
BULB (12V, 4W)

09471-12063-000  

0947112063000
Not available
8
SOCKET

36118-44B00-000   3611844B00000

3611844B00000
Not available
9
SCREW

35151-44B20-000  

35151-31D00-000
 3515144B20000

Unit Price

10
WASHER(5.5X18X1)

35138-45230-000  

09160-05045-000
 3513845230000

Unit Price

11
SPACER

35133-45230-000   3513345230000

3513345230000

Unit Price

12
CUSHION

35139-45230-000   3513945230000

3513945230000

Unit Price

13
NUT
NUT

35135-45900-000   3513545900000

3513545900000

Unit Price

14
SCREW

35151-44B00-000   3515144B00000

3515144B00000
Not available
15
SCREW

35151-44B10-000   3515144B10000

3515144B10000
Not available
16
SPRING

35154-44B00-000   3515444B00000

3515444B00000
Not available
17
NUT

35135-44B00-000   3513544B00000

3513544B00000
Not available
18
COVER, SOCKET
COVER

35173-01440-000   3517301440000

3517301440000

Unit Price

19
SHADE

35129-44B00-000   3512944B00000

3512944B00000
Not available
20
BOLT

09116-06011-000   0911606011000

0911606011000
Not available
21
SPACER

09180-06030-000  

09180-06310-000
 0918006030000

Unit Price

22
CUSHION

09320-09018-000   0932009018000

0932009018000

Unit Price

23
REFLECTOR,REFLEX FR<br />REFLEX REFLECTOR,FRONT SIDE
REFLECTOR, REFLEX FR
REFLEX REFLECTOR, FRONT SIDE

35950-14A00-000   3595014A00000

3595014A00000

Unit Price

24
NUT

08316-26058-000   0831626058000

0831626058000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Suzuki DR 750 S of DR. Let us know if you have any questions.
