CYLINDER

CRANKCASE FOR SUZUKI DR 750 1989

CRANKCASE COVER

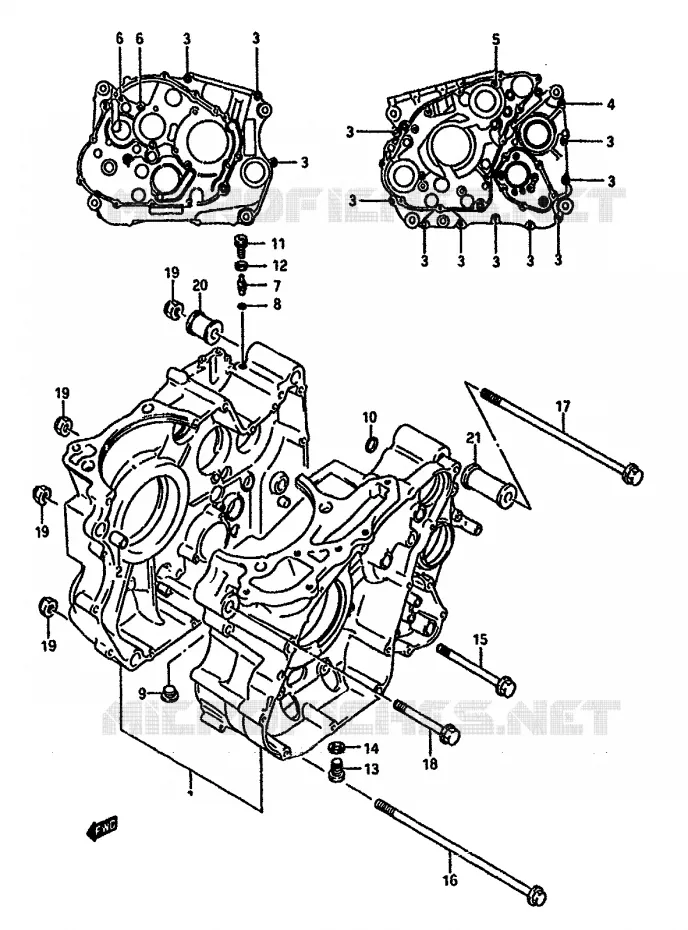

CRANKCASE Suzuki MOTO 750 DR 1989 DR750SK(J/K)
1
CRANKCASE SET

11301-44810-000   1130144810000

1130144810000
Not available
2
PIN

09206-13001-000  

04211-13189-000
 0920613001000

Unit Price

3
BOLT,6X40<br />BOLT
BOLT, 6X40
BOLT

01547-06407-000   0154706407000

0154706407000

Unit Price

4
BOLT

01547-06607-000   0154706607000

0154706607000

Unit Price

5
BOLT

01547-06657-000  

01547-0665B-000
 0154706657000

Unit Price

6
BOLT,6X75<br />BOLT
BOLT, 6X75
BOLT

01547-06757-000   0154706757000

0154706757000

Unit Price

7
JET(12)
JET, OIL, NO.1

09493-24009-000   0949324009000

0949324009000

Unit Price

8
O RING<br />O RING,OIL JET
O RING
O RING, OIL JET

09280-04004-000   0928004004000

0928004004000

Unit Price

9
PLUG, OIL GALLERY

09248-16004-000   0924816004000

0924816004000
Not available
10
O RING, OIL GALLERY

09280-11004-000   0928011004000

0928011004000
Not available
11
BOLT

07110-08128-000  

07130-08127-000
 0711008128000

Unit Price

12
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

13
BOLT

01107-12208-000  

01500-1220B-000
 0110712208000

Unit Price

14
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
15
BOLT(10X130)

09103-10065-000  

09103-10237-000
 0910310065000

Unit Price

16
BOLT (10X215)

09103-10190-000   0910310190000

0910310190000
Not available
17
BOLT(10X230)

09103-10099-000  

09103-10238-000
 0910310099000

Unit Price

18
BOLT (10X70)

09103-10051-000   0910310051000

0910310051000
Not available
19
NUT

09159-10047-000   0915910047000

0915910047000

Unit Price

20
SPACER (L:32)

11610-17600-000   1161017600000

1161017600000
Not available
21
DISCONTINUE
SPACER (L:60)

11610-14A10-000   1161014A10000

1161014A10000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki DR 750 S of DR. Let us know if you have any questions.
