RADIATOR (GSR750AUEL2 E21)

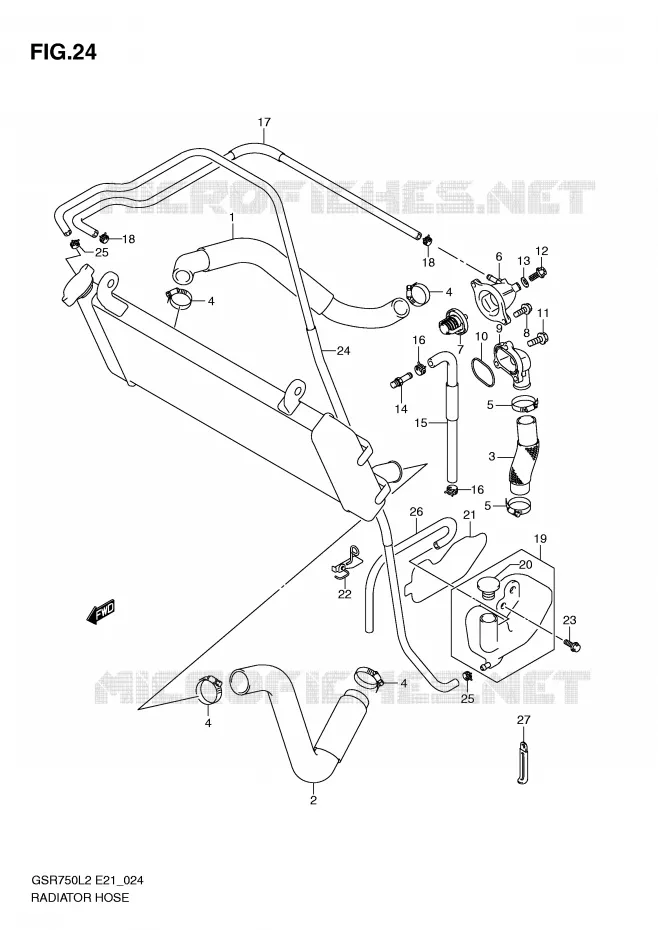

RADIATOR HOSE - EXPANSION TANK FOR SUZUKI GSR 750 2012

ANTI POLLUTION SYSTEM

Item numbers

HOSE, RADIATOR INLET

17851-08J00-000 1785108J00000

$53,97

Unit Price

HOSE, RADIATOR OUTLET

17852-08J00-000 1785208J00000

Not available

HOSE, CYLINDER INLET

17853-35F10-000 1785335F10000

$30,97

Unit Price

CLAMP, WATER HOSE
CLAMP

09402-35501-000 0940235501000

$12,97

Unit Price

CLAMP

09402-38512-000 0940238512000

$20,97

Unit Price

COVER, THERMOSTAT

17661-35F00-000 1766135F00000

$46,97

Unit Price

THERMOSTAT, WATER 82 DEG
THERMOSTAT, WATER

17670-76G00-000 1767076G00000

$32,97

Unit Price

BOLT

01547-0620A-000 015470620A000

$3,97

Unit Price

CONNECTOR, CYLINDER WATER INLET

17861-08J00-000 1786108J00000

$37,97

Unit Price

O RING, CYL WATER CONNECTOR
O RING

17863-33E00-000 1786333E00000

$6,97

Unit Price

BOLT

01547-0620A-000 015470620A000

$3,97

Unit Price

UNION BOLT, AIR VENT
BOLT, THERMOSTAT COVER AIR

17568-50F00-000 1756850F00000

$7,97

Unit Price

GASKET(6.4X11.5X0.84)
GASKET (6.4X11.5X0.8)

09168-06026-000 0916806026000

$4,97

Unit Price

UNION

09362-09011-000 0936209011000

$13,97

Unit Price

HOSE, WATER BYPASS

17854-08J00-000 1785408J00000

$23,97

Unit Price

CLIP

09401-12409-000

09401-12414-000

$6,97

Unit Price

HOSE, WATER AIR BLEED

17855-08J00-000 1785508J00000

$17,97

Unit Price

(CA)CLIP
CLIP

09401-10409-000 0940110409000

$3,97

Unit Price

TANK ASSY, RESERVOIR

17910-08J00-000 1791008J00000

$70,97

Unit Price

CAP, RESERVOIR TANK
CAP

17931-02FA0-000 1793102FA0000

$8,97

Unit Price

SHIELD, RSVR TANK HEAT
SHIELD, RESERVIOR TANK HEAT

17912-08J00-000 1791208J00000

$10,97

Unit Price

PLATE, RESERVOIR TANK CAP

17914-08J00-000 1791408J00000

$14,97

Unit Price

BOLT
BOLT (6X12)

09111-06085-000 0911106085000

$7,97

Unit Price

HOSE, RESERVOIR TANK INLET

17981-08J00-000 1798108J00000

$31,97

Unit Price

CLIP

09401-08411-000

Not available

HOSE, RESERVOIR TANK INLET
HOSE, OVER FLOW

17981-19F00-000 1798119F00000

$17,97

Unit Price

CLAMP(L:80)

09404-06433-000

09404-06036-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE - EXPANSION TANK of your Suzuki GSR 750 of GSR. Let us know if you have any questions.
