FOOTREST

FAIRING FOR SUZUKI GSR 750 2012

FAIRING

Item numbers

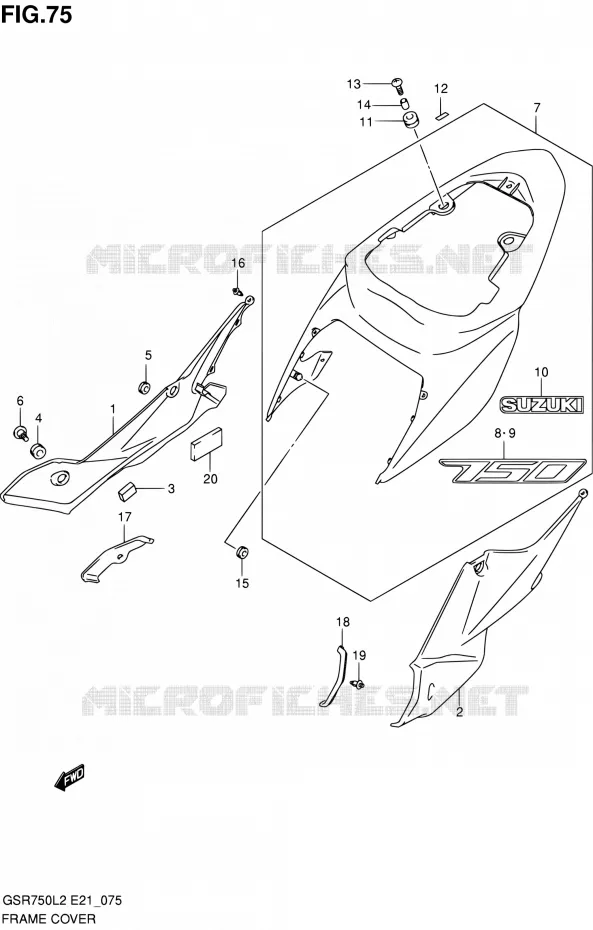

FAIRING Suzuki MOTO 750 GSR 2012 GSR750L2(E24)
1
2
3
4
5
6
7
7
11
12
13
14
15
16
17
18
19
20
1
47511-08J01-291
COVER, FRAME RH (BLACK)

47511-08J00-291   4751108J00291

4751108J00291
Not available
2
47611-08J01-291
COVER, FRAME LH (BLACK)

47611-08J00-291   4761108J00291

4761108J00291
Not available
3
CUSHION(20X30X8)
CUSHION

94422-06G00-000   9442206G00000

9442206G00000

Unit Price

4
CUSHION
CUSHION

09320-09016-000   0932009016000

0932009016000

Unit Price

5
CUSHION, FRAME COVER FR
CUSHION

47113-37H00-000   4711337H00000

4711337H00000

Unit Price

6
SCREW(6X20)
SCREW, FRAME COVER FRONT

47118-08J00-000   4711808J00000

4711808J00000

Unit Price

7
COVER, FRAME CENTER (BLACK)

47310-08J00-YVB   4731008J00YVB

4731008J00YVB
Not available
7
COVER, FRAME CENTER (WHITE)

47310-08J00-YWW   4731008J00YWW

4731008J00YWW
Not available
11
CUSHION(10X24X13)

47312-37H00-000  

47312-37H10-000
 4731237H00000

Unit Price

12
TAPE, SEAT TAIL
TAPE

94443-06G00-000   9444306G00000

9444306G00000

Unit Price

13
SCREW<br />SCREW (6X20)
SCREW
SCREW (6X20)

09136-06105-000   0913606105000

0913606105000

Unit Price

14
SPACER (6.5X10X7)
SPACER (6.5X10X7)

09180-06283-000   0918006283000

0918006283000

Unit Price

15
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08018-000  

09320-08513-000
 0932008018000

Unit Price

16
CLIP (BLACK)
CLIP (BLACK)

09409-06314-5PK   09409063145PK

09409063145PK

Unit Price

17
COVER, FRAME TOP RH

47711-08J00-000   4771108J00000

4771108J00000

Unit Price

18
COVER, FRAME TOP LH

47811-08J00-000   4781108J00000

4781108J00000

Unit Price

19
CLIP

09409-07333-000   0940907333000

0940907333000

Unit Price

20
33652-20C01

33652-21G10-000  

3365221G10000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING of your Suzuki GSR 750 of GSR. Let us know if you have any questions.

Genuine parts for Suzuki 750 GSR 2012
