CRANKSHAFT

STARTER MOTOR CLUTCH FOR SUZUKI GSR 750 2013

CAMSHAFT - VALVES SEE NOTE

Item numbers

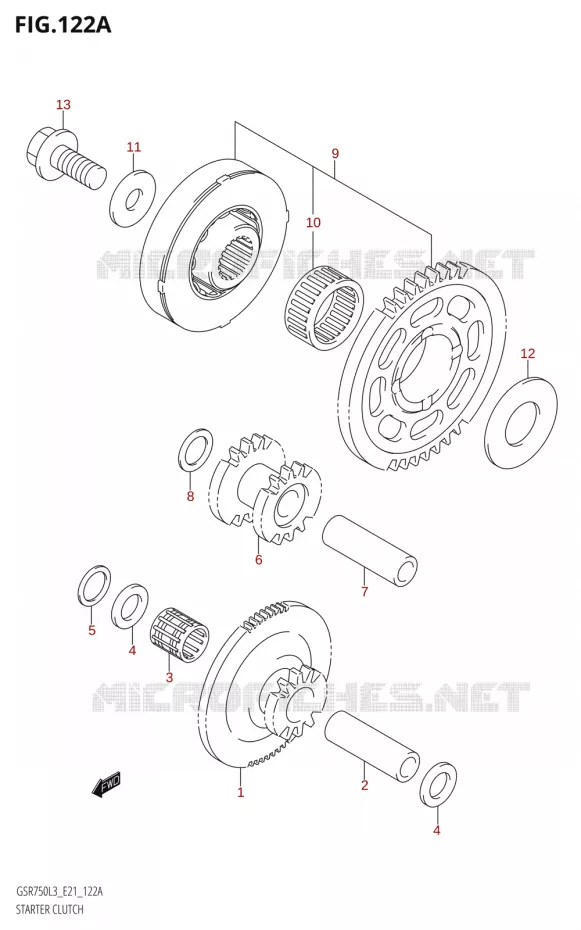

STARTER MOTOR CLUTCH Suzuki MOTO 750 GSR 2013 GSR750A L3 (E21)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
1
GEAR, STARTER IDLE NO.1
GEAR, STARTER IDLE, NO.1(NT:13/70)

12611-40F00-000   1261140F00000

1261140F00000

Unit Price

2
PIN,PISTON
PIN, PISTON

12151-09204-000   1215109204000

1215109204000

Unit Price

3
BEARING<br />BEARING(12X16X16)
BEARING
BEARING(12X16X16)

09263-12023-000   0926312023000

0926312023000

Unit Price

4
WASHER,THRUST<br />SHIM(12X20X1)
WASHER, THRUST
SHIM(12X20X1)

09181-12167-000   0918112167000

0918112167000

Unit Price

5
WASHER,WAVE<br />WASHER(37.3X52X1)
WASHER, WAVE
WASHER(37.3X52X1)

09164-12021-000   0916412021000

0916412021000

Unit Price

6
GEAR, STARTER IDLE NO.2
GEAR, STARTER IDLE, NO.2(NT:15/17)

12612-40F00-000   1261240F00000

1261240F00000

Unit Price

7
PIN,PISTON
PIN, PISTON

12151-09204-000   1215109204000

1215109204000

Unit Price

8
WASHER,WAVE<br />WASHER(37.3X52X1)
WASHER, WAVE
WASHER(37.3X52X1)

09164-12021-000   0916412021000

0916412021000

Unit Price

9
CLUTCH SET, STARTER
CLUTCH SET, STARTER(NT:44)

12600-40831-000   1260040831000

1260040831000

Unit Price

10
.BEARING(26X31X16)

09263-26035-000   0926326035000

0926326035000

Unit Price

11
WASHER

08211-10285-000   0821110285000

0821110285000

Unit Price

12
WASHER
WASHER

08211-20403-000   0821120403000

0821120403000

Unit Price

13
BOLT(10X23)
BOLT(10X23)

09103-10189-000   0910310189000

0910310189000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR CLUTCH of your Suzuki GSR 750 ABS of GSR. Let us know if you have any questions.
