CYLINDER HEAD

CASING FOR SUZUKI GSR 750 2014

CASING

Item numbers

CRANKCASE SET
CRANKCASE ASSY

11300-08810-000 1130008810000

$4 509,97

Unit Price

PIN, CRANKCASE
.PIN

11319-33E50-000 1131933E50000

$8,97

Unit Price

.BOLT (8X120)

09106-08139-000 0910608139000

$20,97

Unit Price

GASKET
.GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

.BOLT

01547-0640A-000 015470640A000

$3,97

Unit Price

.BOLT

01547-0680A-000 015470680A000

$3,97

Unit Price

.BOLT (9X95)

09103-09012-000 0910309012000

$14,97

Unit Price

.BOLT

01547-0640A-000 015470640A000

$3,97

Unit Price

.BOLT

07120-0865A-000 071200865A000

$6,97

Unit Price

.BOLT

01547-0630A-000 015470630A000

$3,97

Unit Price

.BOLT

01547-0640A-000 015470640A000

$3,97

Unit Price

BOLT

01547-0660A-000

01547-0660B-000

$4,97

Unit Price

.BOLT

01547-0670A-000 015470670A000

$4,97

Unit Price

GASKET
.GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

.GASKET (8.2X14X1)

09168-08016-000 0916808016000

$2,97

Unit Price

.GASKET (8.2X14X1)

09168-08016-000 0916808016000

$2,97

Unit Price

UNION, OIL STAND
.UNION, OIL FILTER STAND

16591-06B01-000 1659106B01000

$10,97

Unit Price

BEARING, CRANK THRUST(GREEN)
.BEARING, THRUST RH (GREEN)

12228-17E00-0D0 1222817E000D0

$14,97

Unit Price

BEARING, CRANK THRUST(RED)
.BEARING, THRUST LH (RED)

12228-17E00-0A0 1222817E000A0

$14,97

Unit Price

BEARING, CRANK THRUST
.BEARING, THRUST LH (BLACK)

12228-17E00-0B0 1222817E000B0

$14,97

Unit Price

BEARING, CRANK THRUST(BLUE)
.BEARING, THRUST LH (BLUE)

12228-17E00-0C0 1222817E000C0

$14,97

Unit Price

BEARING, CRANK THRUST(GREEN)
.BEARING, THRUST LH (GREEN)

12228-17E00-0D0 1222817E000D0

$14,97

Unit Price

BEARING, CRANK THRUST(YELLOW)
.BEARING, THRUST LH (YELLOW)

12228-17E00-0E0 1222817E000E0

$14,97

Unit Price

BEARING, CRANK THRUST(WHITE)
.BEARING, THRUST LH (WHITE)

12228-17E00-0F0 1222817E000F0

$11,97

Unit Price

.PLUG, WATER JACKET

11318-35F00-000 1131835F00000

$19,97

Unit Price

.O RING (D:3.1, ID:19.4)

09280-20002-000 0928020002000

$3,97

Unit Price

JET, PISTON COOLING

11390-35F00-000 1139035F00000

$29,97

Unit Price

O RING
O RING (D:1.2, ID:4)

09280-04004-000 0928004004000

$2,97

Unit Price

BOLT (6X12)

09106-06075-000 0910606075000

$3,97

Unit Price

GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000 0916816002000

$2,97

Unit Price

PLUG, OIL GALL NO.1
PLUG

09248-16013-000 0924816013000

$7,97

Unit Price

PLUG, OIL GALL
PLUG (10X10)

09248-10010-000 0924810010000

$6,97

Unit Price

CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000 0916810002000

$2,97

Unit Price

O RING (D:1.9, ID:7.8)

09280-08012-000 0928008012000

$6,97

Unit Price

JET, 140

09493-28012-000 0949328012000

$23,97

Unit Price

COVER, BREATHER

11370-44G00-000 1137044G00000

$79,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

BOLT (10X175)

09103-10458-000 0910310458000

$42,97

Unit Price

BOLT, L:255
BOLT (10X255)

09103-10137-000 0910310137000

$17,97

Unit Price

NUT

09159-10115-000 0915910115000

$5,97

Unit Price

NUT

09159-10123-000 0915910123000

$33,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

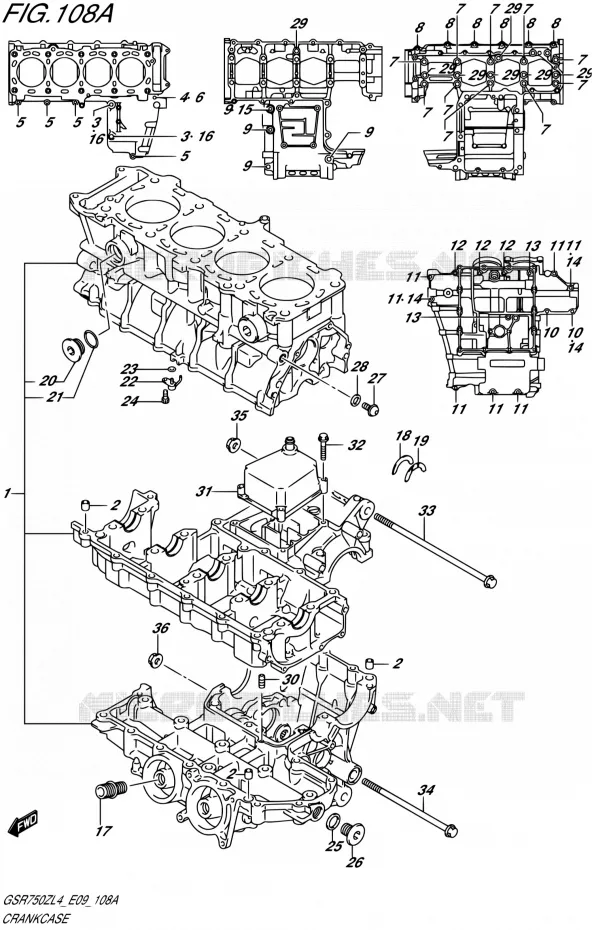

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki GSR 750 of GSR. Let us know if you have any questions.
