LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI GSR 750 2014

STEERING COLUMN

Item numbers

DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK, R

51103-08J00-000

Not available

TUBE, INNER, R

51110-08J00-000

51110-08J01-000

$1 148,97

Unit Price

.WASHER

51158-05A00-000 5115805A00000

$8,97

Unit Price

.SEAL, OIL

51153-10G50-000 5115310G50000

$19,97

Unit Price

.RING, OIL SEAL STOPPER

51156-49440-000 5115649440000

$7,97

Unit Price

.SEAL, DUST

51173-14F00-000 5117314F00000

$20,97

Unit Price

.CYLINDER

51146-08J00-000 5114608J00000

$241,97

Unit Price

.NUT, ROD

51352-13A60-000 5135213A60000

$3,97

Unit Price

.SPRING

51171-08J00-000 5117108J00000

$136,97

Unit Price

WASHER
.GUIDE, SPRING

51158-40F30-000 5115840F30000

$12,97

Unit Price

.SPACER, SPRING

51176-40F30-000 5117640F30000

$18,97

Unit Price

.TUBE, OUTER

51130-08J00-000 5113008J00000

$724,97

Unit Price

.CAP

51351-08J00-000 5135108J00000

$171,97

Unit Price

.O-RING

51117-39G20-000 5111739G20000

$6,97

Unit Price

.SEAT, SPRING

51178-08J00-000 5117808J00000

$19,97

Unit Price

DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK, L

51104-08J00-000

51104-08J01-000

TUBE, INNER, L

51120-08J00-000

51120-08J01-000

$958,97

Unit Price

.WASHER

51158-05A00-000 5115805A00000

$8,97

Unit Price

.SEAL, OIL

51153-10G50-000 5115310G50000

$19,97

Unit Price

.RING, OIL SEAL STOPPER

51156-49440-000 5115649440000

$7,97

Unit Price

.SEAL, DUST

51173-14F00-000 5117314F00000

$20,97

Unit Price

.CYLINDER

51146-08J00-000 5114608J00000

$241,97

Unit Price

.NUT, ROD

51352-13A60-000 5135213A60000

$3,97

Unit Price

.SPRING

51171-08J00-000 5117108J00000

$136,97

Unit Price

WASHER
.GUIDE, SPRING

51158-40F30-000 5115840F30000

$12,97

Unit Price

.SPACER, SPRING

51176-40F30-000 5117640F30000

$18,97

Unit Price

.TUBE, OUTER

51130-08J00-000 5113008J00000

$724,97

Unit Price

.CAP

51351-08J00-000 5135108J00000

$171,97

Unit Price

.O-RING

51117-39G20-000 5111739G20000

$6,97

Unit Price

.SEAT, SPRING

51178-08J00-000 5117808J00000

$19,97

Unit Price

BOLT
BOLT(8X40)

51166-40H20-000 5116640H20000

$7,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

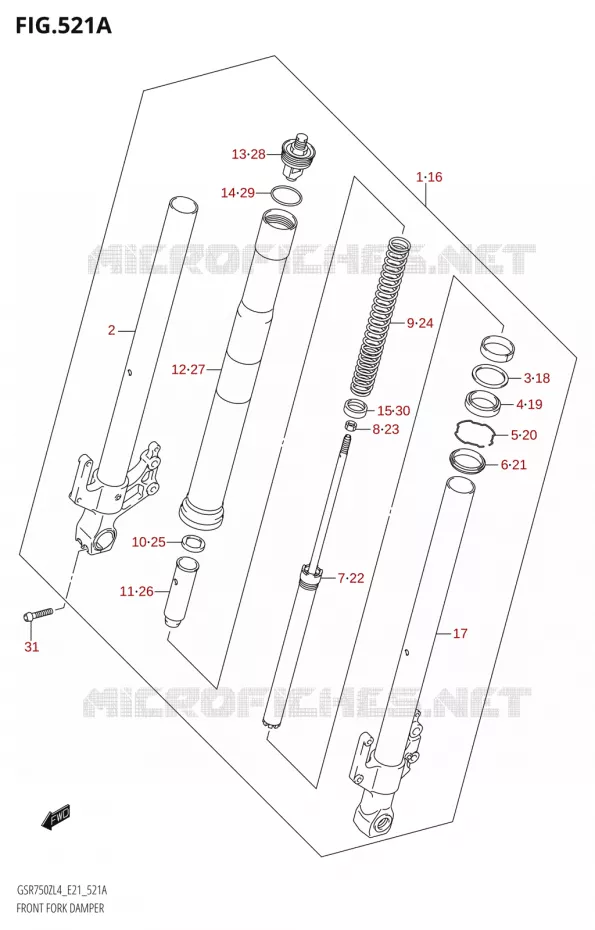

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki GSR 750 ABS SPECIAL EDITION of GSR. Let us know if you have any questions.
