CYLINDER * ENGINE GASKET SET : SEE FIG. 87 (L-13).

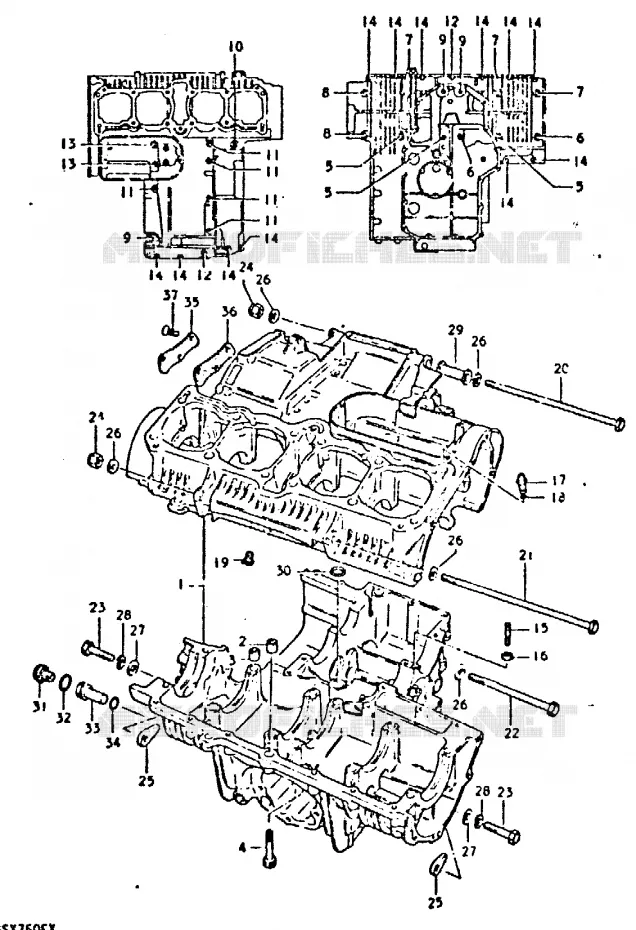

CRANKCASE FOR SUZUKI GSX-E 750 1981

CRANKCASE COVER

CRANKCASE SET

11300-45830-000 1130045830000

Not available

CLUTCH COVER PI **S1
PIN

09206-13004-000 0920613004000

$3,97

Unit Price

PIN, 11 X20

09206-11005-000

09206-11017-000

$12,97

Unit Price

.BOLT (8*60)

09106-08015-000 0910608015000

Not available

BOLT CRANKCASE *S1
BOLT (8*140)

09103-08040-000 0910308040000

$7,97

Unit Price

BOLT, 8X110

09103-08024-000

09103-08122-000

$6,97

Unit Price

BOLT

01517-08958-000

01550-08957-000

$7,97

Unit Price

BOLT

01517-08708-000

01550-08707-000

$6,97

Unit Price

BOLT

01517-08658-000

01550-08657-000

$6,97

Unit Price

BOLT

01517-08958-000

01550-08957-000

$7,97

Unit Price

.BOLT (6*80)

01517-06808-000 0151706808000

Not available

BOLT

01517-06308-000 0151706308000

Not available

BOLT

01517-06458-000

01550-06457-000

$4,97

Unit Price

BOLT

01517-06408-000

01550-06407-000

$4,97

Unit Price

DISCONTINUE
STUD BOLT

01421-06358-000

Not available

NUT, CENTER

08316-16068-000 0831616068000

Not available

JET
JET, OIL GALLERY CYLINDER

09493-24008-000

Not available

.O RING

09280-03001-000 0928003001000

Not available

JET, OIL GALLERY MISSION

09493-24005-000 0949324005000

Not available

BOLT (10*230)

09100-10140-000 0910010140000

Not available

DISCONTINUE

09101-10010-000

Not available

BOLT(10X165)
BOLT (10*165)

09100-10078-000 0910010078000

$20,97

Unit Price

BOLT

01107-10608-000

01500-10603-000

$7,97

Unit Price

NUT

09159-10011-000 0915910011000

$6,97

Unit Price

ENGINE MOUNT NUT N02
NUT

09159-10020-000 0915910020000

$10,97

Unit Price

WASHER, LOWER LH

08322-11108-000 0832211108000

Not available

REAR SPENSION WASHER
WASHER

09160-10005-000 0916010005000

$2,97

Unit Price

.LOCK WASHER

08321-21108-000 0832121108000

Not available

SPACER

11010-49000-000 1101049000000

Not available

KICK GEAR O RING
O RING, OIL GALLERY

09280-13001-000 0928013001000

$6,97

Unit Price

PLUG
PLUG, OIL GALLERY

09247-18001-000 0924718001000

$10,97

Unit Price

SEAL NUT O RING
O RING

09280-18004-000 0928018004000

$8,97

Unit Price

11329-45400-000 1132945400000

Not available

O RING(D:1.9, ID:9.8)

09280-10005-000

09280-10016-000

$5,97

Unit Price

DISCONTINUE
CAP, OIL GALLERY

11394-45000-000 1139445000000

Not available

DISCONTINUE

11497-45000-000

Not available

.SCREW

02122-06168-000 0212206168000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki GSX-E 750 of GSX-E. Let us know if you have any questions.
