STARTER MOTOR CLUTCH

CAM SHAFT - VALVE FOR SUZUKI GSX-E 750 1984

TIMING

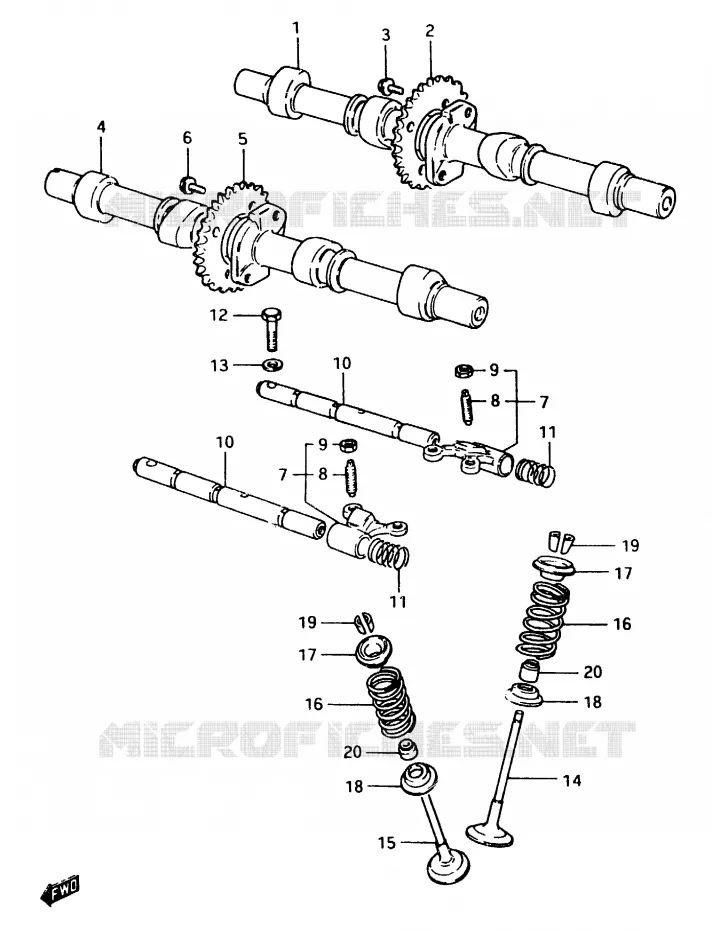

CAM SHAFT - VALVE Suzuki MOTO 750 GSX-E 1984 GSX750EE(D/E)
1
REORDER BRAN BARDSLEY

12711-31300-000   1271131300000

1271131300000
Not available
2
SPROCKET, INTAKE CAM SHAFT

12741-34201-000   1274134201000

1274134201000
Not available
3
BOLT(7X11)<br />BOLT
BOLT(7X11)
BOLT

09103-07001-000   0910307001000

0910307001000

Unit Price

4
CAM SHAFT SET, EXHAUST

12721-31300-000   1272131300000

1272131300000
Not available
5
SPROCKET, EXHAUST CAM SHAFT

12751-31300-000   1275131300000

1275131300000
Not available
6
BOLT(7X11)<br />BOLT
BOLT(7X11)
BOLT

09103-07001-000   0910307001000

0910307001000

Unit Price

7
DISCONTINUED

12840-45410-000   1284045410000

1284045410000
Not available
8
SCREW, TAPPET ADJUSTING

12842-49210-000  

12842-49201-000
 1284249210000

Unit Price

9
.NUT

12843-49210-000   1284349210000

1284349210000
Not available
10
DISCONTINUE<br />SHAFT, VALVE ROCKER ARM
DISCONTINUE
SHAFT, VALVE ROCKER ARM

12860-31300-000   1286031300000

1286031300000
Not available
11
SPRING
SPRING

09440-13014-000   0944013014000

0944013014000

Unit Price

12
BOLT FIG.48 (G-10) : GSX1100XD/EXD FIG.49 (G-11) : GSX1100ESD

01107-06308-000   0110706308000

0110706308000
Not available
13
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
14
DISCONTINUE
VALVE, INTAKE

12911-31300-000   1291131300000

1291131300000
Not available
15
DISCONTINUED

12912-31300-000   1291231300000

1291231300000
Not available
16
SPRING, VALVE

12921-11410-000   1292111410000

1292111410000
Not available
17
RETAINER, VALVE SPRING

12931-49200-000  

12931-49201-000
 1293149200000

Unit Price

18
SEAT, VALVE SPRING
SEAT, SPRING

12933-38200-000   1293338200000

1293338200000

Unit Price

19
COTTER, VALVE
COTTER, VALVE

12932-49200-000   1293249200000

1293249200000

Unit Price

20
SEAL, OIL(5.5X11X8.2)

09289-05003-000  

09289-05015-000
 0928905003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT - VALVE of your Suzuki GSX-E 750 of GSX-E. Let us know if you have any questions.
