FRONT FORK (MODEL D) REFER TO FIG.52 (I-4) FOR MODEL E

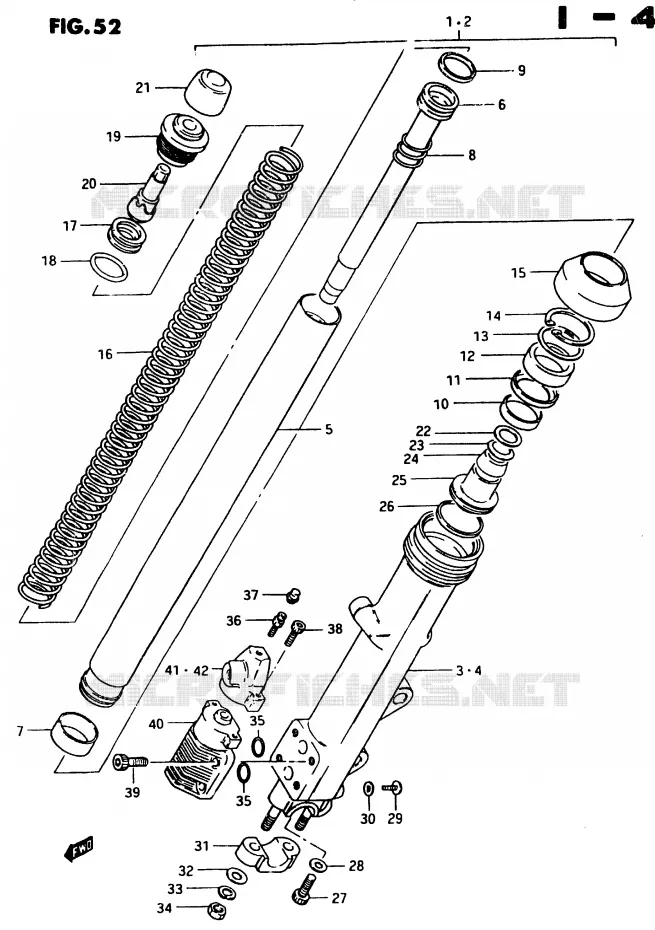

FRONT FORK (MODEL E) FOR SUZUKI GSX-E 750 1984

STEERING COLUMN (MODEL D) REFER TO FIG.54 (I-7) FOR MODEL E

DAMPER ASSY, RH

51103-31315-000 5110331315000

Not available

DAMPER ASSY, LH

51104-31315-000 5110431315000

Not available

R.H.OUTER TUBE

51130-31300-15T 511303130015T

Not available

OUTER TUBE, LH (BLACK)

51140-31300-15T 511403130015T

Not available

INNER TUBE

51110-31315-000 5111031315000

Not available

CYLINDER

51146-31350-000 5114631350000

Not available

DISCONTINUE
PISTON

51121-31300-000 5112131300000

Not available

SPRING REBOUND

51177-34210-000 5117734210000

Not available

DISCONTINUE
RING PISTON

51196-34210-000 5119634210000

Not available

DISCONTINUE
GUIDE BUSH

51152-31300-000 5115231300000

Not available

DISCONTINUED

51168-34210-000 5116834210000

Not available

SEAL, OIL

51153-09310-000

51153-03B30-000

$21,97

Unit Price

DISCONTINUE
RING BACK UP

51158-34320-000 5115834320000

Not available

DISCONTINUE
CIRCLIP INTERNAL

51556-34320-000 5155634320000

Not available

DISCONTINUED

51571-45200-000 5157145200000

Not available

SPRING

51171-31315-000 5117131315000

Not available

SEAT SPRING

51172-34300-000 5117234300000

Not available

DISCONTINUE
O RING

51117-34210-000 5111734210000

Not available

BOLT

51351-34301-000 5135134301000

Not available

ADJUSTER SPRING

51185-45451-000 5118545451000

Not available

DISCONTINUE
CAP

51189-45450-000 5118945450000

Not available

DISCONTINUE
VALVE C

51126-34310-000 5112634310000

Not available

DISCONTINUE
VALVE SPRING

51127-34310-000 5112734310000

Not available

DISCONTINUE
OIL LOCK PIECE VALVE

51125-34310-000 5112534310000

Not available

OIL LOCK PIECE

51195-34370-000 5119534370000

Not available

DISCONTINUE
PISTON RING

51123-34320-000 5112334320000

Not available

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

SCREW

02112-04068-000

02112-0406B-000

$2,97

Unit Price

DISCONTINUE
GASKET

51183-33030-000 5118333030000

Not available

AXLE HOLDER (BLACK)

51132-44040-15T 511324404015T

Not available

WASHER

08322-21085-000 0832221085000

Not available

.LOCK WASHER

08321-21085-000 0832121085000

Not available

.NUT

08310-11085-000 0831011085000

Not available

O-RING D:2.4 ID:15.8

51799-11420-000

Not available

DISCONTINUE
SCREW

51778-11420-000 5177811420000

Not available

DISCONTINUE
BLEEDER CAP

51779-11420-000 5177911420000

Not available

BOLT

51797-34310-000

07130-05167-000

$3,97

Unit Price

BOLT

51796-34310-000

07130-06163-000

$6,97

Unit Price

DISCONTINUE
MODULATOR VALVE SET

51790-31300-000 5179031300000

Not available

MODULATOR PLANGER SET RH

51780-31300-000 5178031300000

Not available

MODULATOR PLANGER SET LH

51770-31300-000 5177031300000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (MODEL E) of your Suzuki GSX-E 750 of GSX-E. Let us know if you have any questions.
