FRAME

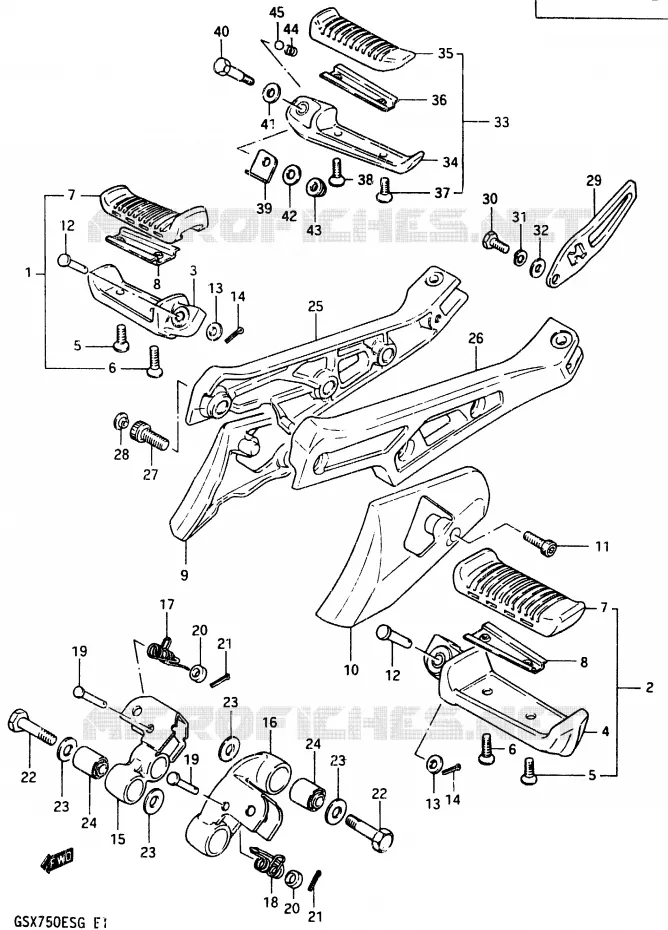

FOOTREST FOR SUZUKI GSX-E 750 1985

FUEL TANK (GSX750ESF / ESG) REFER TO FIG.34 (G-7) FOR GSX750EFF

FOOTREST ASSY, FRONT RH

43501-31300-000 4350131300000

Not available

FOOTREST ASSY, FRONT LH

43502-31300-000 4350231300000

Not available

BAR, FRONT FOOTREST RH

43510-31300-000 4351031300000

Not available

DISCONTINUE
BAR, FRONT FOOTREST LH

43520-31300-000 4352031300000

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

RUBBER, FOOTREST

43551-31300-000

43550-31300-000

$34,97

Unit Price

DISCONTINUE
PLATE, FRONT FOOTREST RUBBER

43580-33301-000 4358033301000

Not available

COVER, FRONT FOOTREST RH

43585-31300-000 4358531300000

Not available

COVER, FRONT FOOTREST LH

43595-31300-000 4359531300000

Not available

BOLT

07110-06205-000

07130-0620B-000

$5,97

Unit Price

FITTING PIN

09200-08034-000

09200-08002-000

$3,97

Unit Price

08322-0108A
WASHER, FRONT

08322-11084-000

Not available

04111-20208-000

04111-2020A-000

$2,97

Unit Price

HOLDER, FOOTREST RH

43530-31300-000 4353031300000

Not available

HOLDER, FOOTREST LH

43540-31300-000 4354031300000

Not available

SPRING, RH

09448-12013-000 0944812013000

Not available

SPRING, LH

09448-12014-000 0944812014000

Not available

09200-06010-000 0920006010000

$3,97

Unit Price

SPACER, 6.5X12X5.5

09180-06074-000

09180-06299-000

$4,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

BOLT

09100-10191-000 0910010191000

Not available

REAR SPENSION WASHER
WASHER

09160-10005-000 0916010005000

$2,97

Unit Price

BUSH

09319-10047-000 0931910047000

$17,97

Unit Price

BRACKET, MUFFLER RH

43811-31300-000 4381131300000

Not available

BRACKET, MUFFLER LH

43821-31300-000 4382131300000

Not available

BOLT

07110-10255-000

07130-10253-000

$7,97

Unit Price

CAP

43575-34500-000 4357534500000

$3,97

Unit Price

FOOT GUARD, REAR

43671-31300-000 4367131300000

Not available

BOLT

01107-08167-000

01500-0816B-000

$4,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

DISCONTINUE
FOOTREST ASSY, PILLION RH

43600-31300-000 4360031300000

Not available

FOOTREST ASSY, PILLION LH

43700-31300-000 4370031300000

Not available

BAR, PILLION FOOTREST RH

43610-45501-000 4361045501000

Not available

BAR, PILLION FOOTREST LH

43710-45501-000 4371045501000

Not available

RUBBER, RR FOOTREST
RUBBER, PILLION FOOTREST

43612-31300-000 4361231300000

$17,97

Unit Price

PLATE, RUBBER STOPPER
PLATE, RUBBER STOP

43632-45501-000 4363245501000

$6,97

Unit Price

SCREW

02132-05127-000

02122-05127-000

$3,97

Unit Price

SCREW

02132-05167-000

02122-05167-000

$3,97

Unit Price

DISCONTINUE
PLATE, SPRING STOP RH

43635-09300-000 4363509300000

Not available

PLATE, SPRING STOP LH

43735-09300-000 4373509300000

Not available

BOLT

09111-06035-000 0911106035000

Not available

DISCONTINUE
SHIM

09181-08004-000 0918108004000

Not available

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

SPRING, STAND GRIP
SPRING

09440-05003-000 0944005003000

$2,97

Unit Price

STEEL BALL

06112-07004-000 0611207004000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki GSX-E 750 of GSX-E. Let us know if you have any questions.
