SWINGARM

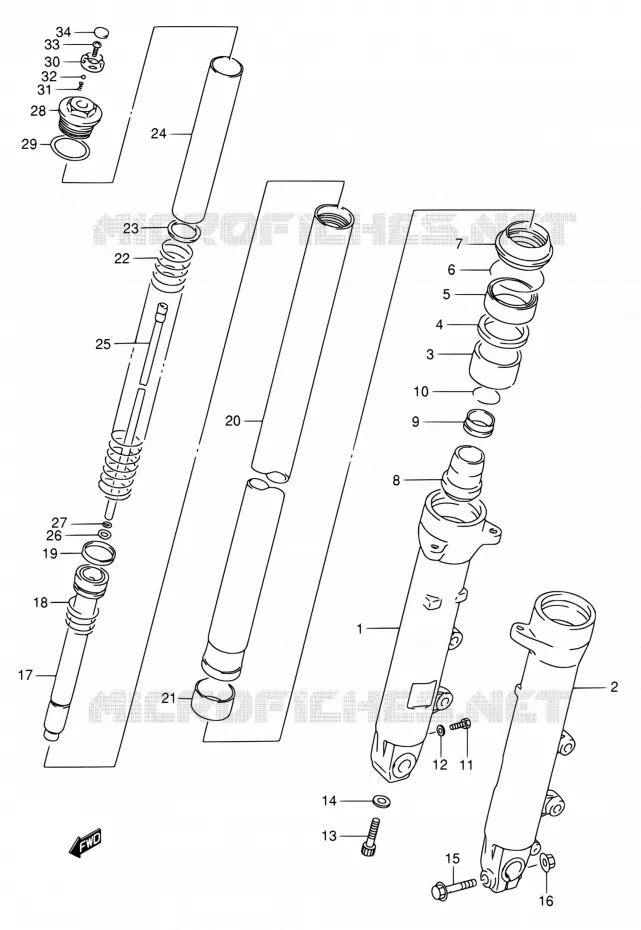

FRONT FORK (MODELE K / L / M / N / P / R) FOR SUZUKI GSX-F 750 1989

STEERING COLUMN

Item numbers

DISCONTINUE

51130-19C10-000

Not available

.TUBE, OUTER RH (SILVER)

51130-19C10-12R 5113019C1012R

Not available

.TUBE, OUTER LH

51140-19C10-000 5114019C10000

Not available

.TUBE, OUTER LH (SILVER)

51140-19C10-12R 5114019C1012R

Not available

.BUSH, GUIDE

51152-48B31-000 5115248B31000

$34,97

Unit Price

.SPACER, SEAL

51168-38B00-000 5116838B00000

$9,97

Unit Price

SEAL, OIL

51153-12C00-000

51153-08D00-000

$22,97

Unit Price

CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

.DUST SEAL

51571-38B00-000 5157138B00000

Not available

DISCONTINUE

51195-19C10-000

Not available

.VALVE, OIL LOCK PIECE

51197-20C10-000 5119720C10000

Not available

.RING, STOPPER

52277-20C10-000 5227720C10000

Not available

BOLT(6X8)
.BOLT

09100-06011-000 0910006011000

$3,97

Unit Price

GASKET, DRAIN, PLUG
.GASKET

51183-31030-000 5118331030000

$7,97

Unit Price

BOLT(8X27)
.BOLT, LOWER

51147-48130-000 5114748130000

$6,97

Unit Price

.GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

BOLT
.BOLT, LH

01550-08507-000 0155008507000

$5,97

Unit Price

.NUT

08316-10087-000 0831610087000

$3,97

Unit Price

DISCONTINUE
.PIPE, SEAT UNDER

51194-20C00-000 5119420C00000

Not available

.PIPE, SEAT UNDER

51194-20C10-000 5119420C10000

Not available

DISCONTINUE
.SPRING, REBOUND

51177-48B31-000 5117748B31000

Not available

DISCONTINUE
.RING, PISTON

51196-19C00-000 5119619C00000

Not available

.TUBE, INNER

51110-20C00-000 5111020C00000

Not available

51121-44H00
.BUSH, SLIDE

51121-48B31-000 5112148B31000

Not available

DISCONTINUE
.SPRING, MAIN

51171-20C00-000 5117120C00000

Not available

.JOINT, SPRING

51192-19C00-000 5119219C00000

$5,97

Unit Price

DISCONTINUE
.SPACER, SPRING

51176-34C00-000 5117634C00000

Not available

DISCONTINUE
.ROD, INNER

52111-19C10-000 5211119C10000

Not available

DISCONTINUE
.WASHER

51354-19C10-000 5135419C10000

Not available

O RING
.O RING, ROD

51117-19C10-000 5111719C10000

$5,97

Unit Price

DISCONTINUE
.BOLT, FORK

51351-20C00-000 5135120C00000

Not available

O RING
.O RING, BOLT

51117-12C00-000 5111712C00000

$5,97

Unit Price

DISCONTINUE
.PLATE, ADJUSTER

52193-19C10-000 5219319C10000

Not available

DISCONTINUE
.SPRING

51118-19C10-000 5111819C10000

Not available

.BALL

51835-17C00-000 5183517C00000

$3,97

Unit Price

DISCONTINUE
.SCREW

51188-19C10-000 5118819C10000

Not available

DISCONTINUE
.CAP

51189-19C10-000 5118919C10000

Not available
