Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEVERS - HANDGRIPS

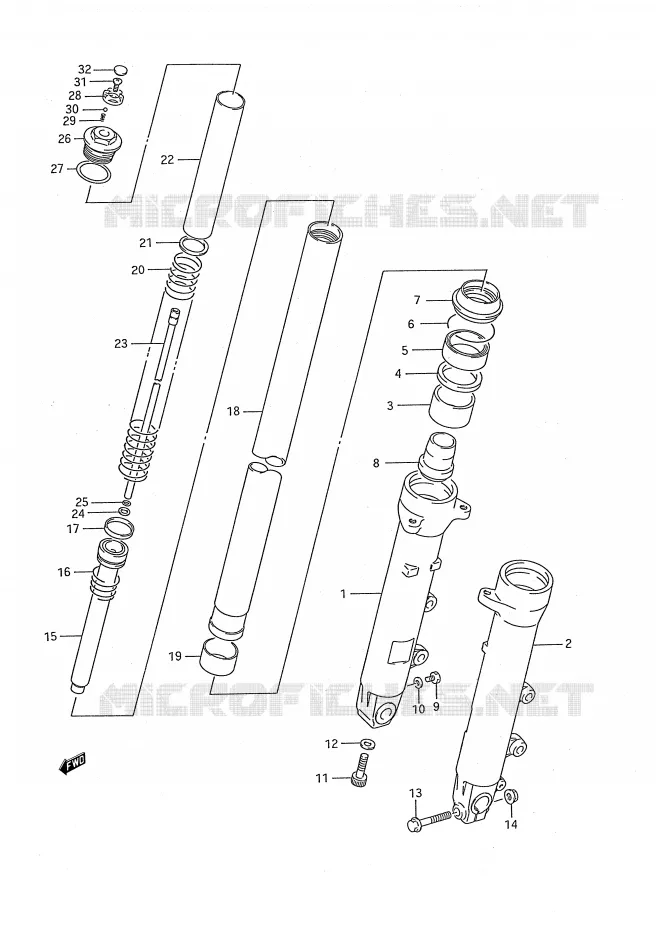

FRONT FORK FOR SUZUKI GSX-F 750 1990

STEERING COLUMN

Item numbers

DISCONTINUE

51130-19C10-000

Not available

TUBE, OUTER RH (SILVER)

51130-19C10-12R 5113019C1012R

Not available

DISCONTINUE
TUBE, OUTER RH (SILVER)

51130-19C10-13L 5113019C1013L

Not available

.TUBE, OUTER LH

51140-19C10-000 5114019C10000

Not available

TUBE, OUTER LH (SILVER)

51140-19C10-12R 5114019C1012R

Not available

DISCONTINUE
TUBE, OUTER LH (SILVER)

51140-19C10-13L 5114019C1013L

Not available

BUSH, GUIDE

51152-48B31-000 5115248B31000

$30,97

Unit Price

SPACER, SEAL

51168-38B00-000 5116838B00000

$8,97

Unit Price

SEAL, OIL
OIL SEAL

51153-08D00-000 5115308D00000

$20,97

Unit Price

CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

DUST SEAL

51173-08D00-000

51173-15D00-000

$28,97

Unit Price

.DUST SEAL

51571-38B00-000 5157138B00000

Not available

DISCONTINUE

51195-19C10-000

Not available

BOLT(6X8)
BOLT

09100-06011-000 0910006011000

$3,97

Unit Price

GASKET, DRAIN, PLUG
GASKET

51183-31030-000 5118331030000

$7,97

Unit Price

BOLT(8X27)
BOLT, LOWER

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

BOLT
BOLT, LH

01550-08507-000 0155008507000

$6,97

Unit Price

NUT
NUT, LH

08316-10087-000 0831610087000

$3,97

Unit Price

DISCONTINUE
PIPE, SEAT UNDER

51194-20C00-000 5119420C00000

Not available

SPRING, REBOUND

51177-48B31-000 5117748B31000

$17,97

Unit Price

DISCONTINUE
RING, PISTON

51196-19C00-000 5119619C00000

Not available

TUBE, INNER

51110-20C00-000 5111020C00000

Not available

51121-44H00
BUSH, SLIDE

51121-48B31-000 5112148B31000

Not available

DISCONTINUE
SPRING, MAIN

51171-20C00-000 5117120C00000

Not available

JOINT, SPRING

51192-19C00-000 5119219C00000

$6,97

Unit Price

DISCONTINUE
SPACER, SPRING

51176-34C00-000 5117634C00000

Not available

DISCONTINUE
ROD, INNER

52111-19C10-000 5211119C10000

Not available

DISCONTINUE
WASHER

51354-19C10-000 5135419C10000

Not available

O RING
O RING, ROD

51117-19C10-000 5111719C10000

$5,97

Unit Price

DISCONTINUE
BOLT, FORK

51351-20C00-000 5135120C00000

Not available

O RING
O RING, BOLT

51117-12C00-000 5111712C00000

$6,97

Unit Price

DISCONTINUE
PLATE, ADJUSTER

52193-19C10-000 5219319C10000

Not available

DISCONTINUE
SPRING

51118-19C10-000 5111819C10000

Not available

BALL

51835-17C00-000 5183517C00000

$4,97

Unit Price

DISCONTINUE
SCREW

51188-19C10-000 5118819C10000

Not available

DISCONTINUE
CAP

51189-19C10-000 5118919C10000

Not available

99x

DISCONTINUE

51103-20C00-000

Not available

99x

DAMPER ASSY, RH (SILVER)

51103-20C00-12R 5110320C0012R

Not available

99x

DISCONTINUE
DAMPER ASSY, RH (SILVER)

51103-20C00-13L 5110320C0013L

Not available

99x

DAMPER ASSY, LH

51104-20C00-000 5110420C00000

Not available

99x

DISCONTINUE
DAMPER ASSY, LH (SILVER)

51104-20C00-12R 5110420C0012R

Not available

99x

DAMPER ASSY

51104-20C00-13L 5110420C0013L

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
