FRONT FORK (MODEL K / L / M / N / P / R) REFER TO FIG.45A (K-4) FOR MODEL S/T

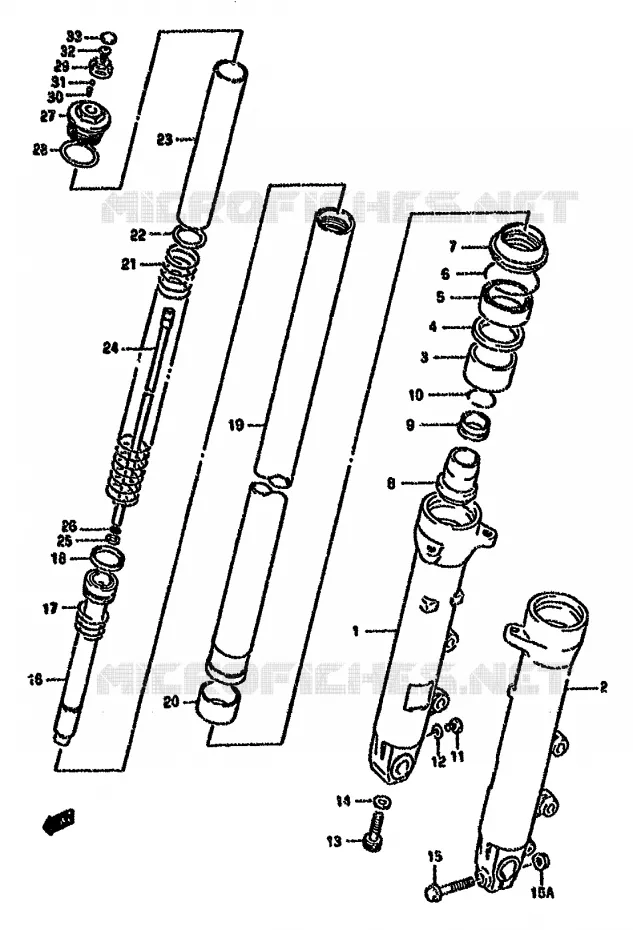

FRONT FORK (MODEL S / T) FOR SUZUKI GSX-F 750 1990

STEERING COLUMN

DISCONTINUE
TUBE, OUTER RH (SILVER)

51130-19C10-13L 5113019C1013L

Not available

DISCONTINUE
TUBE, OUTER LH (SILVER)

51140-19C10-13L 5114019C1013L

Not available

BUSH, GUIDE

51152-48B31-000 5115248B31000

$30,97

Unit Price

SPACER, SEAL

51168-38B00-000 5116838B00000

$8,97

Unit Price

SEAL, OIL
OIL SEAL

51153-08D00-000 5115308D00000

$20,97

Unit Price

CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

DUST SEAL

51173-15D00-000 5117315D00000

$28,97

Unit Price

DISCONTINUE
PIECE, OIL LOCK

51195-20C10-000 5119520C10000

Not available

VALVE, OIL LOCK PIECE

51197-20C10-000 5119720C10000

Not available

.RING, STOPPER

52277-20C10-000 5227720C10000

Not available

BOLT(6X8)
BOLT

09100-06011-000 0910006011000

$3,97

Unit Price

GASKET, DRAIN, PLUG
GASKET

51183-31030-000 5118331030000

$7,97

Unit Price

BOLT(8X27)
BOLT, LOWER

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

BOLT
BOLT, LH

01550-08507-000 0155008507000

$6,97

Unit Price

15A

NUT
NUT, LH

08316-10087-000 0831610087000

$3,97

Unit Price

DISCONTINUE
PIPE, SEAT UNDER

51194-20C00-000 5119420C00000

Not available

PIPE, SEAT UNDER

51194-20C10-000 5119420C10000

Not available

SPRING, REBOUND

51177-48B31-000 5117748B31000

$17,97

Unit Price

DISCONTINUE
RING, PISTON

51196-19C00-000 5119619C00000

Not available

TUBE, INNER

51110-20C00-000 5111020C00000

Not available

51121-44H00
BUSH, SLIDE

51121-48B31-000 5112148B31000

Not available

DISCONTINUE
SPRING, MAIN

51171-20C00-000 5117120C00000

Not available

JOINT, SPRING

51192-19C00-000 5119219C00000

$6,97

Unit Price

DISCONTINUE
SPACER, SPRING

51176-34C00-000 5117634C00000

Not available

DISCONTINUE
ROD, INNER

52111-19C10-000 5211119C10000

Not available

DISCONTINUE
WASHER

51354-19C10-000 5135419C10000

Not available

O RING
O RING, ROD

51117-19C10-000 5111719C10000

$5,97

Unit Price

DISCONTINUE
BOLT, FORK

51351-20C00-000 5135120C00000

Not available

O RING
O RING, BOLT

51117-12C00-000 5111712C00000

$6,97

Unit Price

DISCONTINUE
PLATE, ADJUSTER

52193-19C10-000 5219319C10000

Not available

DISCONTINUE
SPRING

51118-19C10-000 5111819C10000

Not available

BALL

51835-17C00-000 5183517C00000

$4,97

Unit Price

DISCONTINUE
SCREW

51188-19C10-000 5118819C10000

Not available

DISCONTINUE
CAP

51189-19C10-000 5118919C10000

Not available

DISCONTINUE
DAMPER ASSY, RH (SILVER)

51103-20C00-13L 5110320C0013L

Not available

DAMPER ASSY, RH (SILVER)

51103-20C10-13L 5110320C1013L

Not available

DAMPER ASSY

51104-20C00-13L 5110420C0013L

Not available

DAMPER ASSY, LH (SILVER)

51104-20C10-13L 5110420C1013L

Not available
