CRANKCASE FOR SUZUKI GSX-F 750 1992

CRANKCASE COVER

Item numbers

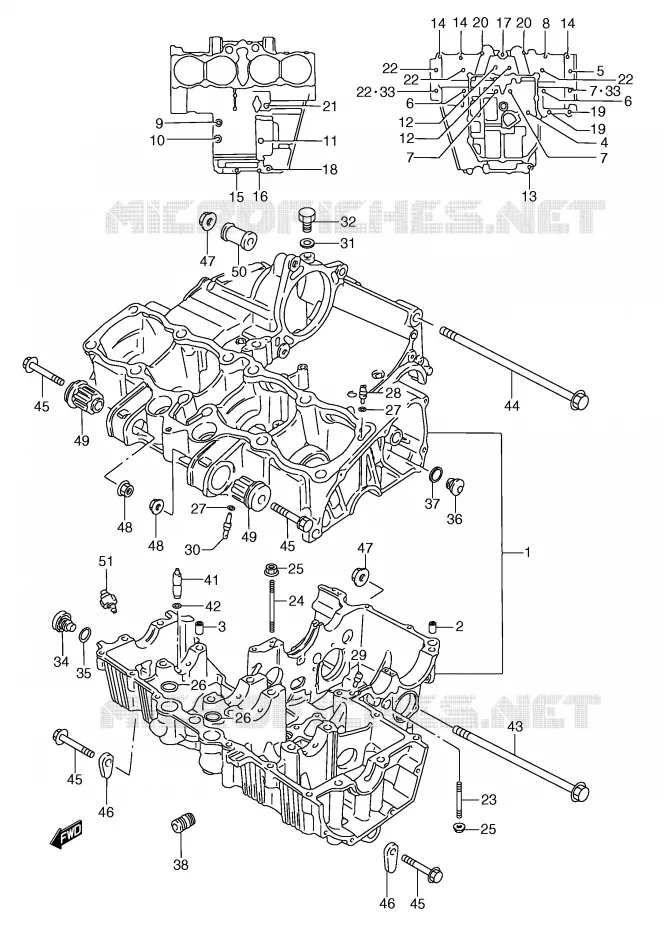

CRANKCASE Suzuki MOTO 750 GSX-F 1992 GSX750FN(E2)
1
1
2
3
4
4
5
6
6
7
7
7
8
8
8
9
9
9
10
10
10
11
11
11
12
12
12
12
12
12
13
13
13
14
14
14
14
14
14
14
14
14
15
15
15
16
17
17
17
18
18
18
19
19
19
19
20
20
20
20
20
20
21
21
21
22
22
22
22
23
24
25
25
25
25
26
26
27
27
28
29
30
30
31
32
33
33
34
35
36
36
37
38
41
42
43
43
44
45
45
45
45
45
45
45
45
46
46
47
47
47
47
48
48
48
48
49
49
50
50
51
1
DISCONTINUE

11300-20893-000  

1130020893000
Not available
1
DISCONTINUE

11301-20820-000  

1130120820000
Not available
2
CLUTCH COVER PI **S1<br />PIN
CLUTCH COVER PI **S1
PIN

09206-13004-000   0920613004000

0920613004000

Unit Price

3
PIN, 11 X20

09206-11005-000  

09206-11017-000
 0920611005000

Unit Price

4
BOLT,ENGINE MOUNT<br />BOLT (6X105)
BOLT, ENGINE MOUNT
BOLT (6X105)

09103-06067-000   0910306067000

0910306067000

Unit Price

4
BOLT (6X105)
BOLT (6X105)

09103-06163-000   0910306163000

0910306163000
Not available
5
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

6
BOLT (8X125)
BOLT (8X125)

09103-08182-000   0910308182000

0910308182000

Unit Price

7
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

8
BOLT

01517-06354-000  

01550-0635B-000
 0151706354000

Unit Price

8
BOLT

01550-06357-000   0155006357000

0155006357000

Unit Price

9
BOLT

07130-06403-000  

07130-0640B-000
 0713006403000

Unit Price

9
.BOLT

07130-06408-000   0713006408000

0713006408000
Not available
10
BOLT

07110-06505-000  

07130-0650B-000
 0711006505000

Unit Price

10
.BOLT

07130-06508-000   0713006508000

0713006508000
Not available
11
BOLT

07110-06655-000  

07130-0665B-000
 0711006655000

Unit Price

11
.BOLT

07130-06658-000   0713006658000

0713006658000
Not available
12
BOLT

07110-08655-000  

07130-0865B-000
 0711008655000

Unit Price

12
.BOLT

07130-08658-000   0713008658000

0713008658000
Not available
13
BOLT

01550-08603-000  

01550-0860B-000
 0155008603000

Unit Price

13
.BOLT (8X60)

01517-08605-000   0151708605000

0151708605000
Not available
14
BOLT

01517-06354-000  

01550-0635B-000
 0151706354000

Unit Price

14
BOLT

01517-06358-000  

01550-06357-000
 0151706358000

Unit Price

14
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

15
BOLT

01517-06404-000  

01550-0640A-000
 0151706404000

Unit Price

15
BOLT
BOLT

01550-06407-000   0155006407000

0155006407000

Unit Price

16
BOLT
BOLT

01550-06407-000   0155006407000

0155006407000

Unit Price

17
BOLT

01517-06505-000  

01550-06503-000
 0151706505000

Unit Price

18
BOLT

01517-06605-000  

01550-06603-000
 0151706605000

Unit Price

18
BOLT

01550-06607-000  

01550-0660A-000
 0155006607000

Unit Price

19
BOLT

01550-06553-000  

01550-0655B-000
 0155006553000

Unit Price

19
BOLT

01550-06557-000  

01550-0660A-000
 0155006557000

Unit Price

20
01550-06703
.BOLT (6X70)

01517-06705-000  

0151706705000
Not available
20
DISCONTINUE
BOLT

01550-06703-000  

0155006703000
Not available
21
BOLT

01517-06805-000  

01550-06803-000
 0151706805000

Unit Price

21
.BOLT (6*80)

01517-06808-000   0151706808000

0151706808000
Not available
22
BOLT (8X95)
BOLT (8X95)

09103-08105-000   0910308105000

0910308105000

Unit Price

23
STUD BOLT

01421-06408-000   0142106408000

0142106408000
Not available
24
BOLT, STUD

01421-06608-000  

01421-0660A-000
 0142106608000

Unit Price

25
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

26
O RING(D:2.5,ID:21)<br />O RING, OIL RETURN
O RING(D:2.5, ID:21)
O RING, OIL RETURN

09280-21008-000   0928021008000

0928021008000

Unit Price

27
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

28
JET, OIL GALLERY HEAD
JET, OIL GALLERY HEAD

09493-14002-000   0949314002000

0949314002000
Not available
29
JET<br />JET, OIL GALLERY GEAR SHIFT
JET
JET, OIL GALLERY GEAR SHIFT

09493-24010-000   0949324010000

0949324010000

Unit Price

30
JET(13)<br />JET, OIL GALLERY PISTON
JET(13)
JET, OIL GALLERY PISTON

09493-26007-000   0949326007000

0949326007000

Unit Price

30
JET, OIL GALLERY PISTON
JET, OIL GALLERY PISTON

09493-80008-000   0949380008000

0949380008000
Not available
31
GASKET OIL GALLERY<br />GASKET, HOLE PLUG
GASKET OIL GALLERY
GASKET, HOLE PLUG

09168-12002-000   0916812002000

0916812002000
Not available
32
PLUG 2ND MUFFLER<br />PLUG, HOLE
PLUG 2ND MUFFLER
PLUG, HOLE

09247-12103-000   0924712103000

0924712103000

Unit Price

33
GASKET 8.5X17X2.3<br />GASKET
GASKET 8.5X17X2.3
GASKET

09168-08021-000   0916808021000

0916808021000

Unit Price

34
PLUG, OIL GALLERY

09248-16003-000  

09248-16007-000
 0924816003000

Unit Price

35
O RING(D:2.4,ID:16.8)<br />O RING
O RING(D:2.4, ID:16.8)
O RING

09280-17002-000   0928017002000

0928017002000

Unit Price

36
PLUG
PLUG

09248-14010-000   0924814010000

0924814010000

Unit Price

36
09248-14011<br />PLUG, OIL GALLERY
09248-14011
PLUG, OIL GALLERY

09248-14005-000  

0924814005000
Not available
37
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

38
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

39
BEARING,CRANK THRUST(GREEN)<br />BEARING, THRUST RH (GREEN)
BEARING, CRANK THRUST(GREEN)
BEARING, THRUST RH (GREEN)

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

40
BEARING LEFT RED<br />BEARING, THRUST LH (RED)
BEARING LEFT RED
BEARING, THRUST LH (RED)

12228-48B00-0C0   1222848B000C0

1222848B000C0

Unit Price

40
BEARING,CRANK THRUST(GREEN)<br />BEARING, THRUST LH (GREEN)
BEARING, CRANK THRUST(GREEN)
BEARING, THRUST LH (GREEN)

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

40
BEARING,CRANK THRUST(BLACK)<br />BEARING, THRUST LH (BLACK)
BEARING, CRANK THRUST(BLACK)
BEARING, THRUST LH (BLACK)

12228-48B00-0H0   1222848B000H0

1222848B000H0

Unit Price

41
VALVE ASSY, PISTON OIL CONTROL

16430-27A00-000   1643027A00000

1643027A00000
Not available
42
O-RING D:1.2 ID:4.7<br />O RING
O-RING D:1.2 ID:4.7
O RING

09280-05007-000   0928005007000

0928005007000

Unit Price

43
BOLT<br />BOLT (10X130)
BOLT
BOLT (10X130)

09103-10122-000   0910310122000

0910310122000

Unit Price

43
BOLT (10X130)

09103-10237-000   0910310237000

0910310237000

Unit Price

44
DISCONTINUE
BOLT (10X175)

09103-10151-000   0910310151000

0910310151000
Not available
45
BOLT

01580-10553-000  

01580-1055B-000
 0158010553000

Unit Price

46
ENGINE MOUNT NUT N02<br />NUT
ENGINE MOUNT NUT N02
NUT

09159-10020-000   0915910020000

0915910020000

Unit Price

47
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

47
NUT

09159-10044-000   0915910044000

0915910044000
Not available
48
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

49
BUSH,ENGINE MOUNTING
BUSH, ENGINE MOUNTING

11681-06B00-000  

11681-06B01-000
 1168106B00000

Unit Price

50
SPACER,ENGINE MOUNT(L27)<br />SPACER (L:27)
SPACER, ENGINE MOUNT(L27)
SPACER (L:27)

11610-20C00-000   1161020C00000

1161020C00000

Unit Price

51
SWITCH ASSY, OIL PRESSURE

37820-33D00-000  

37820-33D11-000
 3782033D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
