Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI GSX-F 750 1994

GEAR SHIFTING ASSY

Item numbers

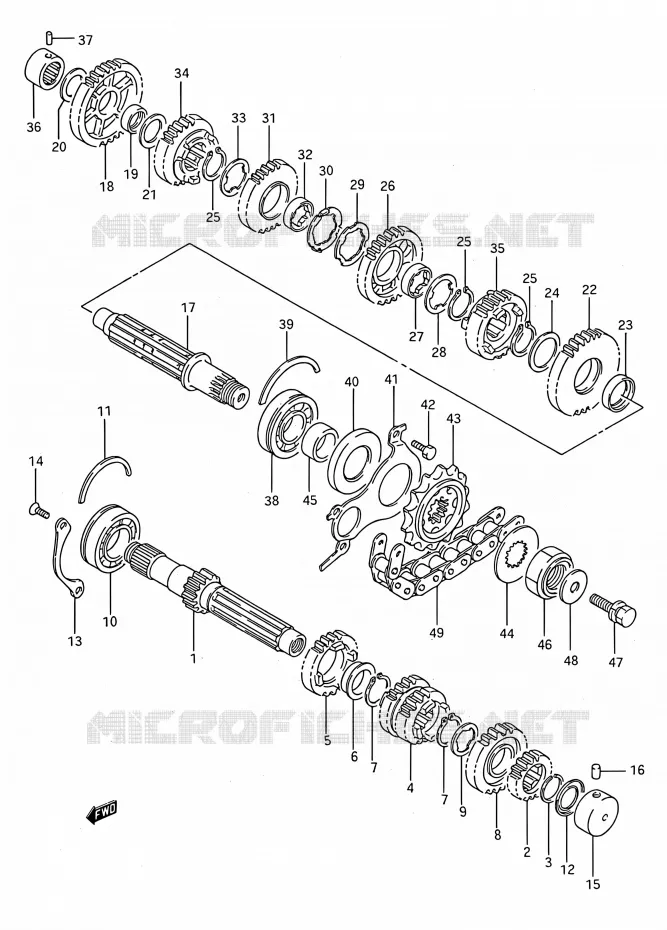

TRANSMISSION Suzuki MOTO 750 GSX-F 1994 GSX750F R (E03,E28,E33)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
DISCONTINUE
COUNTERSHAFT (NT:12)

24121-20C10-000   2412120C10000

2412120C10000
Not available
2
DISCONTINUE

24221-27A10-000  

2422127A10000
Not available
3
CIRCLIP
CIRCLIP

09380-25013-000   0938025013000

0938025013000

Unit Price

4
GEAR, 3RD & 4TH DRIVE(NT:17/20)

24231-27A10-000  

24231-27A00-000
 2423127A10000

Unit Price

5
DISCONTINUE<br />GEAR, 5TH DRIVE (NT:22)
DISCONTINUE
GEAR, 5TH DRIVE (NT:22)

24251-27A01-000   2425127A01000

2425127A01000
Not available
6
BUSH

09301-25001-000  

24322-19F00-000
 0930125001000

Unit Price

7
3RD PINION CIRCLIP<br />CIRCLIP
3RD PINION CIRCLIP
CIRCLIP

09380-25003-000   0938025003000

0938025003000

Unit Price

8
GEAR, 6TH DRIVE(NT:21)

24261-17C01-000  

24261-17C02-000
 2426117C01000

Unit Price

9
WASHER
WASHER

09167-25012-000   0916725012000

0916725012000

Unit Price

10
BEARING(25X62X17)<br />BEARING, RH
BEARING(25X62X17)
BEARING, RH

09262-25051-000   0926225051000

0926225051000

Unit Price

11
C-RING

09390-62006-000  

09390-62012-000
 0939062006000

Unit Price

12
OIL SEAL
OIL SEAL

09285-20006-000   0928520006000

0928520006000

Unit Price

13
RETAINER,CNTR SHAFT BEARING<br />HOLDER, BEARING
RETAINER, CNTR SHAFT BEARING
HOLDER, BEARING

24741-27A00-000   2474127A00000

2474127A00000

Unit Price

14
SCREW 6X16<br />SCREW
SCREW 6X16
SCREW

02122-06167-000   0212206167000

0212206167000

Unit Price

15
BEARING,COUNTERSHAFT
BEARING, COUNTERSHAFT

09263-20049-000  

09263-20119-000
 0926320049000

Unit Price

16
PIN 7 X 12<br />PIN
PIN 7 X 12
PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

17
DISCONTINUE
DRIVESHAFT

24131-20C00-000   2413120C00000

2413120C00000
Not available
18
DISCONTINUE<br />GEAR, 1ST DRIVEN (NT:37)
DISCONTINUE
GEAR, 1ST DRIVEN (NT:37)

24311-19C10-000   2431119C10000

2431119C10000
Not available
19
BUSH
BUSH

09300-22008-000   0930022008000

0930022008000

Unit Price

20
WASHER<br />WASHER, RH
WASHER
WASHER, RH

08211-20341-000   0821120341000

0821120341000

Unit Price

21
WASHER<br />WASHER, LH
WASHER
WASHER, LH

08211-22341-000   0821122341000

0821122341000

Unit Price

22
GEAR, 2ND DRIVEN(NT:33)

24321-20C10-000  

24321-20C00-000
 2432120C10000

Unit Price

23
BUSH(28X32X9.5)<br />BUSH
BUSH(28X32X9.5)
BUSH

09300-28003-000   0930028003000

0930028003000

Unit Price

24
WASHER

08211-28381-000  

09181-28195-000
 0821128381000

Unit Price

25
CIRCLIP

08331-31286-000  

08331-31289-000
 0833131286000

Unit Price

26
GEAR, 3RD DRIVEN(NT:28)

24331-27A10-000  

24331-27A00-000
 2433127A10000

Unit Price

27
BUSH
BUSH

24332-27A00-000   2433227A00000

2433227A00000

Unit Price

28
WASHER,LOCK<br />WASHER, LH
WASHER, LOCK
WASHER, LH

09167-28001-000   0916728001000

0916728001000

Unit Price

29
WASHER,LOCK<br />WASHER, RH (T:1.5)
WASHER, LOCK
WASHER, RH (T:1.5)

09167-28002-000   0916728002000

0916728002000

Unit Price

30
WASHER<br />WASHER, RH (T:1.0)
WASHER
WASHER, RH (T:1.0)

09169-28001-000   0916928001000

0916928001000

Unit Price

31
DISCONTINUE<br />GEAR, 4TH DRIVEN (NT:28)
DISCONTINUE
GEAR, 4TH DRIVEN (NT:28)

24341-27A01-000   2434127A01000

2434127A01000
Not available
32
BUSH
BUSH

24332-27A00-000   2433227A00000

2433227A00000

Unit Price

33
WASHER,LOCK<br />WASHER, RH
WASHER, LOCK
WASHER, RH

09167-28001-000   0916728001000

0916728001000

Unit Price

34
GEAR, 5TH DRIVEN (NT:27)
GEAR, 5TH DRIVEN (NT:27)

24351-27A00-000   2435127A00000

2435127A00000

Unit Price

35
GEAR, 6TH DRIVEN(NT:23)

24361-20C00-000  

24361-20C01-000
 2436120C00000

Unit Price

36
BEARING,DR SHAFT RH<br />BEARING, RH
BEARING, DR SHAFT RH
BEARING, RH

09263-20040-000   0926320040000

0926320040000

Unit Price

37
PIN<br />PIN (L:20)
PIN
PIN (L:20)

04221-07209-000   0422107209000

0422107209000

Unit Price

38
BEARING<br />BEARING, LH
BEARING
BEARING, LH

09262-25105-000   0926225105000

0926225105000

Unit Price

39
C-RING

09390-62006-000  

09390-62012-000
 0939062006000

Unit Price

40
SEAL,OIL 34X62X6<br />OIL SEAL (34X62X6)
SEAL, OIL 34X62X6
OIL SEAL (34X62X6)

09283-34005-000   0928334005000

0928334005000

Unit Price

41
DISCONTINUE<br />PLATE
DISCONTINUE
PLATE

24751-27A01-000   2475127A01000

2475127A01000
Not available
42
BOLT

01500-06123-000  

01500-0612A-000
 0150006123000

Unit Price

43
SPROCKET, ENGINE(NT:15)

27510-17C00-000  

27510-17C10-000
 2751017C00000

Unit Price

44
SHIM, T:1.5

08211-25402-000  

09181-25268-000
 0821125402000

Unit Price

45
SPACER
SPACER

09180-25091-000   0918025091000

0918025091000

Unit Price

46
NUT
NUT

09159-20004-000   0915920004000

0915920004000

Unit Price

47
BOLT

01570-06163-000  

01570-0616A-000
 0157006163000

Unit Price

48
WASHER
WASHER

08212-06222-000   0821206222000

0821206222000

Unit Price

49
27600-24F20-120
CHAIN, DRIVE (118LE) RK

27600-20C00-118  

2760020C00118
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 750 GSX-F 1994
