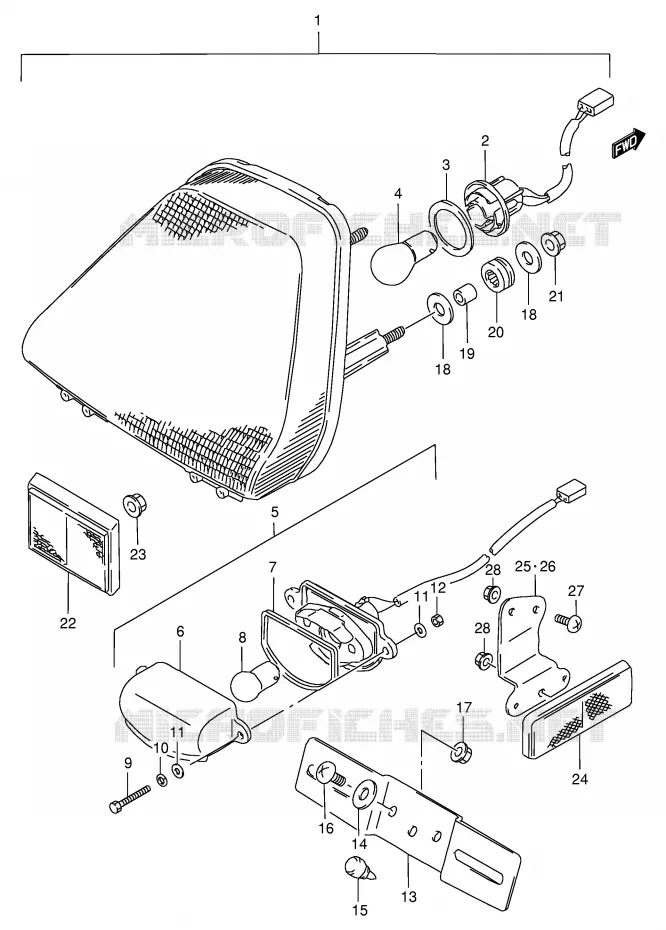

TAIL LIGHT FOR SUZUKI GSX-F 750 1997

WIRING HARNESS

Item numbers

LAMP ASSY, REAR COMBINATION

35710-48C20-000 3571048C20000

Not available

DISCONTINUE
SOCKET

35718-48B20-000 3571848B20000

Not available

DISCONTINUE
RUBBER

35764-48B20-000 3576448B20000

Not available

BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

LAMP ASSY, LICENSE

35910-48B20-000 3591048B20000

Not available

DISCONTINUE
LENS, LICENSE LAMP

35912-00A21-000 3591200A21000

Not available

GASKET

35913-04A00-000 3591304A00000

Not available

BULB(12V10W)
BULB

09471-12140-000

Not available

BOLT

01104-04256-000 0110404256000

Not available

WASHER, LOCK

08321-01043-000

08321-0104A-000

$2,97

Unit Price

WASHER

08322-01047-000 0832201047000

$2,97

Unit Price

NUT

08310-00047-000 0831000047000

$2,97

Unit Price

PLATE, RR LICENSE
BRACKET, LICENSE PLATE

35927-44110-000 3592744110000

$54,97

Unit Price

WASHER, 6.5X14X1.6

09160-06053-000

09160-06125-000

$3,97

Unit Price

CUSHION

09321-06023-000 0932106023000

$3,97

Unit Price

SCREW

02112-06163-000

02112-0616A-000

$2,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000 0916006077000

$3,97

Unit Price

SPACER (6.1X8X9.5)

09180-06248-000 0918006248000

$3,97

Unit Price

RR COMB LAMP CUSHION
CUSHION

09320-09009-000 0932009009000

$7,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

REFLEX REFLECTOR, REAR

35970-48B00-000 3597048B00000

Not available

NUT

08316-10053-000

08316-1005B-000

$4,97

Unit Price

REFLEX REFLECTOR, FR SIDE
REFLECTOR, REAR SIDE

35950-43431-000 3595043431000

$20,97

Unit Price

DISCONTINUE
BRACKET, RH

35975-20C01-000 3597520C01000

Not available

DISCONTINUE
BRACKET, LH

35976-20C01-000 3597620C01000

Not available

SCREW

02142-05123-000

02142-0512A-000

$2,97

Unit Price

08310-0005A

08310-00053-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
