Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FOOTREST (SEE NOTE) NOTE : F.NO.JS1AK111100100421%

FOOTREST (MODEL K1 / K2 / K3) FOR SUZUKI GSX-F 750 2001

FUEL TANK (MODEL W / X) REFER TO FIG.34A(F-8) FOR MODEL Y/K1

Item numbers

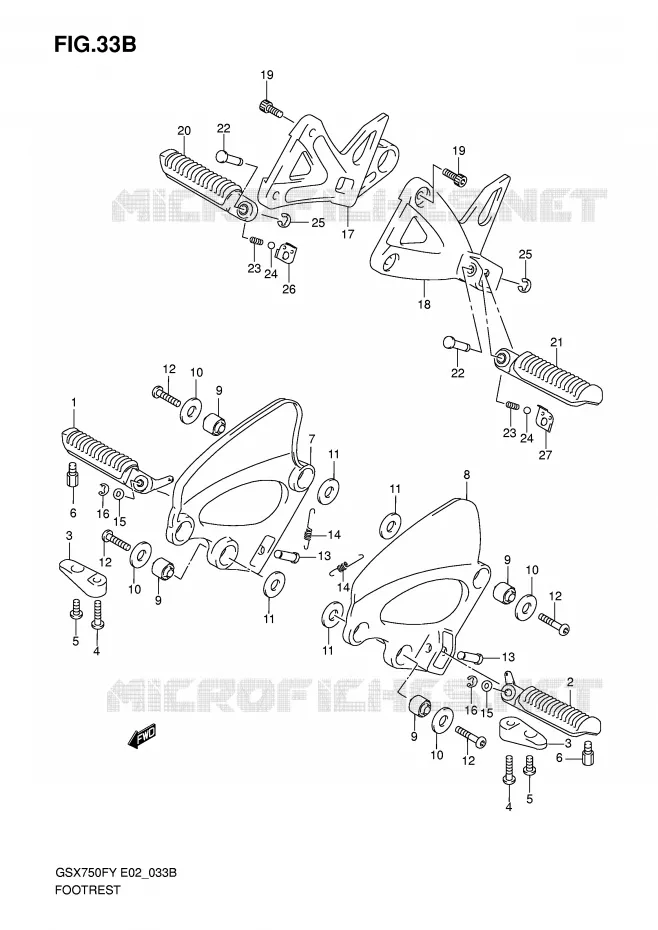

FOOTREST (MODEL K1/K2/K3) Suzuki MOTO 750 GSX-F 2001 GSX750FK1(E2)
1
2
3
3
4
4
5
5
6
6
7
8
9
9
9
9
10
10
10
10
11
11
11
11
12
12
12
12
13
13
14
14
15
15
16
16
17
18
19
19
20
21
22
22
23
23
24
24
25
25
26
27
1
BAR, FR FOOTREST, R
FOOTREST ASSY, FRONT RH

43510-19C22-000  

4351019C22000
Not available
2
BAR, FR FOOTREST, L
FOOTREST ASSY, FRONT LH

43520-19C22-000  

4352019C22000
Not available
3
BALANCER, FR FOOTREST LWR
BALANCER, FOOTREST LOWER

43536-19C21-000   4353619C21000

4353619C21000

Unit Price

4
SCREW

02112-05353-000  

02112-0535B-000
 0211205353000

Unit Price

5
SCREW

02112-05203-000  

02112-0520B-000
 0211205203000

Unit Price

6
BOLT, BANK SENSOR
BOLT, BANK SENSOR

43576-07D01-000   4357607D01000

4357607D01000

Unit Price

7
DISCONTINUE
HOLDER, FRONT FOOTREST RH

43517-08FA0-000   4351708FA0000

4351708FA0000
Not available
8
HOLDER, FR FOOTREST, L
HOLDER, FRONT FOOTREST LH

43527-08FA0-000   4352708FA0000

4352708FA0000

Unit Price

9
BUSH(8.4X20X16)
BUSH, HOLDER

09319-08045-000   0931908045000

0931908045000

Unit Price

10
WASHER(13.7X24X2)
WASHER, OUTER

09161-13004-000   0916113004000

0916113004000

Unit Price

11
WASHER(17.2X24X2.2)<br />WASHER, INNER
WASHER(17.2X24X2.2)
WASHER, INNER

09161-17002-000   0916117002000

0916117002000

Unit Price

12
BOLT(8X30)<br />BOLT
BOLT(8X30)
BOLT

09106-08147-000   0910608147000

0910608147000

Unit Price

13
PIN
PIN

09208-08010-000   0920808010000

0920808010000

Unit Price

14
DISCONTINUE
SPRING

09443-10037-000   0944310037000

0944310037000
Not available
15
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
16
E RING

08332-11063-000  

08332-1106B-000
 0833211063000

Unit Price

17
DISCONTINUE
BRACKET, PILLION RH

43811-08F00-000   4381108F00000

4381108F00000
Not available
18
DISCONTINUE
BRACKET, PILLION LH

43821-08F00-000   4382108F00000

4382108F00000
Not available
19
BOLT
BOLT, BRACKET

09106-08150-000   0910608150000

0910608150000

Unit Price

20
BAR, PILLION FOOTREST, R
BAR, PILLION FOOTREST RH

43610-20C01-000   4361020C01000

4361020C01000

Unit Price

21
BAR, PILLION FOOTREST, L
BAR, PILLION FOOTREST LH

43710-20C01-000   4371020C01000

4371020C01000

Unit Price

22
PIN
PIN

09208-08011-000   0920808011000

0920808011000

Unit Price

23
SPRING
SPRING

09440-05005-000   0944005005000

0944005005000

Unit Price

24
STEEL BALL 7/32<br />BALL
STEEL BALL 7/32
BALL

06111-07004-000   0611107004000

0611107004000

Unit Price

25
E RING

08332-11063-000  

08332-1106B-000
 0833211063000

Unit Price

26
PLATE, PILLION FOOTREST, R
PLATE, PILLION RH

43816-23E00-000   4381623E00000

4381623E00000

Unit Price

27
PLATE, PILLION FOOTREST, L
PLATE, PILLION LH

43826-23E00-000   4382623E00000

4382623E00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
