Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CARBURETOR

CARBURETOR FITTINGS FOR SUZUKI GSX-F 750 2002

AIR FILTER

Item numbers

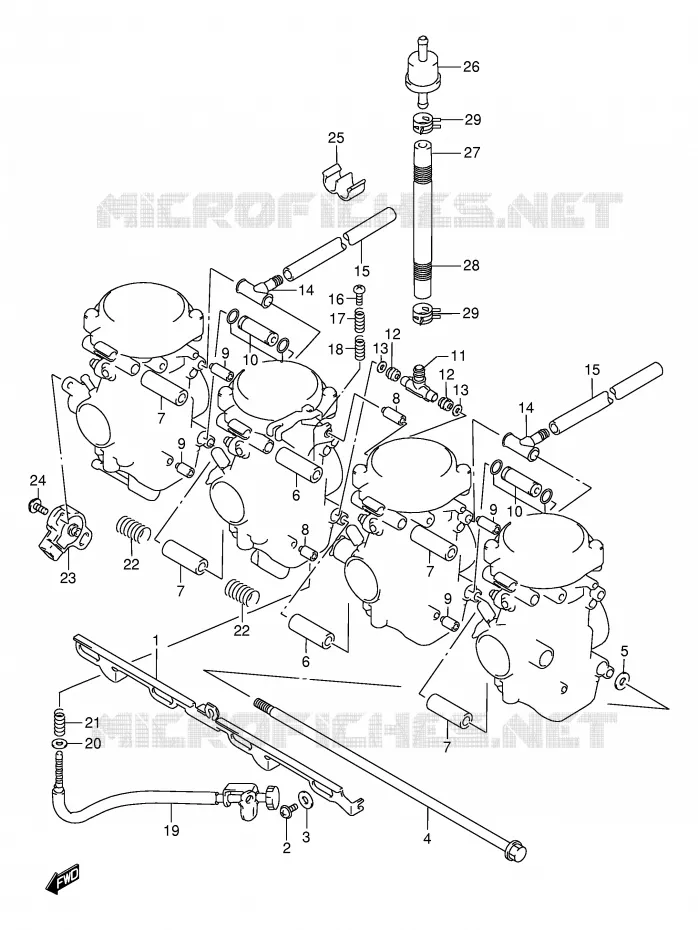

CARBURETOR FITTINGS Suzuki MOTO 750 GSX-F 2002 GSX750FK2(E2)
1
2
3
4
5
6
6
7
7
7
7
8
8
9
9
9
9
10
10
11
12
12
13
13
14
14
15
15
16
17
18
18
19
20
21
22
22
23
24
24
25
26
27
28
29
29
1
DISCONTINUE
LEVER

13413-19E00-000   1341319E00000

1341319E00000
Not available
2
SCREW

02142-04083-000  

02142-0408B-000
 0214204083000

Unit Price

3
PACKING
PACKING

13557-33E00-000   1355733E00000

1355733E00000

Unit Price

4
DISCONTINUE<br />BOLT
DISCONTINUE
BOLT

13612-33E00-000   1361233E00000

1361233E00000
Not available
5
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

6
PIPE

13685-19E20-000   1368519E20000

1368519E20000

Unit Price

7
PIPE

13685-34E00-000   1368534E00000

1368534E00000

Unit Price

8
ROD

13685-19E00-000   1368519E00000

1368519E00000

Unit Price

9
ROD

13685-19E30-000   1368519E30000

1368519E30000

Unit Price

10
PIPE
PIPE ASSY

13685-08F00-000   1368508F00000

1368508F00000

Unit Price

11
NIPPLE

13685-16E00-000   1368516E00000

1368516E00000

Unit Price

12
SEAL
SEAL

13673-44B00-000   1367344B00000

1367344B00000

Unit Price

13
WASHER, DRAIN PLUG
..WASHER

13531-09300-000   1353109300000

1353109300000

Unit Price

14
HOSE

13683-01DB0-000   1368301DB0000

1368301DB0000

Unit Price

15
HOSE(7X10.2X475)
HOSE(7X10.2X475)

13684-40C00-000  

13684-40C01-000
 1368440C00000

Unit Price

16
SCREW
SCREW

13267-44B00-000   1326744B00000

1326744B00000

Unit Price

17
SPRING
SPRING

13271-44B00-000   1327144B00000

1327144B00000

Unit Price

18
SPRING, THROTTLE SCREW

13268-96110-000  

13268-96111-000
 1326896110000

Unit Price

19
DISCONTINUE
ADJUST SCREW ASSY

13267-19E00-000   1326719E00000

1326719E00000
Not available
20
WASHER, STARTER SHAFT
WASHER

13615-43010-000   1361543010000

1361543010000

Unit Price

21
SPRING

13444-61A00-000   1344461A00000

1344461A00000
Not available
22
SPRING

13573-06C10-000   1357306C10000

1357306C10000

Unit Price

23
SENSOR ASSY,THROTTLE
SENSOR ASSY, THROTTLE

13550-13D60-000  

13550-13D61-000
 1355013D60000

Unit Price

24
SCREW, SENSOR
SCREW, SENSOR

13605-20C00-000   1360520C00000

1360520C00000

Unit Price

24
SCREW, SENSOR

13602-55A00-000   1360255A00000

1360255A00000
Not available
25
CLIP
CLAMP, AIR VENT HOSE

09408-00100-000   0940800100000

0940800100000

Unit Price

26
STRAINER, FUEL

15410-19E00-000  

15410-19E10-000
 1541019E00000

Unit Price

27
HOSE, 7X12X600
HOSE, FUEL

09355-70125-600  

0935570125600
Not available
28
SPRING
PROTECTOR

09440-14030-000   0944014030000

0944014030000

Unit Price

29
CLAMP,WATER HOSE
CLAMP, WATER HOSE

09401-11407-000  

09401-11415-000
 0940111407000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
