Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT

WIRING HARNESS FOR SUZUKI GSX-F 750 2005

SWITCHES

Item numbers

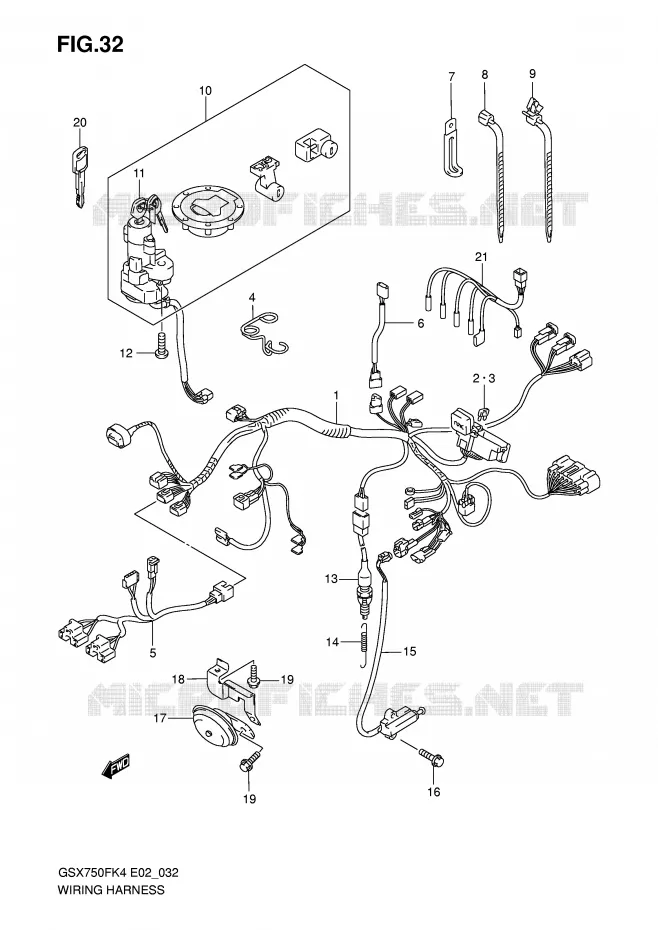

WIRING HARNESS Suzuki MOTO 750 GSX-F 2005 GSX750FK5(E2)
1
1
1
1
2
2
3
3
4
5
5
6
7
8
8
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
19
20
21
1
HARNESS, WIRING NO.1

36610-08FB0-000   3661008FB0000

3661008FB0000
Not available
1
DISCONTINUE
HARNESS, WIRING NO.1

36610-08FC0-000   3661008FC0000

3661008FC0000
Not available
1
HARNESS, WIRING NO.1

36610-08FD0-000   3661008FD0000

3661008FD0000
Not available
1
DISCONTINUE
HARNESS, WIRING NO.1

36610-08FE0-000   3661008FE0000

3661008FE0000
Not available
2
FUSE (10A)
FUSE (10A)

09481-10501-000  

0948110501000
Not available
3
FUSE (15A)

09481-15501-000   0948115501000

0948115501000

Unit Price

4
DISCONTINUE
GUIDE, WIRING HARNESS

36619-08F00-000   3661908F00000

3661908F00000
Not available
5
HARNESS, WIRING NO.2

36620-08FA0-000   3662008FA0000

3662008FA0000

Unit Price

5
HARNESS, WIRING NO.2

36620-08FB0-000   3662008FB0000

3662008FB0000
Not available
6
WIRE, LEAD
WIRE, TPS LEAD

36853-08F00-000   3685308F00000

3685308F00000

Unit Price

7
CLAMP<br />CLAMP (L:135)
CLAMP
CLAMP (L:135)

09404-06435-000   0940406435000

0940406435000

Unit Price

8
BAND, WIRING HARNESS

09407-11401-000  

09407-14403-000
 0940711401000

Unit Price

8
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

9
CLAMP<br />CLAMP (L:90)
CLAMP
CLAMP (L:90)

09407-11402-000   0940711402000

0940711402000

Unit Price

9
CLAMP, WATER HOSE

09407-14408-000  

09407-17402-000
 0940714408000

Unit Price

10
37105-33851
LOCK SET

37105-33850-000  

3710533850000
Not available
11
37100-33E21<br />LOCK ASSY, STEERING
37100-33E21
LOCK ASSY, STEERING

37100-33E20-000   3710033E20000

3710033E20000
Not available
12
BOLT<br />SCREW (8X20)
BOLT
SCREW (8X20)

09139-08016-000   0913908016000

0913908016000

Unit Price

13
SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP LAMP

37740-19F00-000   3774019F00000

3774019F00000

Unit Price

14
SPRING
SPRING

09443-06005-000   0944306005000

0944306005000

Unit Price

15
37840-44X52
37840-44X52

37840-44X50-000  

3784044X50000
Not available
16
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
17
DISCONTINUE
HORN ASSY

38500-08F10-000   3850008F10000

3850008F10000
Not available
18
DISCONTINUE
BRACKET, HORN

38590-08F00-000   3859008F00000

3859008F00000
Not available
19
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

20
KEY, BLANK
KEY, BLANK

37146-33E00-000   3714633E00000

3714633E00000

Unit Price

21
WIRE, CARB HEATER LEAD

36856-21E00-000   3685621E00000

3685621E00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
