Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDLEBAR (MODEL J / K) REFER TO FIG.44A (I-8) FOR MODEL L

HANDLEBAR (MODEL L) FOR SUZUKI GSX-R 750 1990

FRONT CALIPER (MODEL J / K) REFER TO FIG.46A (I-13) FOR MODEL L

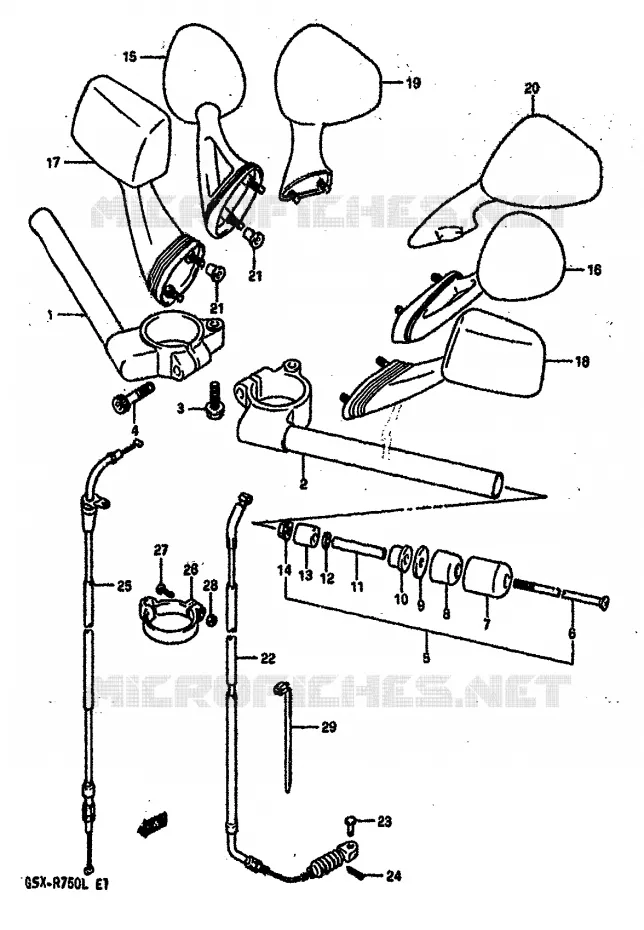

HANDLEBAR (MODEL L) Suzuki MOTO 750 GSX-R 1990 GSX-R750L(J/K/L)
1
HANDLEBAR, RH

56111-17D00-000   5611117D00000

5611117D00000
Not available
2
DISCONTINUE
HANDLEBAR, LH

56151-17D00-000   5615117D00000

5615117D00000
Not available
3
BOLT, EXTENSION

01517-06205-000   0151706205000

0151706205000
Not available
4
BOLT

07110-08355-000  

07130-0835B-000
 0711008355000

Unit Price

5
56200-17811
BALANCER SET, HANDLEBAR

56200-17810-000  

5620017810000
Not available
6
SCREW

09127-06017-000   0912706017000

0912706017000

Unit Price

7
DISCONTINUE
CAP

56274-12C00-000  

5627412C00000
Not available
8
.BALANCER

56271-17D00-000   5627117D00000

5627117D00000
Not available
9
SPACER, BALANCER

56275-34400-000  

56275-34401-000
 5627534400000

Unit Price

10
EXPANDER, HANDLE BALANCER NO.2

56272-17D00-000  

56272-26D10-000
 5627217D00000

Unit Price

11
SPACER,EXPANDER<br />SPACER
SPACER, EXPANDER
SPACER

56276-17D00-000   5627617D00000

5627617D00000

Unit Price

12
WASHER

08322-21067-000  

08322-0106A-000
 0832221067000

Unit Price

13
EXPANDER,HDL BALANCER INNER<br />EXPANDER
EXPANDER, HDL BALANCER INNER
EXPANDER

56272-44500-000   5627244500000

5627244500000

Unit Price

14
NUT,HANDLE BALANCER<br />NUT
NUT, HANDLE BALANCER
NUT

09159-06024-000   0915906024000

0915906024000

Unit Price

15
MIRROR ASSY, REAR VIEW RH (BLACK)

56500-17C02-291   5650017C02291

5650017C02291
Not available
16
MIRROR ASSY, REAR VIEW LH (BLACK)

56600-17C02-291   5660017C02291

5660017C02291
Not available
17
MIRROR ASSY, REAR VIEW RH (BLACK)

56500-17C20-291   5650017C20291

5650017C20291
Not available
18
MIRROR ASSY, REAR VIEW LH (BLACK) (WHITE) (BLACK) (WHITE) (BLACK)

56600-17C20-291   5660017C20291

5660017C20291
Not available
19
CLAMP
CLAMP

09407-25401-000   0940725401000

0940725401000

Unit Price

21
NUT,RR VIEW MIRROR<br />NUT,MIRROR
NUT, RR VIEW MIRROR
NUT, MIRROR

56619-17C00-000   5661917C00000

5661917C00000

Unit Price

22
CABLE ASSY, CLUTCH

58200-17D00-000   5820017D00000

5820017D00000
Not available
23
DISCONTINUE<br />PIN
DISCONTINUE
PIN

09200-06011-000   0920006011000

0920006011000
Not available
24
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

25
DISCONTINUE

58300-17D00-000  

5830017D00000
Not available
26
CLAMP, CLUTCH CABLE

58285-17D00-000   5828517D00000

5828517D00000
Not available
27
SCREW

02142-05164-000  

02142-0516B-000
 0214205164000

Unit Price

28
08310-0005A

08310-12055-000  

0831012055000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
