CLUTCH

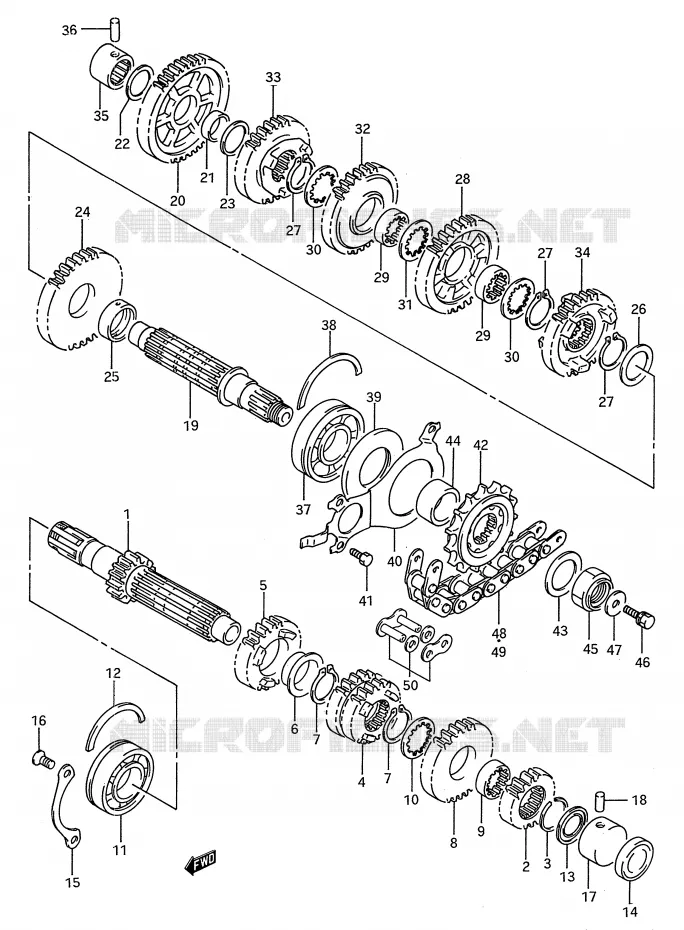

TRANSMISSION FOR SUZUKI GSX-R 750 1994

GEAR SHIFTING ASSY

Item numbers

DISCONTINUE
COUNTERSHAFT (NT:15)

24120-17E20-000 2412017E20000

Not available

COUNTERSHAFT (NT:15)

24121-17E01-000 2412117E01000

Not available

DISCONTINUE
GEAR, 2ND DRIVE (NT:17)

24221-17E00-000 2422117E00000

Not available

CIRCLIP

09380-27004-000 0938027004000

$6,97

Unit Price

GEAR, 3/4TH DRIVE (NT:20/21)

24231-17E00-000 2423117E00000

Not available

DISCONTINUE

24251-17E01-000

Not available

BUSH(28X32X2)
BUSH

09301-28001-000 0930128001000

$38,97

Unit Price

CIRCLIP

09380-27001-000 0938027001000

$3,97

Unit Price

DISCONTINUE

24261-17E01-000

Not available

BUSH

24262-17E00-000 2426217E00000

Not available

WASHER, LOCK
WASHER

09167-27001-000 0916727001000

$6,97

Unit Price

BEARING(25X62X17)
BALL BEARING (25X62X17)

09262-25051-000 0926225051000

$88,97

Unit Price

BEARING
BEARING, RH

09262-25105-000 0926225105000

$111,97

Unit Price

C-RING

09390-62006-000

09390-62012-000

$10,97

Unit Price

OIL SEAL

09285-20006-000 0928520006000

$10,97

Unit Price

DISCONTINUE
CAP, COUNTER SHAFT

23116-27A30-000 2311627A30000

Not available

RETAINER, CNTR SHAFT BEARING
HOLDER, BEARING

24741-27A00-000 2474127A00000

$12,97

Unit Price

SCREW

02122-06163-000

02122-0616B-000

$3,97

Unit Price

SCREW 6X16
SCREW

02122-06167-000 0212206167000

$2,97

Unit Price

BEARING, 20X34.17.5
BEARING, LH

09263-20069-000 0926320069000

$67,97

Unit Price

PIN 7 X 12
PIN

04221-07129-000 0422107129000

$2,97

Unit Price

SHAFT, DRIVE

24131-17E00-000 2413117E00000

Not available

DISCONTINUE

24131-17E01-000

Not available

DISCONTINUE
GEAR, 1ST DRIVEN (NT:43)

24311-17E01-000 2431117E01000

Not available

BUSH

09300-22008-000 0930022008000

$21,97

Unit Price

WASHER
WASHER, RH

08211-20341-000 0821120341000

$3,97

Unit Price

WASHER
WASHER, LH

08211-22341-000 0821122341000

$4,97

Unit Price

DISCONTINUE
GEAR, 2ND DRIVEN (NT:35)

24321-17E02-000 2432117E02000

Not available

DISCONTINUE
GEAR, 2ND DRIVEN (NT:35)

24321-17E10-000 2432117E10000

Not available

BUSH(28X32X9.5)
BUSH

09300-28003-000 0930028003000

$34,97

Unit Price

WASHER

08211-28381-000

09181-28195-000

$6,97

Unit Price

CIRCLIP

09380-27001-000 0938027001000

$3,97

Unit Price

DISCONTINUE
GEAR, 3RD DRIVEN (NT:33)

24331-17E02-000 2433117E02000

Not available

DISCONTINUE

24332-17E01-000

Not available

WASHER, LOCK
WASHER

09167-27001-000 0916727001000

$6,97

Unit Price

WASHER

09167-27002-000 0916727002000

Not available

DISCONTINUE

24341-17E02-000

Not available

GEAR, 5TH DRIVEN (NT:29)

24351-17E02-000 2435117E02000

Not available

DISCONTINUE

24361-17E03-000

Not available

DISCONTINUE
GEAR, 6TH DRIVEN (NT:28)

24361-17E20-000 2436117E20000

Not available

BEARING, DR SHAFT RH
BEARING, RH

09263-20040-000 0926320040000

$77,97

Unit Price

PIN
PIN (L:20)

04221-07209-000 0422107209000

$3,97

Unit Price

BEARING, 28X70X18
BEARING, LH

09262-28025-000 0926228025000

$174,97

Unit Price

C RING

09390-70001-000 0939070001000

$13,97

Unit Price

SEAL, 34.8X70X6
OIL SEAL (36X70X6)

09283-36008-000 0928336008000

$35,97

Unit Price

RETAINER, DRIVE SHAFT OIL SEAL
PLATE

24751-17E00-000 2475117E00000

$16,97

Unit Price

BOLT

01107-06107-000

01500-06107-000

$2,97

Unit Price

BOLT

01500-06123-000

01500-0612A-000

$2,97

Unit Price

SPROCKET, ENGINE(NT:15)

27510-17C00-000

27510-17C10-000

$141,97

Unit Price

SHIM, T:1.5

08211-25402-000

09181-25268-000

$4,97

Unit Price

DISCONTINUE
SPACER (25X36X17.7)

09180-25098-000 0918025098000

Not available

NUT

09159-20004-000 0915920004000

$26,97

Unit Price

BOLT

01147-06168-000

01570-0616A-000

$3,97

Unit Price

WASHER

08212-06222-000 0821206222000

$2,97

Unit Price

DISCONTINUE

27600-17C20-108

Not available

DISCONTINUE

27600-17E20-108

Not available

JOINT SET

27620-17E20-000

27620-24F20-000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
