FUEL TANK (MODEL D)

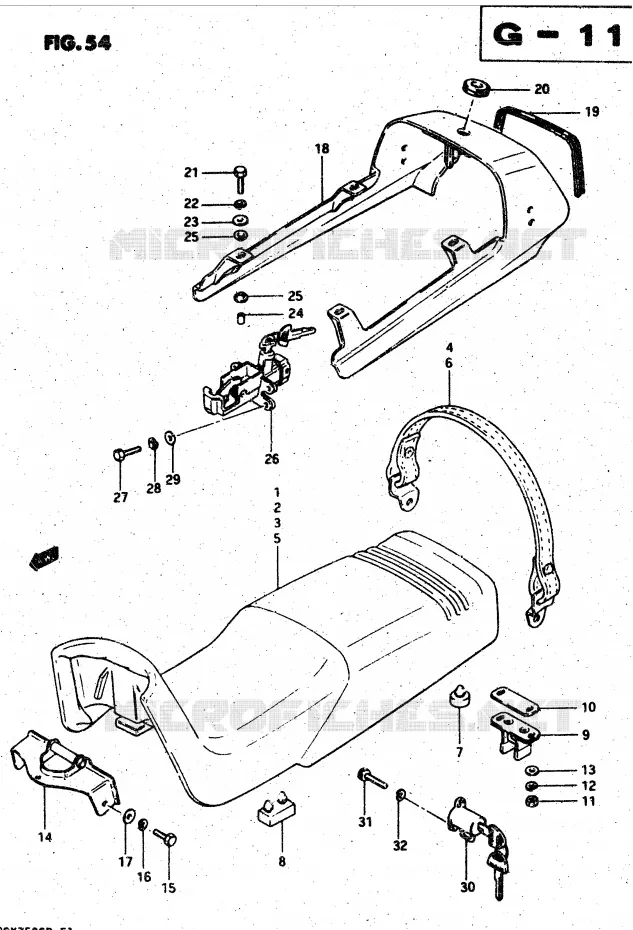

SEAT (MODEL Z) FOR SUZUKI GSX-S 750 1983

SEAT (MODEL D)

SEAT ASSY (BLUE)

45100-49310-47E 451004931047E

Not available

SEAT ASSY (BLACK)

45100-49310-48G 451004931048G

Not available

SEAT ASSY (BLUE)

45100-49315-47E 451004931547E

Not available

BAND, SEAT GRIP (BLUE)

45180-49316-47E 451804931647E

Not available

SEAT ASSY (BLACK)

45100-49315-48G 451004931548G

Not available

BAND, SEAT GRIP (BLACK)

45180-49316-48G 451804931648G

Not available

SEAT CUSHION
CUSHION

09321-08009-000 0932108009000

$4,97

Unit Price

CUSHION
CUSHING

09329-10001-000 0932910001000

$3,97

Unit Price

DISCONTINUE
STRIKER, SEAT LOCK

45210-44101-000 4521044101000

Not available

SHIM

45217-44100-000 4521744100000

Not available

NUT

08310-22068-000 0831022068000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

WASHER

08322-21068-000 0832221068000

Not available

DISCONTINUE
PLATE, FRONT

45210-49301-000 4521049301000

Not available

BOLT, FRONT

01107-06128-000 0110706128000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

WASHER

08322-21068-000 0832221068000

Not available

COVER, SEAT TAIL (RED)

45511-49300-11W 455114930011W

Not available

COVER, SEAT TAIL (SILVER)

45511-49300-13L 455114930013L

Not available

DISCONTINUED

45562-49300-000 4556249300000

Not available

GROMMET, SEAT LOCK HOLE
GROMMET

45522-49200-000 4552249200000

$15,97

Unit Price

BOLT, RETURN

01107-06258-000 0110706258000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

WASHER, 6.5X24X1.6

09160-06004-000

09160-06134-000

$3,97

Unit Price

09180-06290
DISCONTINUED

09180-07013-000

Not available

FRONT FENDER CUSHION
CUSHION

09320-10003-000 0932010003000

$4,97

Unit Price

DISCONTINUED

95700-49300-KEY 9570049300KEY

Not available

DISCONTINUED

01107-05128-000 0110705128000

Not available

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

LOCK WASHER

08322-21058-000 0832221058000

Not available

HELMET LOCK SET

95700-35821-000 9570035821000

Not available

BOLT

09106-06005-000

07130-06307-000

$5,97

Unit Price

LOCK WASHER

08321-21068-000 0832121068000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT (MODEL Z) of your Suzuki KATANA 750 of GSX-S. Let us know if you have any questions.
