CYLINDER HEAD COVER

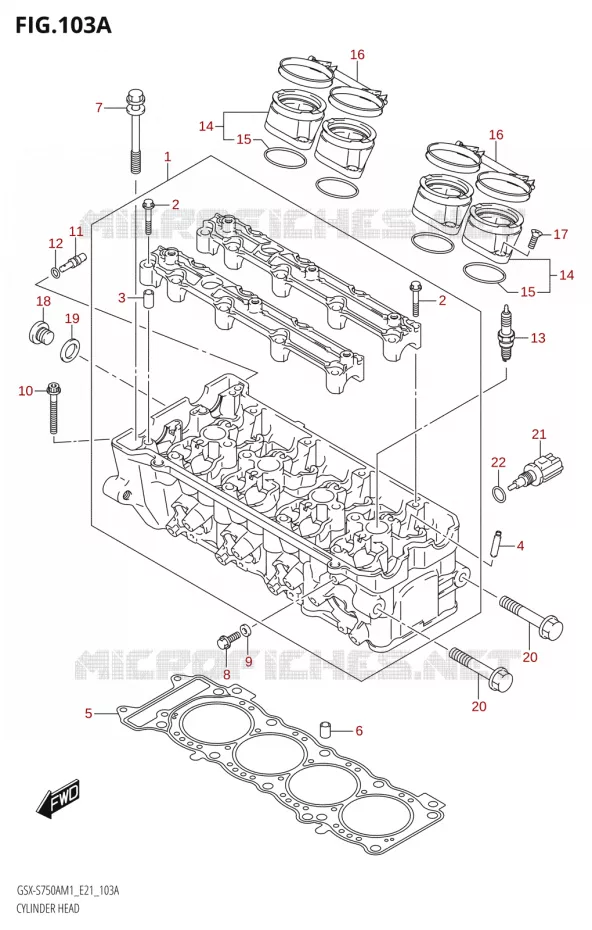

CYLINDER HEAD FOR SUZUKI GSX-S 750 2021

CASING

HEAD ASSY, CYLINDER

11100-13K00-000 1110013K00000

$2 070,97

Unit Price

BOLT, CAMSHAFT HOUSIN
.BOLT (6X40)

09103-06266-000 0910306266000

$3,97

Unit Price

.PIN (6.2X8X16)

09206-08007-000 0920608007000

$3,97

Unit Price

GUIDE, VALVE
GUIDE, VALVE (OS 0.3)

11115-11D70-000 1111511D70000

$39,97

Unit Price

GASKET, CYLINDER HEAD

11141-35F00-000 1114135F00000

$90,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

BOLT, CYLINDER HEAD (L:105)

11117-30G00-000 1111730G00000

$12,97

Unit Price

BOLT

01550-0612A-000 015500612A000

$2,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

BOLT

07120-0650A-000 071200650A000

$4,97

Unit Price

JET, OIL GALLERY
JET (#80)

09493-80005-000 0949380005000

$23,97

Unit Price

O RING
O-RING (D:1.2, ID:4)

09280-04004-000 0928004004000

$2,97

Unit Price

PLUG, SPARK CR8EIA-9

09482-00555-000

09482-00556-000

$20,45

Unit Price

PLUG, SPARK CR9EIA-9

09482-00557-000

09482-00558-000

$21,45

Unit Price

PLUG, SPARK(CR10

09482-00559-000

09482-00560-000

$20,45

Unit Price

PLUG, SPARK (CR9EIA-9)

09482-00558-000 0948200558000

$21,45

Unit Price

PIPE ASSY, INTAKE

13101-08J01-000 1310108J01000

$54,97

Unit Price

O RING

09280-40010-000

09280-40020-000

$6,97

Unit Price

CLAMP, INTAKE PIPE

13170-08J00-000 1317008J00000

$31,97

Unit Price

SCREW

02122-0616B-000 021220616B000

$3,97

Unit Price

PLUG, OIL
PLUG (16X8)

09248-16012-000 0924816012000

$8,97

Unit Price

GASKET, FAN SWITCH
GASKET (16X22X0.8)

09168-16009-000 0916816009000

$3,97

Unit Price

SENSOR, TEMP

13650-49X00-000 1365049X00000

$88,97

Unit Price

WASHER
GASKET (12X17X1)

09168-12017-000 0916812017000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki GSX-S 750 of GSX-S. Let us know if you have any questions.
