Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI GSX-S 750 2021

GEAR SHIFTING ASSY

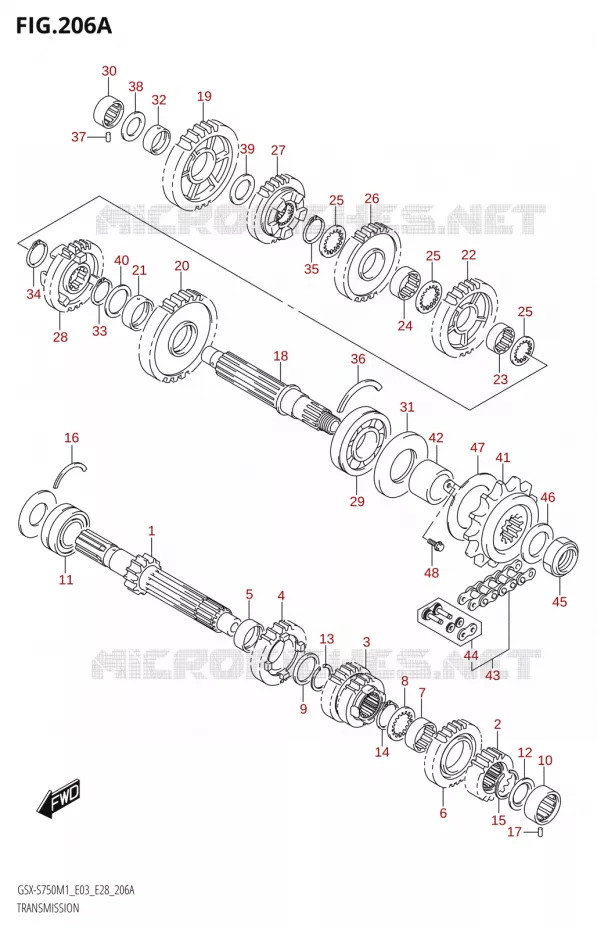

TRANSMISSION Suzuki MOTO 750 GSX-S 2021 GSX-S750 / GSX-S750Z /​ GSX-S750A / ​GSX-S750ZA (E03 E28 )
1
SHAFT COMP, CNTR
SHAFT, COUNTER (NT:14)

24120-35F30-000   2412035F30000

2412035F30000

Unit Price

2
GEAR, 2ND DRIVE
GEAR, 2ND DRIVE (NT:19)

24221-35F00-000   2422135F00000

2422135F00000

Unit Price

3
GEAR, 3RD & 4TH DRIVE

24231-35F20-000   2423135F20000

2423135F20000

Unit Price

4
GEAR, 5TH DRIVE
GEAR, 5TH DRIVE (NT:23)

24251-35F30-000   2425135F30000

2425135F30000

Unit Price

5
BUSH,5TH DRIVE GEAR
BUSH, 5TH DRIVE GEAR

24252-35F00-000   2425235F00000

2425235F00000

Unit Price

6
GEAR, 6TH DRIVE
GEAR, 6TH DRIVE (NT:27)

24261-35F30-000   2426135F30000

2426135F30000

Unit Price

7
BUSH, 6TH DRIVE GEAR

24262-35F10-000   2426235F10000

2426235F10000

Unit Price

8
WASHER,LOCK<br />WASHER,LOCK (27X36X2.5)
WASHER, LOCK
WASHER, LOCK (27X36X2.5)

09167-27003-000   0916727003000

0916727003000

Unit Price

9
SHIM (27X36X2.5)
SHIM (27X36X2.5)

09181-27014-000   0918127014000

0918127014000

Unit Price

10
BEARING (20X34X13.5)

09263-20087-000   0926320087000

0926320087000

Unit Price

11
BEARING<br />BEARING (25X52X20.6)
BEARING
BEARING (25X52X20.6)

09267-25013-000   0926725013000

0926725013000

Unit Price

12
OIL SEAL<br />SEAL,OIL (20X31.2X2.7)
OIL SEAL
SEAL, OIL (20X31.2X2.7)

09285-20006-000   0928520006000

0928520006000

Unit Price

13
CIRCLIP

09380-27006-000   0938027006000

0938027006000

Unit Price

14
CIRCLIP

09380-27006-000   0938027006000

0938027006000

Unit Price

15
CIRCLIP
CIRCLIP

09380-27004-000   0938027004000

0938027004000

Unit Price

16
C RING

09390-58001-000   0939058001000

0939058001000

Unit Price

17
PIN (6X10)
PIN (6X10)

09261-06003-000   0926106003000

0926106003000

Unit Price

18
SHAFT, DRIVE

24131-35F30-000   2413135F30000

2413135F30000

Unit Price

19
GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT:39)

24311-35F20-000   2431135F20000

2431135F20000

Unit Price

20
GEAR, 2ND DRIVEN (NT:39)

24321-35F11-000   2432135F11000

2432135F11000

Unit Price

21
BUSH, 2ND DRIVEN GEAR

24322-35F00-000   2432235F00000

2432235F00000

Unit Price

22
GEAR, 3RD DRIVEN (NT:37)

24331-35F10-000   2433135F10000

2433135F10000

Unit Price

23
BUSH, 3RD DRIVEN GEAR

24332-35F00-000   2433235F00000

2433235F00000

Unit Price

24
BUSH, 3RD DRIVEN GEAR

24332-35F00-000   2433235F00000

2433235F00000

Unit Price

25
WASHER,3RD & 4TH DRIVEN
WASHER, 3RD & 4TH DRIVEN

24333-02F00-000   2433302F00000

2433302F00000

Unit Price

26
GEAR, 4TH DRIVEN (NT:29)

24341-35F10-000   2434135F10000

2434135F10000

Unit Price

27
GEAR, 5TH DRIVEN
GEAR, 5TH DRIVEN (NT:30)

24351-35F10-000   2435135F10000

2435135F10000

Unit Price

28
GEAR, 6TH DRIVEN
GEAR, 6TH DRIVEN (NT:31)

24361-35F30-000   2436135F30000

2436135F30000

Unit Price

29
BEARING (28X70X18)
BEARING (28X70X18)

09262-28025-000   0926228025000

0926228025000

Unit Price

30
BEARING (20X34X13.5)

09263-20087-000   0926320087000

0926320087000

Unit Price

31
SEAL, 34.8X70X6<br />SEAL,OIL (34.8X70X6)
SEAL, 34.8X70X6
SEAL, OIL (34.8X70X6)

09283-36008-000   0928336008000

0928336008000

Unit Price

32
BUSH<br />BUSH (22X26X9)
BUSH
BUSH (22X26X9)

09300-22008-000   0930022008000

0930022008000

Unit Price

33
CIRCLIP

09380-27006-000   0938027006000

0938027006000

Unit Price

34
CIRCLIP

09380-27006-000   0938027006000

0938027006000

Unit Price

35
CIRCLIP

09380-27006-000   0938027006000

0938027006000

Unit Price

36
C RING<br />C RING (67.6X75X2)
C RING
C RING (67.6X75X2)

09390-70001-000   0939070001000

0939070001000

Unit Price

37
PIN (6X10)
PIN (6X10)

09261-06003-000   0926106003000

0926106003000

Unit Price

38
WASHER<br />SHIM (20X34X1)
WASHER
SHIM (20X34X1)

09181-20251-000   0918120251000

0918120251000

Unit Price

39
WASHER<br />SHIM (22X34X1)
WASHER
SHIM (22X34X1)

09181-22223-000   0918122223000

0918122223000

Unit Price

40
WASHER(27X36X1)<br />WASHER (27X36X1.0)
WASHER(27X36X1)
WASHER (27X36X1.0)

09160-27008-000   0916027008000

0916027008000

Unit Price

41
SPROCKET, ENGINE

27510-20A22-000   2751020A22000

2751020A22000

Unit Price

42
SPACER, ENGINE SPROCKET

27531-35F01-000   2753135F01000

2753135F01000

Unit Price

43
CHAIN, DRIVE(RK525SMO8)
CHAIN ASSY, DRIVE (RK 525SMOZ8)

27600-06G40-114   2760006G40114

2760006G40114

Unit Price

44
.JOINT SET, DRIVE CHAIN

27620-06G40-000   2762006G40000

2762006G40000

Unit Price

45
NUT
NUT

09159-20004-000   0915920004000

0915920004000

Unit Price

46
WASHER (25X41X3)
WASHER (25X41X3)

09160-25009-000   0916025009000

0916025009000

Unit Price

47
RETAINER, DRIVE SHAFT OIL SEAL

24751-04K00-000   2475104K00000

2475104K00000

Unit Price

48
SCREW, RECOIL STARTER
BOLT (6X12)

09103-06236-000   0910306236000

0910306236000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki GSX-S 750 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 750 GSX-S 2021

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 750 GSX-S 2021

Select your Suzuki 2021 model

750 GSX-S 2021 GSX-S750 / GSX-S750Z /​ GSX-S750A / ​GSX-S750ZA (E03 E28 )

GSX-S 750

Suzuki GSX-S

Displacement: 750 cc
Year: 2021
Model code GSX-S750 / GSX-S750Z / ​ GSX-S750A / ​GSX-S750ZA (E03 E28 )
