FRAME NOTE : * : ASTERISK SHOWS EXPORT INSPECTION REQUIRED PARTS.

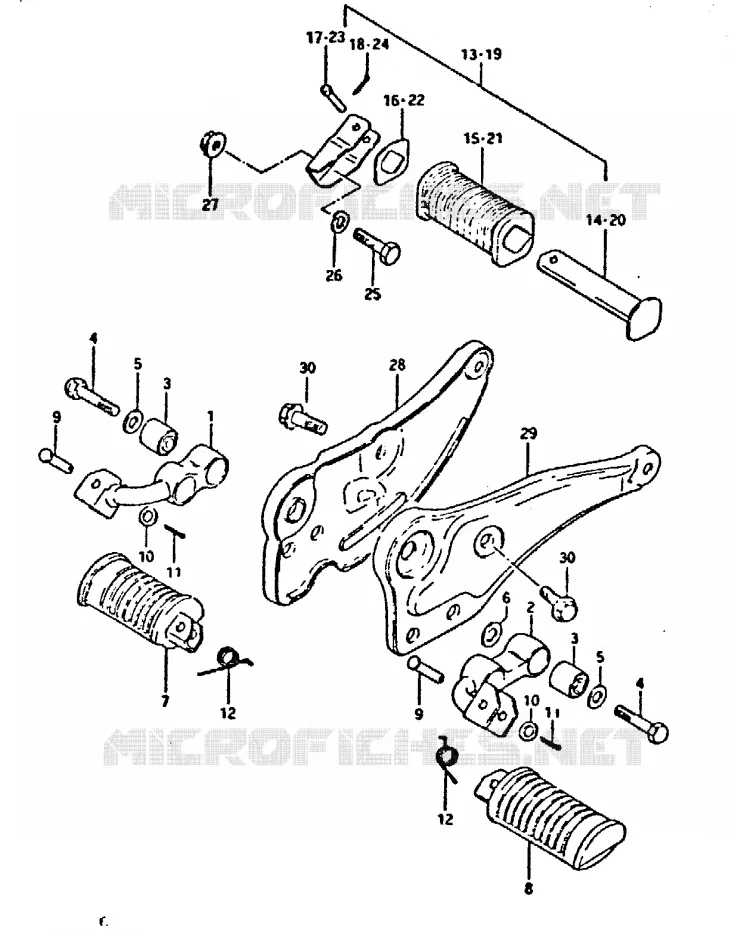

FOOTREST FOR SUZUKI GSX 750 1981

FUEL TANK ESS (MODELE T : 24L)

BAR, FRONT FOOTREST RH

43510-49210-000 4351049210000

Not available

BAR, FRONT FOOTREST LH

43520-49210-000 4352049210000

Not available

SWINGING ARM RR BUSH
BUSHING

09319-10008-000 0931910008000

$16,97

Unit Price

BOLT

09104-10009-000 0910410009000

Not available

WASHER(10.5X20X2.3)

09160-10013-000

09160-10123-000

$3,97

Unit Price

WASHER, 10X20X2.3

09160-10057-000

09160-10142-000

$3,97

Unit Price

WASHER

09160-10058-000 0916010058000

Not available

RUBBER, PILLION FOOTREST, RH

43550-49002-000

43550-37310-000

$47,97

Unit Price

RUBBER, PILLION FOOTREST, LH

43560-49002-000

43560-37310-000

$49,97

Unit Price

FITTING PIN
PIN

09200-08002-000 0920008002000

$3,97

Unit Price

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

04111-20158-000

04111-2015A-000

$2,97

Unit Price

FR FOOTREST SPRING
SPRING

09448-14012-000 0944814012000

$5,97

Unit Price

FOOTREST, PILLION RH

43600-49201-000 4360049201000

Not available

FOOTREST, PILLION LH

43700-49201-000 4370049201000

Not available

.BAR, RH

43610-49201-000 4361049201000

Not available

.BAR, LH

43620-49201-000 4362049201000

Not available

DISCONTINUE
.COVER

43612-49201-000 4361249201000

Not available

DISCONTINUE

43631-49201-000

Not available

.PIN

09200-06010-000 0920006010000

$3,97

Unit Price

04111-20158-000

04111-2015A-000

$2,97

Unit Price

BOLT

01107-10358-000

01500-1035B-000

$5,97

Unit Price

LOCK WASHER

08321-21108-000 0832121108000

Not available

NUT

08316-16108-000

08316-1010B-000

$4,97

Unit Price

BRACKET, MUFFLER RH

43810-45400-000 4381045400000

Not available

BRACKET, MUFFLER LH

43820-45400-000 4382045400000

Not available

BOLT

01527-10207-000 0152710207000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki GSX 750 of GSX. Let us know if you have any questions.
