FUEL COCK (MODEL T) FIG. 50 (H-12) : GSX750EX, GSX750X

FUEL COCK (MODEL X) FOR SUZUKI GSX 750 1981

STAND FIG. 42 (H-4) : GSX750ET, EX; E22, E25, E26

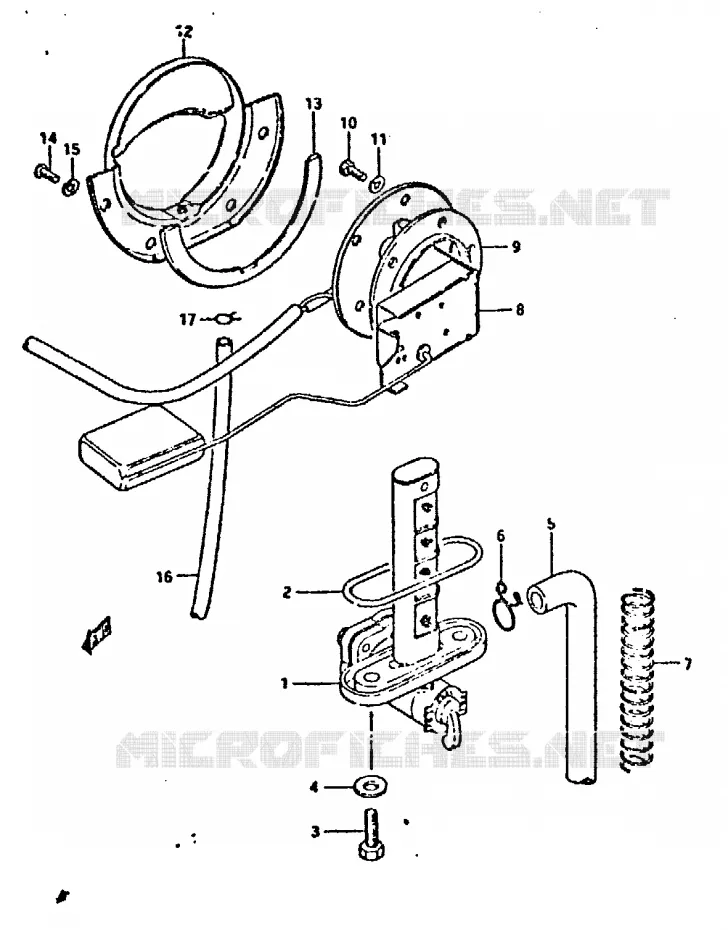

FUEL COCK (MODEL X) Suzuki MOTO 750 GSX 1981 GSX750X(T/X)
1
COCK ASSY, FUEL

44300-34470-000   4430034470000

4430034470000
Not available
2
O RING
O RING

44348-49170-000  

44348-49171-000
 4434849170000

Unit Price

3
BOLT, ST CL COV/ST ID

09128-06024-000  

09103-06212-000
 0912806024000

Unit Price

4
GASKET

09168-06010-000  

0916806010000
Not available
5
HOSE, FUEL (L:270)

09343-07091-000   0934307091000

0934307091000
Not available
6
FUEL HOSE CLIP
FUEL HOSE CLIP

09401-10403-000  

09401-10402-000
 0940110403000

Unit Price

7
SPRING

09440-13020-000   0944013020000

0944013020000
Not available
9
GASKET,FUEL LEVEL GAUGE<br />GASKET
GASKET, FUEL LEVEL GAUGE
GASKET

34825-45100-000   3482545100000

3482545100000

Unit Price

10
BOLT (5*10)

01104-05108-000   0110405108000

0110405108000
Not available
11
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

12
PLATE, FUEL DRAIN

34885-49003-000   3488549003000

3488549003000
Not available
13
DISCONTINUE
DISCONTINUE

34888-49000-000  

3488849000000
Not available
14
SCREW, INTAKE PORT

02112-05088-000   0211205088000

0211205088000
Not available
15
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

16
HOSE, FUEL COCK (L:890ARROW RIGHT350)

09343-05165-000   0934305165000

0934305165000
Not available
17
OIL HOSE CLAMP
OIL HOSE CLAMP

09401-08402-000  

09401-08401-000
 0940108402000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL COCK (MODEL X) of your Suzuki GSX 750 of GSX. Let us know if you have any questions.
