Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM

REAR SHOCK ABSORBER FOR SUZUKI GSX 750 2001

REAR WHEEL

Item numbers

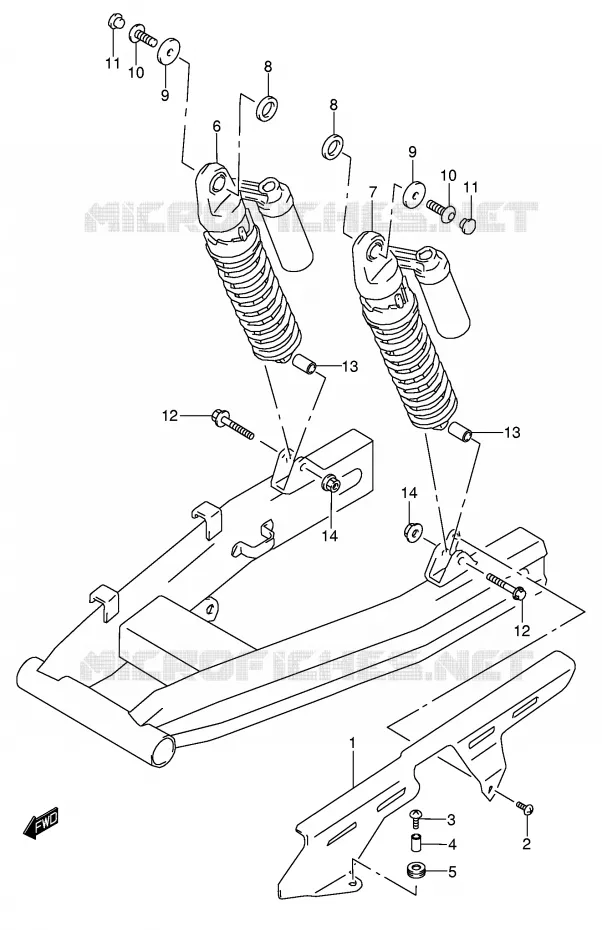

REAR SHOCK ABSORBER Suzuki MOTO 750 GSX 2001 GSX750K1(E4)
1
2
3
4
5
6
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
1
CASE, CHAIN

61311-23E11-000   6131123E11000

6131123E11000
Not available
2
SCREW<br />SCREW, REAR (6X10)
SCREW
SCREW, REAR (6X10)

02142-06107-000   0214206107000

0214206107000

Unit Price

3
SCREW 6 X 16

09136-06011-000  

09136-06017-000
 0913606011000

Unit Price

4
SPACER (6.2X8.3X6.1)
SPACER (6.2X8.3X6.1)

09180-06092-000   0918006092000

0918006092000

Unit Price

5
FRAME COVER CUSHION
FRAME COVER CUSHION

09320-08013-000  

09320-08509-000
 0932008013000

Unit Price

6
ABSORBER ASSY, REAR SHOCK RH

62103-03F11-000   6210303F11000

6210303F11000
Not available
7
ABSORBER ASSY, REAR SHOCK LH

62104-03F11-000   6210403F11000

6210403F11000
Not available
8
WASHER, 14.5X30X
WASHER, UPPER INNER (14.5X30X3.2)

09160-14062-000   0916014062000

0916014062000

Unit Price

9
WASHER, 8.5X30X2.3

09160-08138-000  

09160-08503-000
 0916008138000

Unit Price

10
BOLT(8X20)
BOLT, UPPER (8X20)

09106-08094-000   0910608094000

0910608094000

Unit Price

11
CAP,MUF SPRT BOLT
CAP, MUF SPRT BOLT

09250-06008-000  

09250-06016-000
 0925006008000

Unit Price

12
BOLT(10X45)<br />BOLT, LOWER (10X45)
BOLT(10X45)
BOLT, LOWER (10X45)

09103-10284-000   0910310284000

0910310284000

Unit Price

13
SPACER(10.2X14X20.7)
SPACER (10.2X14X20.70)

09180-10139-000   0918010139000

0918010139000

Unit Price

14
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR SHOCK ABSORBER of your Suzuki INAZUMA 750 of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 750 GSX 2001

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 750 GSX 2001

Select your Suzuki 2001 model

750 GSX 2001 GSX750K1(E4)

INAZUMA 750

Suzuki GSX

Displacement: 750 cc
Year: 2001
Model code GSX750K1(E4)
