Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FOOTREST (MODEL F / G) REFER TO FIG.39 (G-10) FOR MODEL H/J/K/L/M

FOOTREST (MODEL H / J / K / L / M) FOR SUZUKI INTRUDER 750 1990

FUEL TANK (MODEL F / G / H / J / K) REFER TO FIG.40A(G-12) FOR MODEL L/M

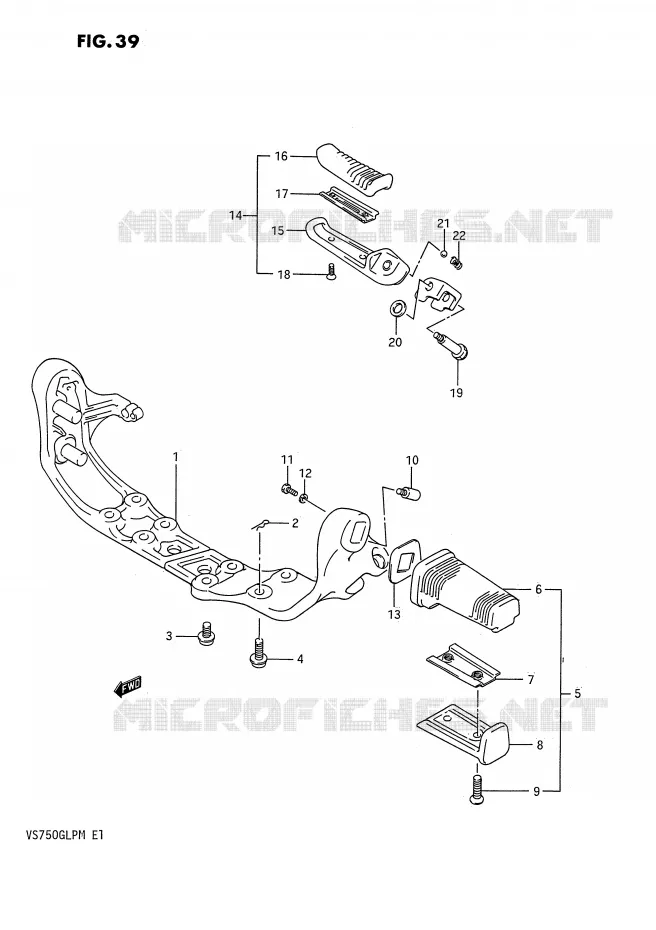

FOOTREST (MODEL H/J/K/L/M) Suzuki MOTO 750 INTRUDER 1990 VS750GLPL(E1)
1
BRACKET, FR FOOTREST

43510-38A41-000  

43510-38E01-000
 4351038A41000

Unit Price

1
BRACKET, FRONT FOOTREST

43510-38A40-000   4351038A40000

4351038A40000
Not available
1
BRACKET, FRONT FOOTREST

43510-38A50-000   4351038A50000

4351038A50000
Not available
2
PIN
PIN

09385-08005-000   0938508005000

0938508005000

Unit Price

2
PIN

09385-08002-000   0938508002000

0938508002000
Not available
3
BOLT

07120-08208-000  

07120-0820A-000
 0712008208000

Unit Price

4
BOLT, 8X25
BOLT, OUTER

09106-08064-000   0910608064000

0910608064000

Unit Price

5
FOOTREST ASSY, FR, R

43501-38B10-000  

43501-38B11-000
 4350138B10000

Unit Price

5
FOOTREST ASSY, FR, L

43502-38B10-000  

43502-38B11-000
 4350238B10000

Unit Price

6
RUBBER, FR FOOTREST

43551-38B00-000  

43551-38B01-000
 4355138B00000

Unit Price

7
PLATE, RUBBER STOPPER
PLATE, FRONT FOOTREST

43580-38B10-000   4358038B10000

4358038B10000

Unit Price

8
COVER, FR FOOTREST

43585-38B10-000  

43585-38B11-000
 4358538B10000

Unit Price

9
SCREW

02132-05207-000  

02122-05203-000
 0213205207000

Unit Price

9
SCREW

09127-05018-000   0912705018000

0912705018000

Unit Price

10
BOLT

43641-38B00-000  

09106-06101-000
 4364138B00000

Unit Price

11
BOLT

01107-05127-000  

01500-05127-000
 0110705127000

Unit Price

12
WASHER, LOCK

08321-21057-000  

08321-0105A-000
 0832121057000

Unit Price

13
WASHER, FR FOOTREST

43546-38B00-000  

43546-38B01-000
 4354638B00000

Unit Price

14
FOOTREST ASSY, PILLION RH

43600-38A00-000   4360038A00000

4360038A00000
Not available
14
DISCONTINUE
FOOTREST ASSY, PILLION RH

43600-38A01-000  

4360038A01000
Not available
14
FOOTREST ASSY, PILLION LH

43700-38A00-000   4370038A00000

4370038A00000
Not available
14
DISCONTINUE

43700-38A01-000  

4370038A01000
Not available
15
43600-38A01
.BAR, PILLION FOOTREST RH

43610-38A00-000  

4361038A00000
Not available
15
DISCONTINUE

43710-38A00-000  

4371038A00000
Not available
16
RUBBER, PILLION FOOTREST

43612-38A00-000  

43612-38A10-000
 4361238A00000

Unit Price

17
PLATE, RUBBER STOPPER

43632-38A00-000   4363238A00000

4363238A00000

Unit Price

18
SCREW

02132-05167-000  

02122-05167-000
 0213205167000

Unit Price

18
SCREW

09127-05017-000   0912705017000

0912705017000

Unit Price

19
BOLT

09111-06050-000   0911106050000

0911106050000

Unit Price

20
SHIM

08221-08164-000   0822108164000

0822108164000

Unit Price

21
STEEL BALL 7/32<br />BALL
STEEL BALL 7/32
BALL

06111-07004-000   0611107004000

0611107004000

Unit Price

22
SPRING

09440-05031-000   0944005031000

0944005031000

Unit Price
