STARTER MOTOR CLUTCH

CAMSHAFT - VALVES FOR SUZUKI INTRUDER 750 1990

TIMING

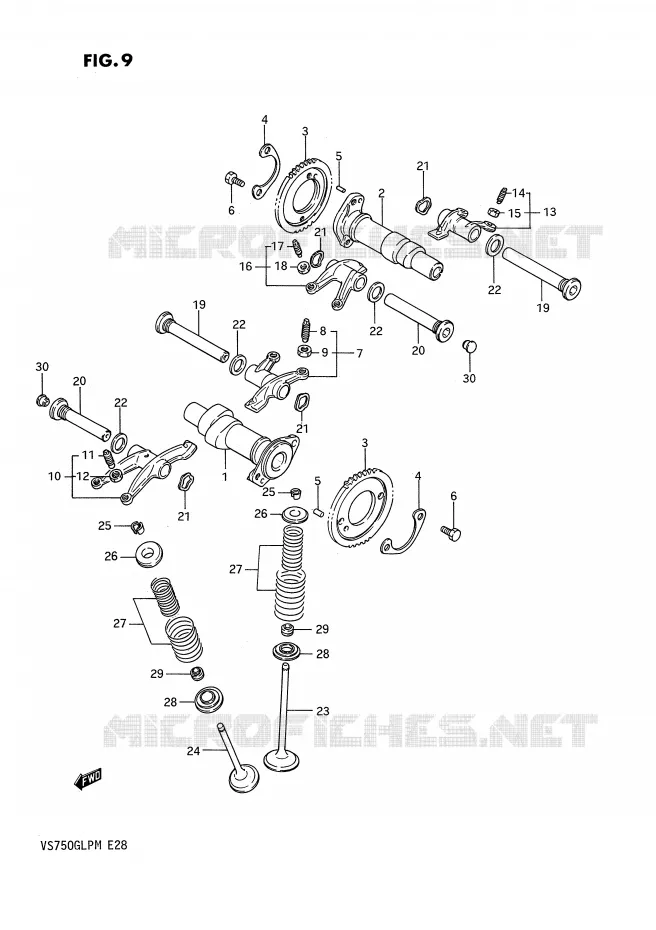

CAMSHAFT - VALVES Suzuki MOTO 750 INTRUDER 1990 VS750GLPL(E28)
1
CAMSHAFT, FR
CAMSHAFT, FRONT

12711-38A03-000   1271138A03000

1271138A03000

Unit Price

2
DISCONTINUE
CAMSHAFT, REAR

12713-38A03-000   1271338A03000

1271338A03000
Not available
3
SPROCKET, CAMSHAFT(NT:42)
SPROCKET, CAMSHAFT

12741-37400-000   1274137400000

1274137400000

Unit Price

4
WASHER, SPROCKET

12747-44000-000  

12747-44001-000
 1274744000000

Unit Price

5
PIN
PIN

04221-05109-000   0422105109000

0422105109000

Unit Price

6
BOLT(6X12.5)
BOLT

09111-06027-000   0911106027000

0911106027000

Unit Price

7
ARM, INTAKE VALVE ROCKER FR
ARM, VALVE ROCKER FRONT, IN

12840-38A01-000   1284038A01000

1284038A01000

Unit Price

8
SCREW, TAPPET ADJUSTING
SCREW

12842-38A00-000   1284238A00000

1284238A00000

Unit Price

9
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

10
ARM, EXHAUST VALVE ROCKER FR
ARM, VALVE ROCKER FRONT, EX

12850-38A01-000   1285038A01000

1285038A01000

Unit Price

11
SCREW, TAPPET ADJUSTING
SCREW

12842-38A00-000   1284238A00000

1284238A00000

Unit Price

12
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

13
ARM, INTAKE VALVE ROCKER RR
ARM, VALVE ROCKER REAR, IN

12845-38A01-000   1284538A01000

1284538A01000

Unit Price

14
SCREW, TAPPET ADJUSTING
SCREW

12842-38A00-000   1284238A00000

1284238A00000

Unit Price

15
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

16
ARM, EXHAUST VALVE ROCKER RR
ARM, VALVE ROCKER REAR, EX

12855-38A01-000   1285538A01000

1285538A01000

Unit Price

17
SCREW, TAPPET ADJUSTING
SCREW

12842-38A00-000   1284238A00000

1284238A00000

Unit Price

18
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

19
DISCONTINUE

12861-38A00-000  

1286138A00000
Not available
20
DISCONTINUE

12871-38A00-000  

1287138A00000
Not available
21
WASHER, V LKR ARM SFT
WASHER

09164-12018-000   0916412018000

0916412018000

Unit Price

22
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

23
VALVE, INTAKE

12911-38A02-000  

12911-38A10-000
 1291138A02000

Unit Price

24
VALVE, EXHAUST

12912-38A02-000  

12912-38A10-000
 1291238A02000

Unit Price

25
COTTER, VALVE
COTTER, VALVE

12932-24400-000   1293224400000

1293224400000

Unit Price

26
RETAINER, VALVE SPRING

12931-33200-000  

12931-33201-000
 1293133200000

Unit Price

27
SPRING SET, VALVE

12920-38A00-000   1292038A00000

1292038A00000

Unit Price

28
SEAT, VALVE SPRING

12933-33200-000  

12933-33201-000
 1293333200000

Unit Price

29
SEAL, OIL(5.5X11X8.2)

09289-05003-000  

09289-05015-000
 0928905003000

Unit Price

30
CAP(OD:12)<br />CAP
CAP(OD:12)
CAP

09250-08012-000   0925008012000

0925008012000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
