CAMSHAFT - VALVES

TIMING FOR SUZUKI KINGQUAD 750 2012

THROTTLE BODY

Item numbers

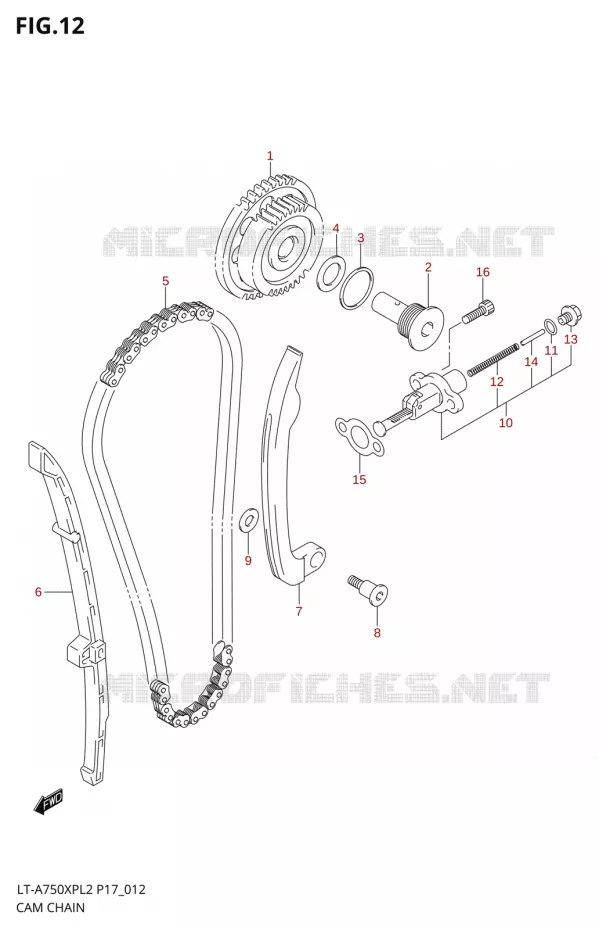

TIMING Suzuki QUAD 750 KINGQUAD 2012 LT-A750XP L2/LT-A750XPZ L2 (P17,P24)
1
2
3
4
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
1
GEAR, CAM CHAIN IDLER

12750-31G00-000   1275031G00000

1275031G00000

Unit Price

2
SHAFT,IDLER NO.2<br />SHAFT, CAM CHAIN IDLER
SHAFT, IDLER NO.2
SHAFT, CAM CHAIN IDLER

12755-02F01-000   1275502F01000

1275502F01000

Unit Price

3
GASKET<br />GASKET (26.5X30.5X1)
GASKET
GASKET (26.5X30.5X1)

09168-26001-000   0916826001000

0916826001000

Unit Price

4
SHIM (15X24X0.9)
SHIM (15X24X0.9)

09181-15164-000   0918115164000

0918115164000

Unit Price

4
SHIM (15X24X1)
SHIM (15X24X1)

09181-15166-000   0918115166000

0918115166000

Unit Price

4
SHIM (15X24X1.1)
SHIM (15X24X1.1)

09181-15172-000   0918115172000

0918115172000

Unit Price

4
SHIM (15X24X1.2)
SHIM (15X24X1.2)

09181-15176-000   0918115176000

0918115176000

Unit Price

4
SHIM (15X24X1.3)
SHIM (15X24X1.3)

09181-15181-000   0918115181000

0918115181000

Unit Price

4
SHIM (15X24X1.4)
SHIM (15X24X1.4)

09181-15182-000   0918115182000

0918115182000

Unit Price

5
CHAIN, CAMSHAFT DRIVE

12760-31G00-000   1276031G00000

1276031G00000

Unit Price

6
GUIDE, CAM CHAIN

12771-31G00-000   1277131G00000

1277131G00000

Unit Price

7
TENSIONER, CAM CHAIN

12811-31G00-000  

12811-31G01-000
 1281131G00000

Unit Price

8
BOLT, CAM CHAIN TENSIONER

12812-31G00-000  

1281231G00000
Not available
9
WASHER

08211-08202-000   0821108202000

0821108202000

Unit Price

10
ADJUSTER ASSY, TENSIONER

12830-19B02-000   1283019B02000

1283019B02000

Unit Price

11
.O RING
.O RING

12832-02A00-000   1283202A00000

1283202A00000

Unit Price

12
.SPRING

12833-19B00-000   1283319B00000

1283319B00000

Unit Price

13
.PLUG

12834-19B00-000   1283419B00000

1283419B00000

Unit Price

14
.BAR

12835-19B00-000   1283519B00000

1283519B00000

Unit Price

15
GASKET, TENSIONER ADJUSTER
GASKET, TENSIONER ADJUSTER

12837-19B10-000   1283719B10000

1283719B10000

Unit Price

16
BOLT

07130-0620A-000  

07130-0620B-000
 071300620A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki KINGQUAD 750 AXI 4WD of KINGQUAD. Let us know if you have any questions.
