LEFT HAND REAR WHEEL (LT-A750XPL2 P28)

LEFT HAND REAR WHEEL (LT-A750XPL2 P33) FOR SUZUKI KINGQUAD 750 2012

LEFT HAND REAR WHEEL (LT-A750XPZL2 P28)

Item numbers

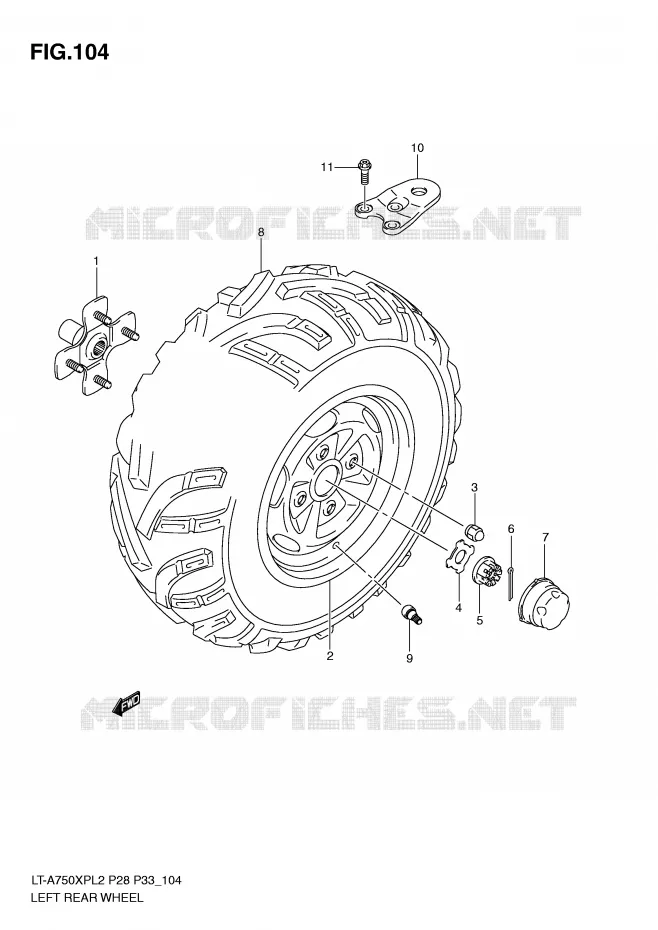

LEFT HAND REAR WHEEL (LT-A750XPL2 P33) Suzuki QUAD 750 KINGQUAD 2012 LT-A750XPL2(P28)
1
2
2
2
2
3
4
5
6
7
8
9
10
11
1
HUB, RR WHEEL

64110-31G01-000  

64110-31G10-000
 6411031G01000

Unit Price

2
RIM, RR WHEEL(12X7.5AT)

65310-31G20-YSR  

65310-31G60-291
 6531031G20YSR

Unit Price

2
DISCONTINUE
RIM, REAR WHEEL (12X7.5AT)

65310-31G30-000   6531031G30000

6531031G30000
Not available
2
DISCONTINUE
RIM, REAR WHEEL (12X7.5AT) (SILVER)

65310-31G60-YUM   6531031G60YUM

6531031G60YUM
Not available
3
NUT, WHEEL SET
NUT

09159-10114-000   0915910114000

0915910114000

Unit Price

4
WASHER, HUB

64723-03G00-000   6472303G00000

6472303G00000

Unit Price

5
NUT

09141-20008-000   0914120008000

0914120008000

Unit Price

6
PIN
COTTER PIN

04111-4035A-000   041114035A000

041114035A000

Unit Price

7
CAP, WHEEL CTR
CAP, WHEEL CENTER

54725-09F01-000   5472509F01000

5472509F01000

Unit Price

8
DISCONTINUE

65110-31G10-000  

6511031G10000
Not available
9
VALVE ASSY, WHEEL RIM (TR412)
VALVE ASSY, WHEEL RIM (TR412)

43130-24A00-000   4313024A00000

4313024A00000

Unit Price

10
PLATE, TRAILER TOW

95211-31G00-000   9521131G00000

9521131G00000

Unit Price

11
BOLT (10X30)

09103-10366-000   0910310366000

0910310366000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEFT HAND REAR WHEEL (LT-A750XPL2 P33) of your Suzuki KINGQUAD 750 AXI 4WD of KINGQUAD. Let us know if you have any questions.
