ALTERNATOR COVER

OIL PUMP FOR SUZUKI KINGQUAD 750 2015

FUEL PUMP

Item numbers

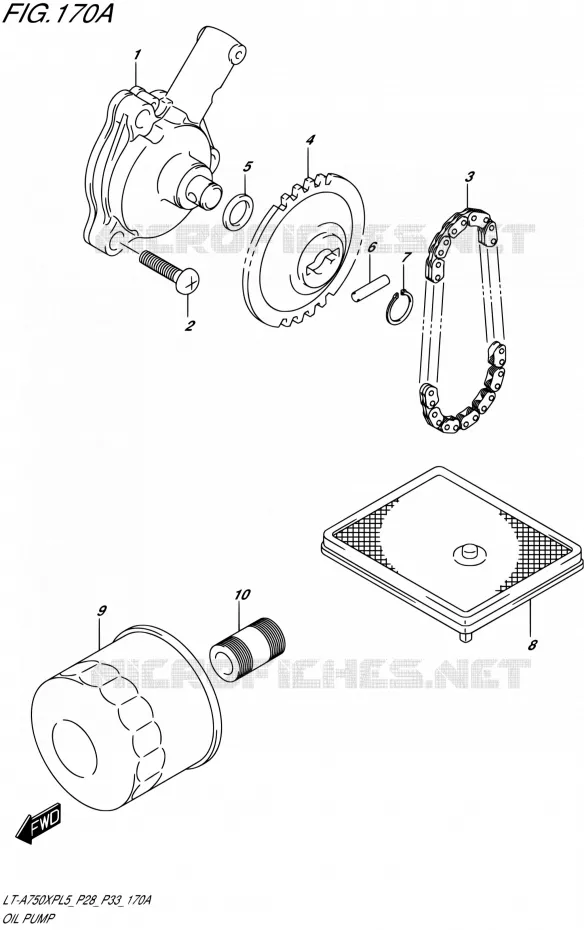

OIL PUMP Suzuki QUAD 750 KINGQUAD 2015 LT-A750XP L5/LT-A750XPZ L5 (P03,P28,P33)
1
2
3
4
5
6
7
8
9
10
1
PUMP ASSY, ENGINE OIL
PUMP ASSY, ENG OIL

16400-31G00-000   1640031G00000

1640031G00000

Unit Price

2
SCREW

09125-06035-000  

02112-06253-000
 0912506035000

Unit Price

3
CHAIN, OIL PUMP DRIVE
CHAIN, OIL PUMP DRIVE (82RH2005-60M)

16310-31G00-000   1631031G00000

1631031G00000

Unit Price

4
SPROCKET, OIL PUMP DRIVEN
SPROCKET, OIL PUMP DRIVEN (NT:31)

16331-31G00-000   1633131G00000

1633131G00000

Unit Price

5
SHIM (10X18X0.5)
SHIM (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

6
GR SHIFT CAM DR PIN<br />PIN (4X15.8)
GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

7
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

8
STRAINER COMP,ENG OIL
STRAINER COMP, ENG OIL

16520-32E00-000  

16520-32E01-000
 1652032E00000

Unit Price

9
FILTER ASSY,ENGINE OIL
FILTER ASSY, ENGINE OIL

16510-07J00-000  

16510-07J10-000
 1651007J00000

Unit Price

10
UNION,OIL STAND<br />UNION, OIL FILTER STAND
UNION, OIL STAND
UNION, OIL FILTER STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of KINGQUAD. Let us know if you have any questions.
