BRAKE PEDAL

HANDLEBAR FOR SUZUKI KINGQUAD 750 2015

HANDGRIPS - LEVERS

Item numbers

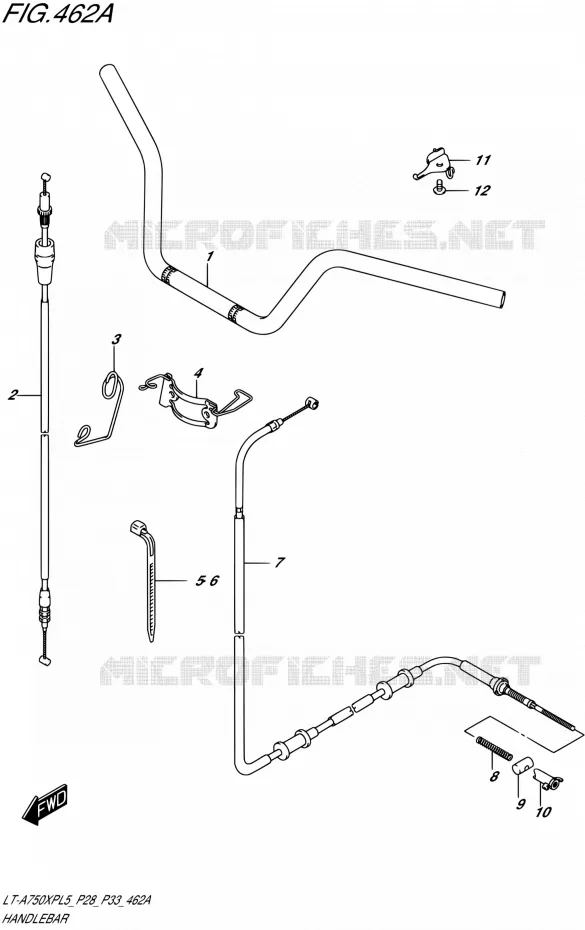

HANDLEBAR Suzuki QUAD 750 KINGQUAD 2015 LT-A750XP L5/LT-A750XPZ L5 (P03,P28,P33)
1
2
3
4
5
6
7
8
9
10
11
12
1
56111-31G40
HANDLE BAR

56111-31G20-000   5611131G20000

5611131G20000
Not available
2
CABLE ASSY, THROTTLE

58300-31G20-000  

58300-31G21-000
 5830031G20000

Unit Price

3
GUIDE, THROTTLE CABLE

58626-31G20-000   5862631G20000

5862631G20000

Unit Price

4
GUIDE, CABLE

58620-31G20-000   5862031G20000

5862031G20000

Unit Price

5
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

6
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

7
CABLE, PARKING BRAKE

58810-31G30-000  

58810-31G31-000
 5881031G30000

Unit Price

8
SPRING

09440-08042-000   0944008042000

0944008042000

Unit Price

9
PIN, CAM LEVER
PIN

09209-13006-000  

0920913006000
Not available
10
NUT

09150-06015-000   0915006015000

0915006015000

Unit Price

11
GUIDE, PARKING CABLE

58620-31G10-000   5862031G10000

5862031G10000

Unit Price

12
SCREW

03541-0616B-000   035410616B000

035410616B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR of your Suzuki of KINGQUAD. Let us know if you have any questions.
