REAR WHEEL AXLE

BRAKE PEDAL FOR SUZUKI KINGQUAD 750 2015

HANDLEBAR

Item numbers

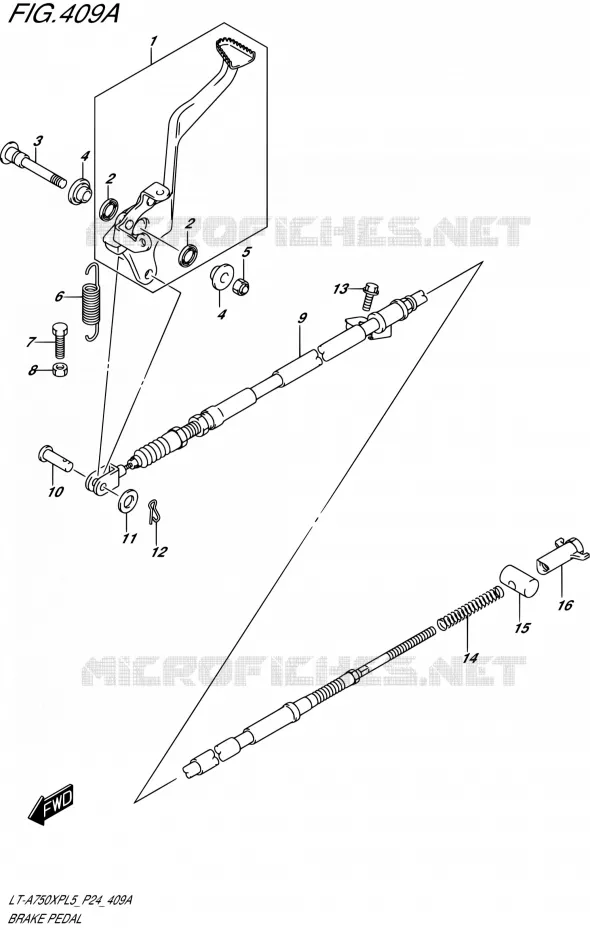

BRAKE PEDAL Suzuki QUAD 750 KINGQUAD 2015 LT-A750XP L5 (P24)
1
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
1
PEDAL ASSY, BRAKE
PEDAL, BRAKE

43100-31GB0-000   4310031GB0000

4310031GB0000

Unit Price

2
SEAL DUST
.OIL SEAL (15X21X3)

09284-15006-000   0928415006000

0928415006000

Unit Price

3
SHAFT, BRAKE PEDAL

43142-31GB0-000   4314231GB0000

4314231GB0000

Unit Price

4
WASHER

43212-31GB0-000   4321231GB0000

4321231GB0000

Unit Price

5
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

6
SPRING

09443-11036-000   0944311036000

0944311036000

Unit Price

7
BOLT
BOLT

01500-0620A-000   015000620A000

015000620A000

Unit Price

8
NUT
NUT

08310-0006A-000  

083100006A000
Not available
9
CABLE, RR BRAKE
CABLE, REAR BRAKE

58510-31G00-000   5851031G00000

5851031G00000

Unit Price

10
RR BRK CONNECTOR<br />PIN (5.8X17.5)
RR BRK CONNECTOR
PIN (5.8X17.5)

09200-05001-000   0920005001000

0920005001000

Unit Price

11
WASHER
WASHER

08322-0106B-000   083220106B000

083220106B000

Unit Price

12
CLIP

09385-06012-000   0938506012000

0938506012000

Unit Price

13
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

14
SPRING

09440-08042-000   0944008042000

0944008042000

Unit Price

15
PIN, CAM LEVER
PIN

09209-13006-000  

0920913006000
Not available
16
NUT

09150-06015-000   0915006015000

0915006015000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the BRAKE PEDAL of your Suzuki of KINGQUAD. Let us know if you have any questions.
