Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CASING FOR SUZUKI KINGQUAD 750 2016

CASING

Item numbers

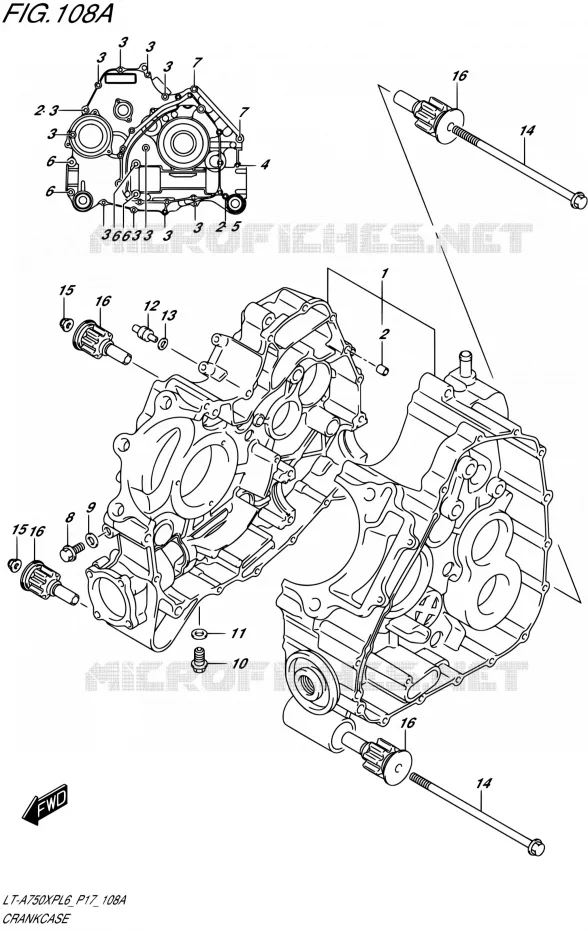

CASING Suzuki QUAD 750 KINGQUAD 2016 LT-A750XP L6/LT-A750XPZ L6 (P17)
1
2
2
2
3
3
3
3
3
3
3
3
3
3
3
4
5
6
6
6
6
7
7
8
9
10
11
12
13
14
14
15
15
16
16
16
16
1
CRANKCASE SET

11300-31811-000   1130031811000

1130031811000

Unit Price

2
PIN 11X16<br />.PIN
PIN 11X16
.PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

3
.BOLT
.BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

4
.BOLT

01547-0680A-000   015470680A000

015470680A000

Unit Price

5
.BOLT

01547-0690A-000   015470690A000

015470690A000

Unit Price

6
.BOLT

01550-0850A-000   015500850A000

015500850A000

Unit Price

7
.BOLT

01550-0875A-000   015500875A000

015500875A000

Unit Price

8
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

9
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

10
PLUG, T.D.C.

09247-12102-000  

09247-12104-000
 0924712102000

Unit Price

11
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
12
JET, OIL GALLERY
JET, OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

13
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

14
BOLT, ENG MTG, L195
BOLT (10X195)

09103-10118-000   0910310118000

0910310118000

Unit Price

15
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

16
BUSH, ENGINE MOUNTING
BUSH, ENG MTG

11651-31G10-000   1165131G10000

1165131G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki of KINGQUAD. Let us know if you have any questions.
