CRANKSHAFT FOR SUZUKI KINGQUAD 750 2018

STARTER MOTOR CLUTCH

Item numbers

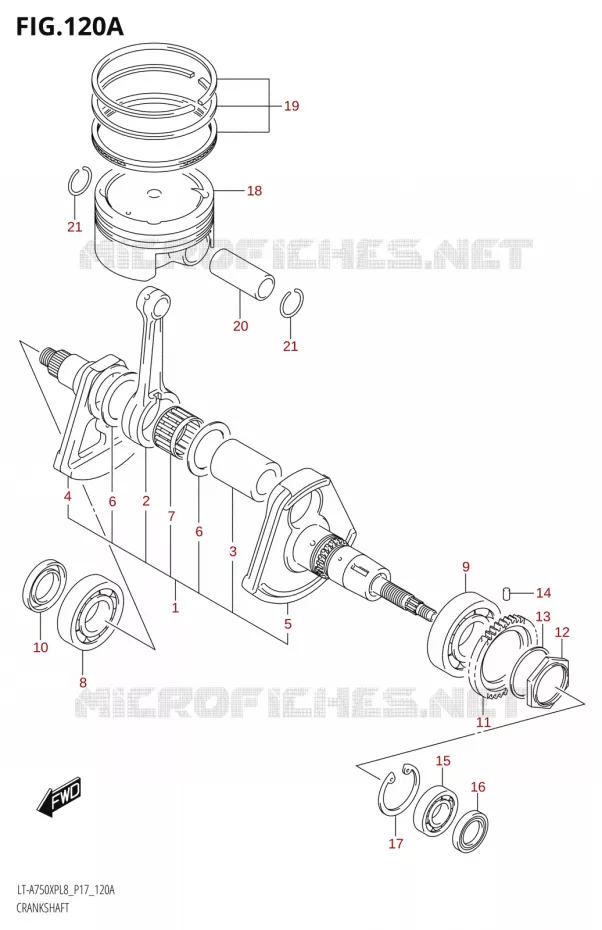

CRANKSHAFT Suzuki QUAD 750 KINGQUAD 2018 LT-A750XP L8 (P17)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
1
CRANKSHAFT ASSY

12200-31G31-000  

12200-31G40-000
 1220031G31000

Unit Price

2
CONNECTING ROD
.CONNROD

12161-31G01-000   1216131G01000

1216131G01000

Unit Price

3
.PIN, CRANK

12210-31D00-000   1221031D00000

1221031D00000

Unit Price

4
CRANKSHAFT, R
.CRANKSHAFT RH

12220-31G20-000   1222031G20000

1222031G20000

Unit Price

5
CRANKSHAFT, L
.CRANKSHAFT LH

12261-31G10-000   1226131G10000

1226131G10000

Unit Price

6
.WASHER (41X61X1)

09160-41002-000   0916041002000

0916041002000

Unit Price

7
BEARING, CRANK PIN

09263-41008-000  

09263-41009-000
 0926341008000

Unit Price

8
BEARING, CRANKSHAFT, R
BEARING

12223-31G02-000   1222331G02000

1222331G02000

Unit Price

9
BEARING (45X85X19)

09262-45007-000   0926245007000

0926245007000

Unit Price

10
SEAL, OIL(34X52X6)
OIL SEAL (34X52X6)

09282-34001-000   0928234001000

0928234001000

Unit Price

11
GEAR, CRANK BALANCER DRIVE
GEAR, CRANK BALANCER DRIVE (NT:43)

12661-31G01-000   1266131G01000

1266131G01000

Unit Price

12
NUT, CRANK BALANCER DRIVE GEAR

12664-31G00-000   1266431G00000

1266431G00000

Unit Price

13
WASHER (45X60X1.2)

09160-45006-000   0916045006000

0916045006000

Unit Price

14
KNOCK PIN, SPROCKET
PIN (5X8)

09261-05005-000   0926105005000

0926105005000

Unit Price

15
BEARING, ROLLER KOYO<br />BEARING (25X47X8)
BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000   0926225006000

0926225006000

Unit Price

16
SEAL, OIL(25X42X6)
OIL SEAL (25X42X6)

09283-25095-000   0928325095000

0928325095000

Unit Price

17
CIRCLIP, CRANKSH
CIRCLIP

08331-41479-000   0833141479000

0833141479000

Unit Price

18
PISTON
PISTON (YELLOW)

12111-31G50-0F0   1211131G500F0

1211131G500F0

Unit Price

19
RING SET, PISTON

12140-31G50-000   1214031G50000

1214031G50000

Unit Price

20
PIN, PISTON

12151-31G10-000   1215131G10000

1215131G10000

Unit Price

21
CIRCLIP

09381-23003-000   0938123003000

0938123003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki KINGQUAD 750 AXI 4WD of KINGQUAD. Let us know if you have any questions.
