GEAR SHIFTING ASSY

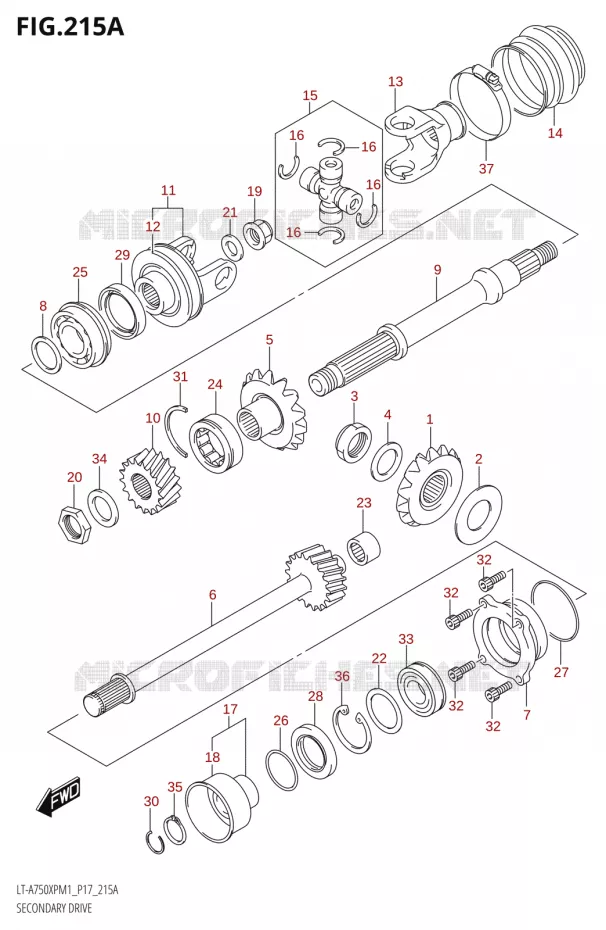

DRIVESHAFT FOR SUZUKI KINGQUAD 750 2021

DRIVESHAFTQUE (AVANT)

Item numbers

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVE BEVEL (NT:15)

24911-31G00-000 2491131G00000

$223,97

Unit Price

SHIM SET, SEC DRIVE BEVEL

24935-03811-000 2493503811000

$137,97

Unit Price

NUT 20MM
NUT

09140-20012-000 0914020012000

$5,97

Unit Price

WASHER
SHIM (20X32X1)

09181-20223-000 0918120223000

$4,97

Unit Price

GEAR, SEC DRIVEN BEVEL
GEAR, SEC DRIVEN BEVEL (NT:17)

24921-31G10-000 2492131G10000

$256,97

Unit Price

24961-31G50
SHAFT, SEC OUTPUT, FR (NT:18)

24961-31G40-000 2496131G40000

Not available

HOUSING, FR OUTPUT SHAFT BRG

24965-31G00-000 2496531G00000

$35,97

Unit Price

SHIM SET, SEC DRIVEN BEVEL
SHIM SET

24945-03811-000 2494503811000

$111,97

Unit Price

SHAFT, SEC DRIVEN OUTPUT RR
SHAFT, SEC OUTPUT, RR

24971-31G10-000 2497131G10000

$204,97

Unit Price

GEAR, SEC DRIVEN OUTPUT SHAFT
GEAR, SEC DRIVEN OUTPUT (NT:18)

24972-31G20-000 2497231G20000

$106,97

Unit Price

YOKE, RR DRIVE OUTPUT

27130-31G10-000 2713031G10000

$150,97

Unit Price

.FLANGE, OUTPUT YOKE BOOT

27592-31G30-000 2759231G30000

$19,97

Unit Price

YOKE, PROP SHAFT JOINT RR

27141-34K00-000 2714134K00000

$109,97

Unit Price

BOOT, RR PROP SHAFT
BOOT, REAR OUTPUT JOINT

27153-31G01-000 2715331G01000

$25,97

Unit Price

JOINT SET, UNIVERSAL RR

27200-73814-000 2720073814000

$82,97

Unit Price

RING, SNAP
.SNAP RING

09380-25005-000 0938025005000

$2,97

Unit Price

COLLAR, FR DRIVE OUTPUT
COLLAR, FRONT DRIVE

27590-31G00-000 2759031G00000

$65,97

Unit Price

.PLATE, OUTPUT OIL SEAL

27592-31G00-000 2759231G00000

$18,97

Unit Price

NUT

09159-16003-000 0915916003000

$5,97

Unit Price

NUT, PRIMARY SHAFT
NUT

09159-22005-000 0915922005000

$37,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER (16X30X3)

09160-16026-000 0916016026000

$6,97

Unit Price

SHIM, T:1.0
SHIM (40X52X1)

09181-40195-000 0918140195000

$9,97

Unit Price

BEARING, FRONT OUTPUT
BEARING (25X37X17)

09263-25068-000 0926325068000

$69,97

Unit Price

BEARING
BEARING (30X50X17)

09263-30050-000 0926330050000

$71,97

Unit Price

BEARING, REAR OUTPUT
BEARING (25X52X20.6)

09267-25014-000 0926725014000

$127,97

Unit Price

O RING
O RING (D:1.9, ID:24.5)

09280-25005-000 0928025005000

$4,97

Unit Price

O RING (D:3.5, ID:65.2)

09280-57002-000 0928057002000

$4,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL (34X52X9)

09283-34008-000 0928334008000

$32,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL (34X52X9)

09283-34008-000 0928334008000

$32,97

Unit Price

CIRCLIP PISTON PIN
SNAP RING

09381-21002-000 0938121002000

$2,97

Unit Price

C RING

09390-50002-000 0939050002000

$4,97

Unit Price

BOLT

07130-0620A-000

07130-0620B-000

$4,97

Unit Price

BEARING (25X52X15)

09262-25003-000 0926225003000

$33,97

Unit Price

WASHER

08211-22365-000 0821122365000

$7,97

Unit Price

CIRCLIP

08331-31259-000 0833131259000

$3,97

Unit Price

CIRCLIP

08331-41529-000 0833141529000

$6,97

Unit Price

CLAMP

09402-00512-000 0940200512000

$23,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki KINGQUAD 750 AXI 4WD DIRECTION ASSISTÉE of KINGQUAD. Let us know if you have any questions.
