Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

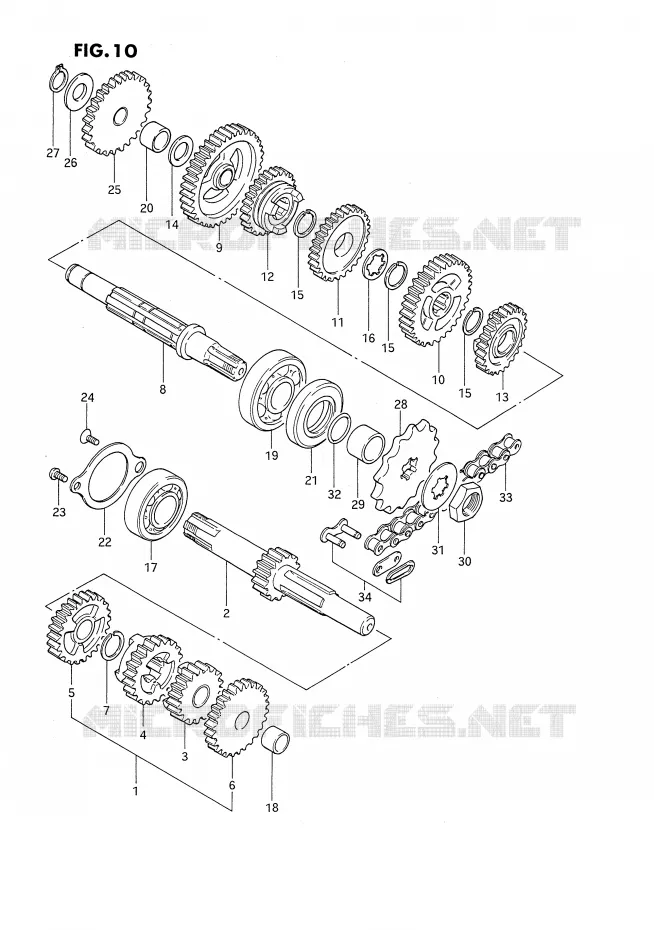

TRANSMISSION FOR SUZUKI DS 80 1985

GEAR SHIFTING ASSY

Item numbers

DISCONTINUED

24120-46001-000 2412046001000

Not available

COUNTERSHAFT ASSY

24120-46002-000 2412046002000

Not available

SHAFT, COUNTER(NT:13)
COUNTERSHAFT (NT:15)

24121-46001-000 2412146001000

$147,97

Unit Price

GEAR, 2ND DRIVE (NT:19)

24220-46000-000 2422046000000

$55,97

Unit Price

GEAR, 3RD DRIVE (NT:22)

24231-46001-000 2423146001000

$69,97

Unit Price

GEAR, 4TH DRIVE (NT:24)

24241-46000-000 2424146000000

$71,97

Unit Price

GEAR, 5TH DRIVE

24251-46001-000

24251-46002-000

$87,97

Unit Price

CIRCLIP

09380-17007-000 0938017007000

$2,97

Unit Price

SHAFT, DRIVE
DRIVESHAFT

24131-46000-000 2413146000000

$161,97

Unit Price

GEAR, 1ST DRIVEN (NT:35)

24310-46001-000 2431046001000

$69,97

Unit Price

GEAR, 2ND DRIVEN (NT:32)

24321-46001-000 2432146001000

$72,97

Unit Price

GEAR, 3RD DRIVEN (NT:29)

24331-46000-000 2433146000000

$69,97

Unit Price

GEAR, 4TH DRIVEN(NT:36)
GEAR, 4TH DRIVEN (NT:26)

24341-46000-000 2434146000000

$69,97

Unit Price

GEAR, 5TH DRIVEN (NT:24)

24351-46000-000 2435146000000

$90,97

Unit Price

WASHER (13X24X1)

09160-13006-000 0916013006000

$2,97

Unit Price

CIRCLIP

09380-17007-000 0938017007000

$2,97

Unit Price

WASHER

09167-17003-000 0916717003000

Not available

BEARING(17X40X12)
BEARING, RH

09262-17023-000 0926217023000

$22,97

Unit Price

BUSH

09303-13001-000 0930313001000

$8,97

Unit Price

BEARING
BEARING, LH

08113-63030-000 0811363030000

$29,97

Unit Price

BUSH

09303-13001-000 0930313001000

$8,97

Unit Price

DRIVE SHAFT OIL SEAL
OIL SEAL (21X40X6)

09283-21003-000 0928321003000

$10,97

Unit Price

RETAINER, CNTR SHAFT BEARING
HOLDER, BEARING

24741-46000-000 2474146000000

$8,97

Unit Price

SCREW

02112-06103-000

02112-0610B-000

$2,97

Unit Price

SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000 0211206108000

Not available

SCREW

02122-06108-000

02122-0610A-000

$2,97

Unit Price

SCREW

02122-06123-000

02122-0612B-000

$2,97

Unit Price

GEAR, KICK STARTER IDLE
GEAR, KICK IDLE (NT:26)

26260-46001-000 2626046001000

$87,97

Unit Price

WASHER

08211-12261-000 0821112261000

$3,97

Unit Price

CIRCLIP

08331-31126-000

08331-3112A-000

$2,97

Unit Price

SPROCKET, ENGINE
SPROCKET, ENGINE (NT:12)

27511-46700-000 2751146700000

$19,97

Unit Price

SPROCKET SPACER ****
SPACER

09180-17008-000 0918017008000

$11,97

Unit Price

SPROCKET LOCK NUT
NUT

09140-16002-000 0914016002000

$4,97

Unit Price

SPROCKET LOCK WASHER
WASHER

09167-16001-000 0916716001000

$2,97

Unit Price

SPROCKET SPC O RING
O RING (D:1, ID:16.8)

09280-17001-000 0928017001000

$2,97

Unit Price

DISCONTINUE

27600-17421-000

Not available

JOINT SET(DID428)

27620-20910-000

27620-20911-000

$8,97

Unit Price

JOINT (RK)

27620-40220-000 2762040220000

$19,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Choose your Suzuki 80 1985 DS model
