CRANKCASE

CRANKCASE COVER FOR SUZUKI JR 80 2003

CRANKSHAFT

Item numbers

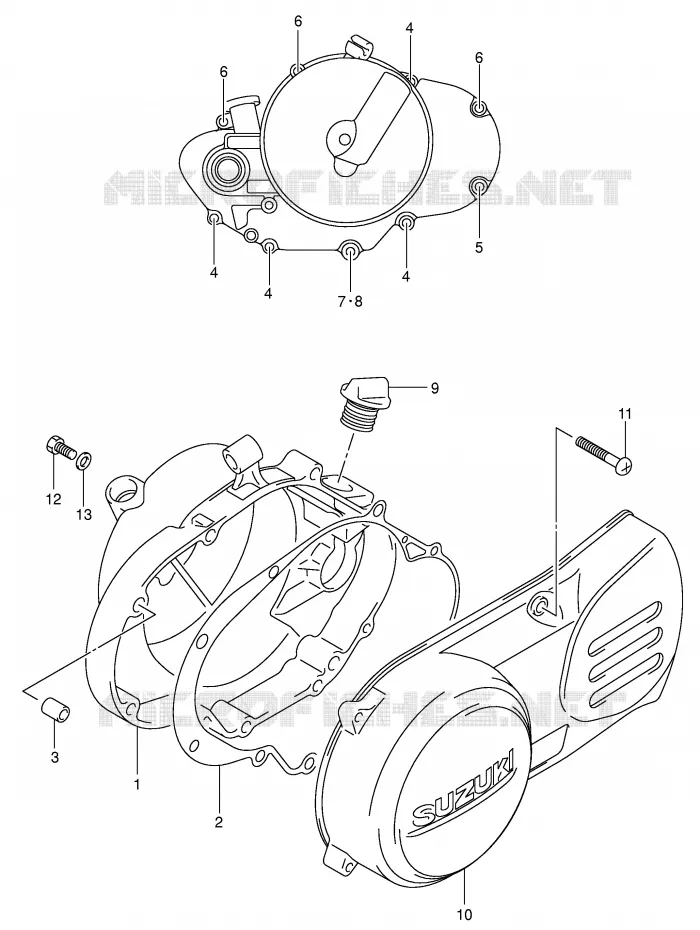

CRANKCASE COVER Suzuki MOTO 80 JR 2003 JR80K3(P3/P28)
1
2
3
4
4
4
4
5
6
6
6
7
8
9
10
11
12
13
1
COVER, CLUTCH

11341-46001-000   1134146001000

1134146001000

Unit Price

2
GASKET, CLUTCH COVER

11482-46010-000   1148246010000

1148246010000

Unit Price

3
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

4
SCREW

02112-06253-000  

02112-0625A-000
 0211206253000

Unit Price

5
SCREW

02112-06303-000  

02112-0630A-000
 0211206303000

Unit Price

6
SCREW

02112-06403-000  

02112-0640B-000
 0211206403000

Unit Price

7
02112-0635B
SCREW

02112-06353-000  

0211206353000
Not available
8
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

9
OIL FILLER PLUG
OIL FILLER PLUG

09259-19001-000  

09259-19005-000
 0925919001000

Unit Price

10
COVER, MAGNETO

11351-46401-000   1135146401000

1135146401000

Unit Price

11
SCREW

02112-06253-000  

02112-0625A-000
 0211206253000

Unit Price

12
SCREWM6X1X10<br />PLUG, OIL LEVEL
SCREWM6X1X10
PLUG, OIL LEVEL

09128-06044-000   0912806044000

0912806044000

Unit Price

13
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 80 JR 2003

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 JR 2003

Select your Suzuki 2003 model

80 JR 2003 JR80K3(P3/P28)

Suzuki JR

Displacement: 80 cc
Year: 2003
Model code JR80K3(P3 / P28)
