MUFFLER

OIL PUMP FOR SUZUKI JR 80 2004

CLUTCH

Item numbers

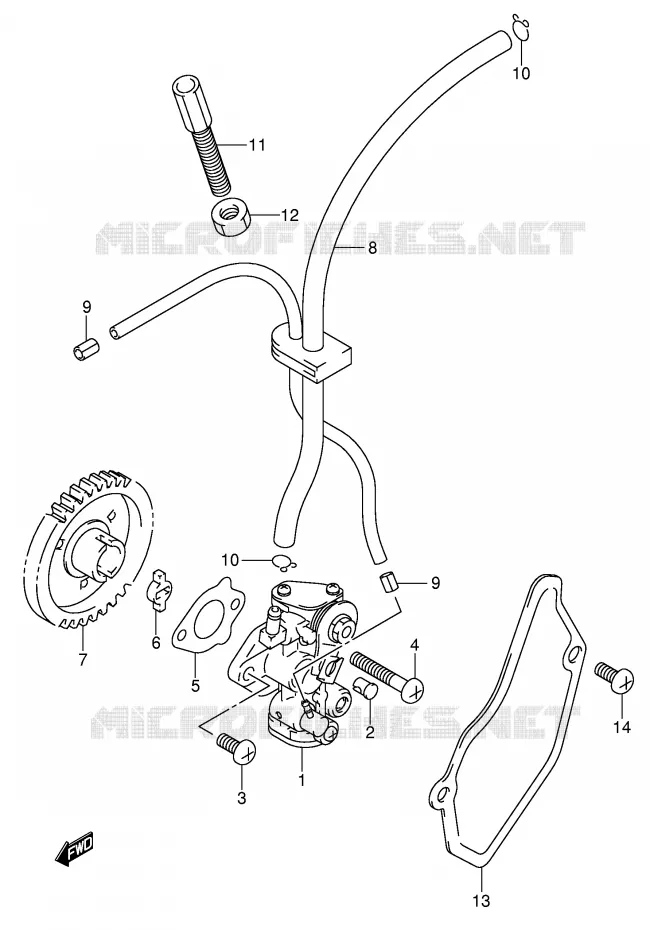

OIL PUMP Suzuki MOTO 80 JR 2004 JR80K4(P3/P28)
1
2
3
4
5
6
7
8
9
9
9
9
10
10
11
12
13
14
1
PUMP ASSY, OIL

16100-46411-000   1610046411000

1610046411000

Unit Price

2
TERMINAL, CABLE
TERMINAL, CABLE

16292-03112-000   1629203112000

1629203112000

Unit Price

3
SCREW

02112-35163-000  

02112-3516A-000
 0211235163000

Unit Price

4
SCREW

02112-35303-000  

02112-3530A-000
 0211235303000

Unit Price

5
GASKET, OIL PUMP
GASKET, OIL PUMP

16731-03101-000   1673103101000

1673103101000

Unit Price

6
PIECE,OIL PUMP DRIVE<br />PIECE, DRIVE
PIECE, OIL PUMP DRIVE
PIECE, DRIVE

16391-05031-000   1639105031000

1639105031000

Unit Price

7
GEAR, OIL PUMP DRIVE
GEAR, DRIVE (NT:37)

16320-46131-000   1632046131000

1632046131000

Unit Price

8
HOSE, OIL NO.2
HOSE, OUTLET

16820-03400-000   1682003400000

1682003400000

Unit Price

9
OIL HOSECLAMP<br />CLIP
OIL HOSECLAMP
CLIP

09401-04401-000   0940104401000

0940104401000

Unit Price

9
CLIP, OIL HOSE NO.2
CLIP

16878-16F00-000   1687816F00000

1687816F00000

Unit Price

10
OIL HOSE CLAMP<br />CLAMP
OIL HOSE CLAMP
CLAMP

09401-08401-000   0940108401000

0940108401000

Unit Price

11
BOLT<br />ADJUSTER, CABLE (8X29)
BOLT
ADJUSTER, CABLE (8X29)

09119-08014-000   0911908014000

0911908014000

Unit Price

12
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

13
CAP, OIL PUMP INSPECTION
CAP, INSPECTION

11302-46811-000   1130246811000

1130246811000

Unit Price

14
SCREW

02112-06103-000  

02112-0610B-000
 0211206103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 80 JR 2004

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 JR 2004

Select your Suzuki 2004 model

80 JR 2004 JR80K4(P3/P28)

Suzuki JR

Displacement: 80 cc
Year: 2004
Model code JR80K4(P3 / P28)
