Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKSHAFT (MODEL G / H) REFER TO FIG.4A (C- 3) FOR MODEL J

CRANKSHAFT (MODEL J) FOR SUZUKI RM 80 1987

CRANKSHAFT (MODEL K) REFER TO FIG.4C (C- 5) FOR MODEL L

Item numbers

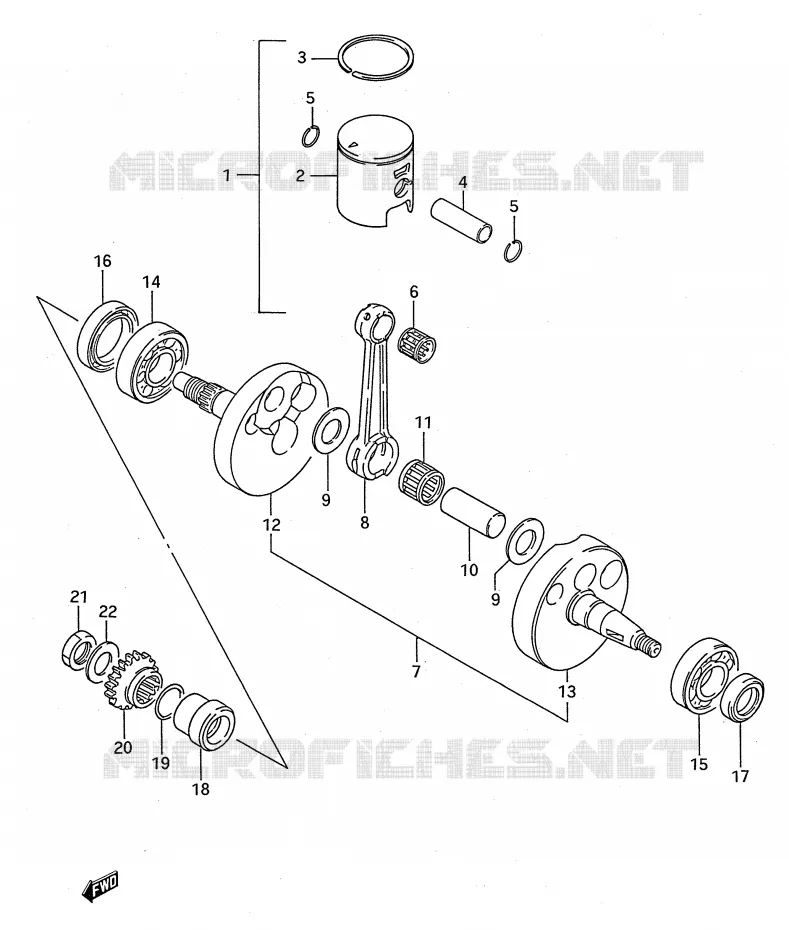

CRANKSHAFT (MODEL J) Suzuki MOTO 80 RM 1987 RM80H(E28)
1
1
1
2
2
2
3
3
3
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
DISCONTINUE

12101-02861-000  

1210102861000
Not available
1
12101-02862-050
PISTON KIT (OS:0.5)

12101-02861-050   1210102861050

1210102861050
Not available
1
DISCONTINUE

12101-02861-100  

1210102861100
Not available
2
PISTON (OS:0.5)

12110-02B21-050   1211002B21050

1211002B21050
Not available
2
PISTON

12110-02B21-0F0   1211002B210F0

1211002B210F0
Not available
2
PISTON (OS:1.0)

12110-02B21-100   1211002B21100

1211002B21100
Not available
3
RING, PISTON

12141-02B50-000  

12141-02B70-000
 1214102B50000

Unit Price

3
RING, PISTON (OS:0.5)

12141-02B50-050   1214102B50050

1214102B50050
Not available
3
RING, PISTON (OS:1.0)

12141-02B50-100   1214102B50100

1214102B50100
Not available
4
PIN, PISTON

12151-20910-000   1215120910000

1215120910000

Unit Price

5
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-14001-000   0938114001000

0938114001000

Unit Price

6
BEARING, PISTON PIN

09263-14016-000   0926314016000

0926314016000

Unit Price

7
DISCONTINUE
CRANKSHAFT ASSY

12200-02B10-000   1220002B10000

1220002B10000
Not available
8
DISCONTINUE
ROD, CONNECTING

12161-02B10-000   1216102B10000

1216102B10000
Not available
9
DISCONTINUE
WASHER

09160-18023-000   0916018023000

0916018023000
Not available
10
DISCONTINUE

12211-20901-000  

1221120901000
Not available
11
DISCONTINUE

09263-18026-000  

0926318026000
Not available
12
DISCONTINUE
CRANKSHAFT, RH

12221-02B10-000   1222102B10000

1222102B10000
Not available
13
DISCONTINUE
CRANKSHAFT, LH

12261-02B10-000   1226102B10000

1226102B10000
Not available
14
BEARING
BEARING, RH (20X52X15)

09262-20082-000   0926220082000

0926220082000

Unit Price

15
BEARING(20X47X14)
BEARING, LH (20X47X14)

09262-20083-000   0926220083000

0926220083000

Unit Price

16
SEAL, OIL(32X44X8)
OIL SEAL, RH (32X52X8.4)

09289-32003-000   0928932003000

0928932003000

Unit Price

17
OIL SEAL CRANK SHAFT
OIL SEAL, LH (18X30X8)

09283-18004-000   0928318004000

0928318004000

Unit Price

18
SPACER, PRI DRIVE GEAR

12359-02B00-000   1235902B00000

1235902B00000
Not available
19
O RING(D:2.4, ID:19.8)
O RING

09280-20004-000   0928020004000

0928020004000

Unit Price

20
GEAR, PRIMARY DRIVE (NT:18)

21111-02B01-000   2111102B01000

2111102B01000
Not available
21
NUT

09140-16024-000   0914016024000

0914016024000
Not available
22
PR DVN GEAR WASHER
WASHER

09164-16002-000   0916416002000

0916416002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
