Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKSHAFT (MODEL K) REFER TO FIG.4C (C- 5) FOR MODEL L

CRANKSHAFT (MODEL L) FOR SUZUKI RM 80 1987

CRANKSHAFT (MODEL M / N / P / R / S)

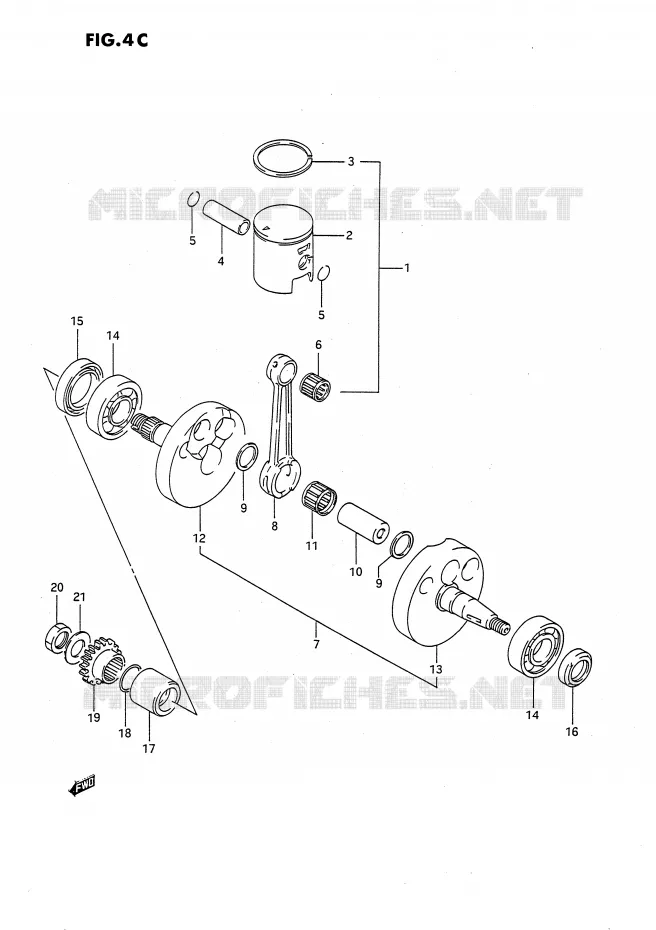

CRANKSHAFT (MODEL L) Suzuki MOTO 80 RM 1987 RM80XH(E2)
1
PISTON KIT (OS:1.0)

12102-02811-000   1210202811000

1210202811000
Not available
1
PISTON KIT (STD)

12102-02831-000   1210202831000

1210202831000
1
PISTON KIT (OS:0.5)

12102-02831-050   1210202831050

1210202831050
Not available
2
DISCONTINUE
PISTON (OS:1.0)

12110-02B43-0F0   1211002B430F0

1211002B430F0
Not available
2
PISTON (OS:0.5)

12110-02B53-050   1211002B53050

1211002B53050
Not available
2
PISTON

12110-02B53-0F0   1211002B530F0

1211002B530F0
Not available
3
RING, PISTON
RING, PISTON (OS:1.0)

12141-02B70-000   1214102B70000

1214102B70000

Unit Price

3
RING, PISTON

12141-02B80-000   1214102B80000

1214102B80000
Not available
3
RING, PISTON (OS:0.5)

12141-02B80-050   1214102B80050

1214102B80050
Not available
4
PIN, PISTON

12151-20910-000   1215120910000

1215120910000

Unit Price

4
PIN, PISTON

12151-02B10-000   1215102B10000

1215102B10000
Not available
5
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-14001-000   0938114001000

0938114001000

Unit Price

6
BEARING, PISTON PIN

09263-14016-000   0926314016000

0926314016000

Unit Price

7
REORDER CROOKS

12200-02B50-000   1220002B50000

1220002B50000
Not available
8
DISCONTINUE
ROD, CONNECTING

12161-02B52-000   1216102B52000

1216102B52000
Not available
9
WASHER, CRANK BRG
WASHER

08211-20252-000   0821120252000

0821120252000

Unit Price

10
PIN, CRANK

12211-02B50-000   1221102B50000

1221102B50000

Unit Price

11
DISCONTINUE

09263-20076-000  

0926320076000
Not available
12
CRANKSHAFT, RH

12221-02B50-000   1222102B50000

1222102B50000
Not available
13
.CRANKSHAFT, LH

12261-02B50-000   1226102B50000

1226102B50000
Not available
14
BEARING
BEARING (20X52X15)

09262-20082-000   0926220082000

0926220082000

Unit Price

15
OIL SEAL

09283-30060-000  

09283-30076-000
 0928330060000

Unit Price

16
OIL SEAL 18 X 30 X 6
OIL SEAL, LH (18X30X6)

09283-18006-000   0928318006000

0928318006000

Unit Price

17
SPACER, PRIMARY DRIVE GEAR

12359-27C10-000  

12359-27C30-000
 1235927C10000

Unit Price

18
O RING(D:2.4, ID:19.8)
O RING

09280-20004-000   0928020004000

0928020004000

Unit Price

19
GEAR, PRIMARY DRIVE(NT:18)

21111-02B40-000  

21111-02B41-000
 2111102B40000

Unit Price

20
NUT, PRY DRIVE GEAR
NUT

09140-16019-000   0914016019000

0914016019000

Unit Price

21
PR DVN GEAR WASHER
WASHER

09164-16002-000   0916416002000

0916416002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
