FRONT FORK (MODEL G / H / J) FOR SUZUKI RM 80 1991

FRONT FORK (MODEL K) REFER TO FIG.23B (F-7) FOR MODEL L/M/N/P/R

Item numbers

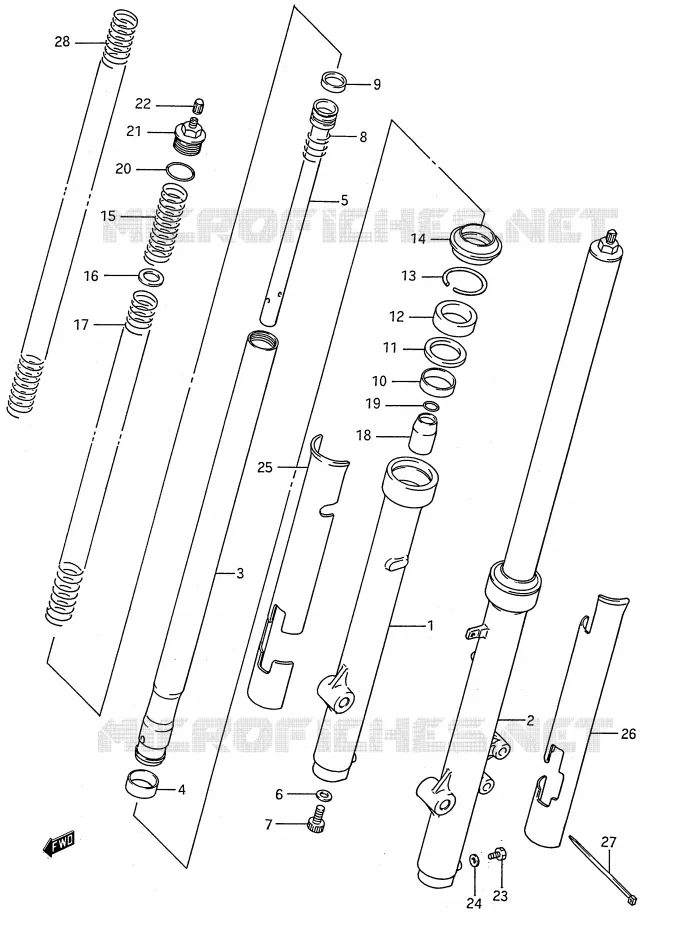

FRONT FORK (MODEL G/H/J) Suzuki MOTO 80 RM 1991 RM80M(E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
.TUBE, OUTER RH

51130-02B00-000   5113002B00000

5113002B00000
Not available
2
TUBE, OUTER LH

51140-02B00-000   5114002B00000

5114002B00000
Not available
3
TUBE, INNER

51110-02B00-000   5111002B00000

5111002B00000
Not available
4
DISCONTINUE
PISTON

51121-02B00-000   5112102B00000

5112102B00000
Not available
5
.CYLINDER

51194-02B00-000   5119402B00000

5119402B00000
Not available
6
.GASKET

51148-02B00-000   5114802B00000

5114802B00000
Not available
7
DISCONTINUE

51147-02B00-000  

5114702B00000
Not available
8
SPRING, REBOUND
SPRING

51177-01A00-000   5117701A00000

5117701A00000

Unit Price

9
RING, PISTON

51196-02B00-000   5119602B00000

5119602B00000
Not available
10
DISCONTINUE
BUSH, GUIDE

51152-02B00-000   5115202B00000

5115202B00000
Not available
11
SEAL SPACER

51168-02B00-000   5116802B00000

5116802B00000

Unit Price

12
SEAL, OIL
OIL SEAL

51153-02B00-000   5115302B00000

5115302B00000

Unit Price

13
RING, OIL SEAL STOPPER

51156-02B00-000   5115602B00000

5115602B00000

Unit Price

14
SEAL, DUST

51173-02B00-000  

51571-26B00-000
 5117302B00000

Unit Price

15
SPRING A

51171-02B00-000   5117102B00000

5117102B00000
Not available
16
SPRING, JOINT
SEAT, SPRING

51192-20510-000   5119220510000

5119220510000

Unit Price

17
SPRING B

51174-02B00-000   5117402B00000

5117402B00000
Not available
18
.PIECE, OIL LOCK

51195-02B00-000   5119502B00000

5119502B00000
Not available
19
DISCONTINUE
RING, OIL LOCK PIECE

51169-01A30-000   5116901A30000

5116901A30000
Not available
20
DISCONTINUE
O RING

51117-43500-000   5111743500000

5111743500000
Not available
21
BOLT

51351-02B00-000   5135102B00000

5135102B00000
Not available
22
CAP
CAP, VALVE

51294-20400-000   5129420400000

5129420400000

Unit Price

23
..BOLT

01107-06088-000   0110706088000

0110706088000
Not available
24
GASKET,DRAIN,PLUG<br />WASHER
GASKET, DRAIN, PLUG
WASHER

51183-31030-000   5118331030000

5118331030000

Unit Price

25
DISCONTINUE
RH FORK PROTECTOR

51201-02B00-000   5120102B00000

5120102B00000
Not available
26
DISCONTINUE
PROTECTOR, OUTER TUBE LH

51202-02B00-000   5120202B00000

5120202B00000
Not available
27
CLAMP

09407-20401-000  

09407-25402-000
 0940720401000

Unit Price

28
SPRING (HARD)

51171-02B10-000   5117102B10000

5117102B10000
Not available
99x
DAMPER ASSY, RH

51103-02B00-000   5110302B00000

5110302B00000
Not available
99x
DAMPER ASSY, LH

51104-02B00-000   5110402B00000

5110402B00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
