CRANKSHAFT

CARBURETOR FOR SUZUKI RM 80 1996

AIR FILTER

Item numbers

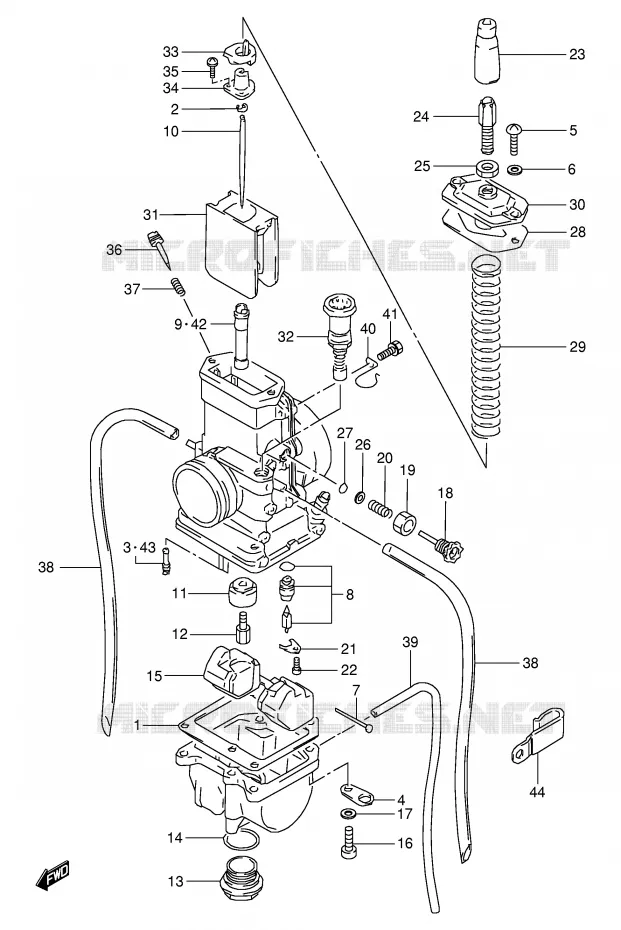

CARBURETOR Suzuki MOTO 80 RM 1996 RM80T(E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
42
42
42
43
43
44
1
GASKET, FLOAT CAHMBER
GASKET

13251-02B40-000   1325102B40000

1325102B40000

Unit Price

2
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

3
JET, PILOT (30)
JET, PILOT (30)

09492-30006-000   0949230006000

0949230006000

Unit Price

4
PLATE,CARBURETOR<br />PLATE
PLATE, CARBURETOR
PLATE

13693-36500-000   1369336500000

1369336500000

Unit Price

5
SCREW

02112-04123-000  

02112-0412A-000
 0211204123000

Unit Price

6
WASHER, LOCK

08321-01043-000  

08321-0104A-000
 0832101043000

Unit Price

7
PIN, FLOAT
PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

8
VALVE ASSY, NEEDLE
VALVE ASSY, NEEDLE

13370-02B50-000   1337002B50000

1337002B50000

Unit Price

9
JET, NEEDLE (P-4)

09494-00523-000   0949400523000

0949400523000
Not available
10
DISCONTINUE
NEEDLE, JET (5DP39-4)

13383-46900-000   1338346900000

1338346900000
Not available
11
RING

13331-28710-000   1333128710000

1333128710000
Not available
12
DISCONTINUE
JET, MAIN (210)

09491-42005-000   0949142005000

0949142005000
Not available
13
DISCONTINUE
PLUG, DRAIN

13247-46900-000   1324746900000

1324746900000
Not available
14
O RING

13246-29630-000   1324629630000

1324629630000

Unit Price

15
DISCONTINUE
FLOAT

13252-02B50-000   1325202B50000

1325202B50000
Not available
16
SCREW

02112-04203-000  

02112-0420A-000
 0211204203000

Unit Price

17
WASHER, LOCK

08321-01043-000  

08321-0104A-000
 0832101043000

Unit Price

18
ADJUSTER, THROTTLE STOP
ADJUSTER, THROTTLE STOP

13267-16700-000   1326716700000

1326716700000

Unit Price

19
NUT

13661-02B00-000   1366102B00000

1366102B00000

Unit Price

20
SPRING
SPRING

13268-35010-000   1326835010000

1326835010000

Unit Price

21
PLATE<br />PLATE, NEEDLE VALVE
PLATE
PLATE, NEEDLE VALVE

13373-39110-000   1337339110000

1337339110000

Unit Price

22
SCREW,4X8<br />SCREW
SCREW, 4X8
SCREW

02112-04087-000   0211204087000

0211204087000

Unit Price

23
CAP,CABLE ADJUSTER<br />CAP, ADJUSTER
CAP, CABLE ADJUSTER
CAP, ADJUSTER

13681-33010-000   1368133010000

1368133010000

Unit Price

24
ADJUSTER, CABLE
ADJUSTER, CABLE

13577-41612-000   1357741612000

1357741612000

Unit Price

25
NUT
NUT

13661-16600-000   1366116600000

1366116600000

Unit Price

26
WASHER
WASHER

13291-35010-000   1329135010000

1329135010000

Unit Price

27
O RING
O RING

13295-33010-000   1329533010000

1329533010000

Unit Price

28
DISCONTINUE
GASKET, TOP

13266-16700-000   1326616700000

1326616700000
Not available
29
DISCONTINUE
SPRING, THROTTLE VALVE

13573-16700-000   1357316700000

1357316700000
Not available
30
13251-29630
CAP, TOP

13261-16700-000   1326116700000

1326116700000
Not available
31
DISCONTINUE
VALVE, PISTON (CA:4.0)

13551-20910-000   1355120910000

1355120910000
Not available
32
DISCONTINUE
PLUNGER ASSY

13410-26410-000   1341026410000

1341026410000
33
DISCONTINUE<br />RING
DISCONTINUE
RING

13629-16700-000   1362916700000

1362916700000
Not available
34
DISCONTINUE<br />CONNECTOR
DISCONTINUE
CONNECTOR

13398-16700-000   1339816700000

1339816700000
Not available
35
SCREW

02112-33103-000  

02112-3310B-000
 0211233103000

Unit Price

36
SCREW,AIR<br />SCREW, AIR (1 1/2)
SCREW, AIR
SCREW, AIR (1 1/2)

13269-16700-000   1326916700000

1326916700000

Unit Price

37
SPRING
SPRING

13268-01010-000   1326801010000

1326801010000

Unit Price

38
HOSE,3.5*6.5*600<br />HOSE (3.5X6.5X600)
HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600   0935135653600

0935135653600

Unit Price

39
HOSE
HOSE

09352-30503-600  

09352-30504-600
 0935230503600

Unit Price

40
CLIP

13692-14500-000   1369214500000

1369214500000
Not available
41
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

42
JET, NEEDLE (P-0)

09494-00519-000   0949400519000

0949400519000
Not available
42
JET, NEEDLE (P-2)

09494-00522-000   0949400522000

0949400522000
Not available
42
JET, NEEDLE (P-6)

09494-00585-000   0949400585000

0949400585000
Not available
43
JET,PILOT<br />JET, PILOT (25)
JET, PILOT
JET, PILOT (25)

09492-25005-000   0949225005000

0949225005000

Unit Price

43
DISCONTINUE
JET, PILOT (35)

09492-35004-000   0949235004000

0949235004000
Not available
44
CLAMP
CLAMP

09403-06307-000  

09403-06329-000
 0940306307000

Unit Price

99x
DISCONTINUE
CARBURETOR ASSY

13200-03B00-000   1320003B00000

1320003B00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 80 RM 1996

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 RM 1996

Choose your Suzuki 80 1996 RM model

80 RM 1996 RM80T(E24)

Suzuki RM

Displacement: 80 cc
Year: 1996
Model code RM80T(E24)
