CRANKSHAFT

CARBURETOR FOR SUZUKI QUADSPORT 80 1989

AIR FILTER

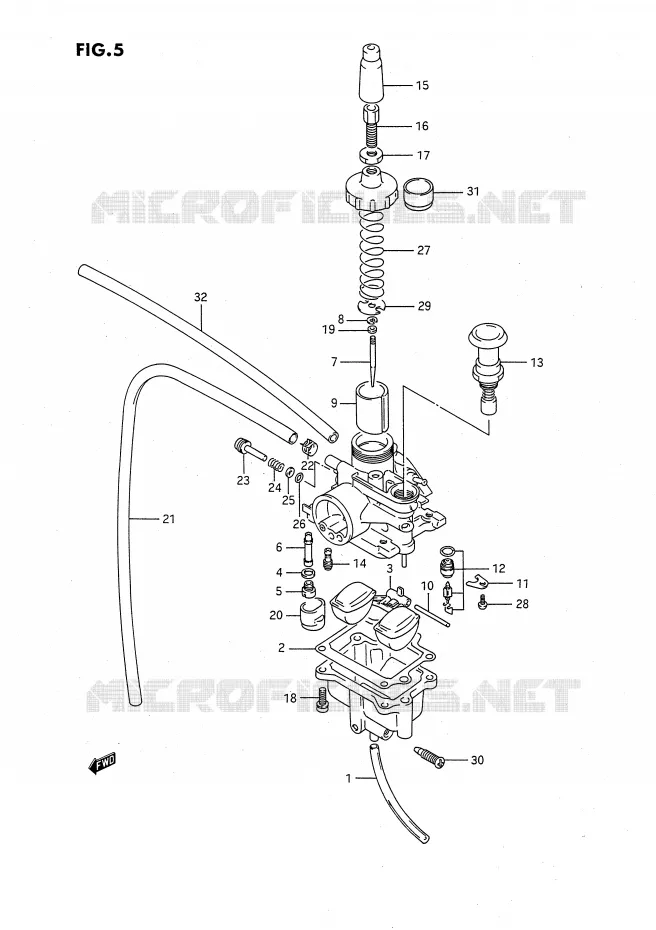

CARBURETOR Suzuki QUAD 80 QUADSPORT 1989 LT80K(P28)
1
HOSE,3X5X600
HOSE, 3X5X600

09351-30503-600  

09351-30001-600
 0935130503600

Unit Price

2
GASKET, FLOAT CAHMBER
GASKET

13258-02100-000   1325802100000

1325802100000

Unit Price

3
FLOAT ASSY

13250-16A00-000  

13250-30D50-000
 1325016A00000

Unit Price

4
PACKING, MAIN JET
GASKET

13386-04700-000   1338604700000

1338604700000

Unit Price

5
JET,MAIN<br />JET, MAIN (92.5)
JET, MAIN
JET, MAIN (92.5)

09491-92004-000   0949192004000

0949192004000

Unit Price

6
JET, NEEDLE, (E-O)
JET, NEEDLE (E-0)

09494-00553-000   0949400553000

0949400553000

Unit Price

7
NEEDLE, JET
NEEDLE, JET (3J17-2)

13383-46B00-000   1338346B00000

1338346B00000

Unit Price

8
CLIP, NEEDLE

13394-12110-000  

13394-40D00-000
 1339412110000

Unit Price

9
DISCONTINUE
VALVE, PISTON (CA:2.5)

13551-40B00-000   1355140B00000

1355140B00000
Not available
10
PIN, FLOAT

13254-20010-000   1325420010000

1325420010000

Unit Price

11
PLATE, NEEDLE VALVE FITTING
PLATE

13373-46710-000   1337346710000

1337346710000

Unit Price

12
VALVE ASSY, NEEDLE

13370-03A20-000   1337003A20000

1337003A20000

Unit Price

13
PLUNGER ASSY

13411-40B00-000   1341140B00000

1341140B00000

Unit Price

14
JET,PILOT<br />JET, PILOT (20)
JET, PILOT
JET, PILOT (20)

09492-20008-000   0949220008000

0949220008000

Unit Price

15
CAP,CABLE ADJUSTER<br />CAP
CAP, CABLE ADJUSTER
CAP

13681-33010-000   1368133010000

1368133010000

Unit Price

16
ADJUSTER, CABLE

13577-22600-000   1357722600000

1357722600000

Unit Price

17
NUT
NUT

13661-16600-000   1366116600000

1366116600000

Unit Price

18
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

19
WASHER, JET NEEDLE
GASKET

13382-47010-000   1338247010000

1338247010000

Unit Price

20
CAP

13697-40B00-000   1369740B00000

1369740B00000

Unit Price

21
HOSE,3.5*6.5*600<br />HOSE (3.5X6.5X600)
HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600   0935135653600

0935135653600

Unit Price

22
CLIP

13698-40B00-000   1369840B00000

1369840B00000

Unit Price

23
SCREW,THROTTLE STOP<br />ADJUSTER
SCREW, THROTTLE STOP
ADJUSTER

13483-16A01-000   1348316A01000

1348316A01000

Unit Price

24
SPRING
SPRING

13268-35010-000   1326835010000

1326835010000

Unit Price

25
WASHER
WASHER

13291-35010-000   1329135010000

1329135010000

Unit Price

26
O RING
O RING

13295-33010-000   1329533010000

1329533010000

Unit Price

27
SPRING, THROTTLE VALVE
SPRING

13573-98500-000   1357398500000

1357398500000

Unit Price

28
SCREW

02112-03063-000  

02112-0306B-000
 0211203063000

Unit Price

29
PLATE

13447-30A00-000   1344730A00000

1344730A00000

Unit Price

30
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

31
RING

13331-40B00-000   1333140B00000

1333140B00000

Unit Price

32
HOSE, 4.5X8.5X600

09354-45853-600  

09355-45001-600
 0935445853600

Unit Price

99x
CARBURETOR ASSY

13200-40B10-000   1320040B10000

1320040B10000

Unit Price

99x
DISCONTINUE
CARBURETOR ASSY

13200-40B00-000   1320040B00000

1320040B00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
