REAR SHOCK ABSORBER

REAR WHEEL FOR SUZUKI QUADSPORT 80 1996

OPTIONS

Item numbers

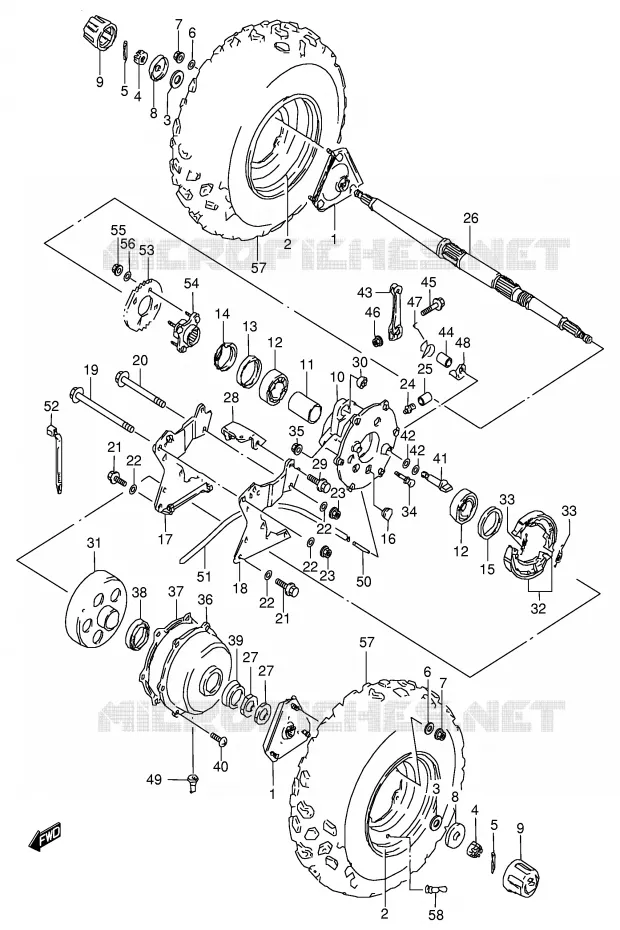

REAR WHEEL Suzuki QUAD 80 QUADSPORT 1996 LT80T(P3/P28)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
12
13
14
15
16
17
18
19
20
20
21
21
22
22
22
22
23
23
24
25
26
27
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
56
57
57
58
1
HUB, RR
HUB, REAR

64110-40B50-000   6411040B50000

6411040B50000

Unit Price

2
RIM, RR WHEEL
RIM, REAR WHEEL (8X5.5AT) (WHITE)

55310-40B00-14L   5531040B0014L

5531040B0014L

Unit Price

3
PR DVN GEAR WASHER
WASHER

09164-16002-000   0916416002000

0916416002000

Unit Price

4
NUT

09141-16004-000   0914116004000

0914116004000

Unit Price

5
PIN

04111-40408-000  

04111-4040A-000
 0411140408000

Unit Price

6
WASHER

08322-01103-000  

08322-0110B-000
 0832201103000

Unit Price

7
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

8
HOLDER, CTR CAP
HOLDER, CAP

64726-40B00-000   6472640B00000

6472640B00000

Unit Price

9
CAP, WHEEL CTR
CAP, WHEEL CENTER

54725-18A00-000   5472518A00000

5472518A00000

Unit Price

10
HOUSING, RR AXLE BEARING
HOUSING, AXLE BEARING

64721-40B00-000   6472140B00000

6472140B00000

Unit Price

11
SPACER, RR AXLE BEARING
SPACER, BEARING

64731-40B00-000   6473140B00000

6473140B00000

Unit Price

12
BEARING, 32X65X17

09262-32007-000  

09262-32024-000
 0926232007000

Unit Price

13
OIL SEAL 42X65X8.5
SEAL, INNER (42X65X8.5)

09283-42016-000   0928342016000

0928342016000

Unit Price

14
OIL SEAL 42X54X9.2
SEAL, OUTER (42X52X9.2)

09286-42001-000   0928642001000

0928642001000

Unit Price

15
OIL SEAL 42X65X7
SEAL, LH (42X65X7)

09283-42015-000   0928342015000

0928342015000

Unit Price

16
DISCONTINUE
CAP, HOUSING SEAL

09250-20003-000  

0925020003000
Not available
17
PLATE, RR AXLE HOUSING, R
PLATE, HOUSING RH

64770-40B00-000   6477040B00000

6477040B00000

Unit Price

18
PLATE, RR AXLE HOUSING, L
PLATE, HOUSING LH

64780-40B00-000   6478040B00000

6478040B00000

Unit Price

19
BOLT (8X175)

09103-08504-000   0910308504000

0910308504000

Unit Price

20
BOLT (8X95)
BOLT (8X95)

09103-08105-000   0910308105000

0910308105000

Unit Price

20
BOLT (8X95)
BOLT (8X95)

09103-08066-000   0910308066000

0910308066000
Not available
21
BOLT

01550-08203-000  

01550-08207-000
 0155008203000

Unit Price

22
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
23
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
24
NIPPLE, GREASE

08351-21008-000  

08351-2100A-000
 0835121008000

Unit Price

25
CAP, GREASE NIPPLE

61442-33310-000   6144233310000

6144233310000

Unit Price

26
DISCONTINUE
AXLE, REAR

64711-40B00-000   6471140B00000

6471140B00000
Not available
27
NUT

09140-28003-000   0914028003000

0914028003000

Unit Price

28
DISCONTINUE
PLATE, MUFFLER SUPPORT

64790-40B00-000   6479040B00000

6479040B00000
Not available
29
BOLT

01550-08203-000  

01550-08207-000
 0155008203000

Unit Price

30
BUSHING
BUSHING, ABSORBER (10X25X22)

09319-10041-000   0931910041000

0931910041000

Unit Price

31
DRUM, RR BRAKE
DRUM, REAR BRAKE

64120-40B00-000   6412040B00000

6412040B00000

Unit Price

32
SHOE SET, BRAKE

64400-40810-000   6440040810000

6440040810000

Unit Price

33
SPRING, BRAKE SHOE

64430-14600-000   6443014600000

6443014600000

Unit Price

34
PIN, RR BRAKE ANCHOR
PIN, ANCHOR

64231-40B00-000   6423140B00000

6423140B00000

Unit Price

35
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

36
COVER, RR BRAKE DRUM
COVER, BRAKE DRUM

64130-40B00-000   6413040B00000

6413040B00000

Unit Price

37
PACKING, RR BRAKE DRUM COVER
GASKET, DRUM COVER

64125-40B00-000   6412540B00000

6412540B00000

Unit Price

38
SEAL, OIL 42X55X9
SEAL, DRUM INNER (42X55X9)

09282-42001-000   0928242001000

0928242001000

Unit Price

39
SEAL, RR BRAKE DRUM OUTER
SEAL, DRUM OUTER (33X52X9)

64729-40B00-000   6472940B00000

6472940B00000

Unit Price

40
SCREW

02142-06083-000  

02142-0608A-000
 0214206083000

Unit Price

41
CAM, RR BRAKE
CAM, REAR BRAKE

64441-40B00-000   6444140B00000

6444140B00000

Unit Price

42
O RING
O RING (ID:13.8, D:1.9)

09280-14004-000   0928014004000

0928014004000

Unit Price

43
DISCONTINUE
LEVER, BRAKE CAM

64451-40B00-000   6445140B00000

6445140B00000
Not available
44
SPACER, RR BRAKE CAM LEVER
SPACER, CAM LEVER

64454-40B00-000   6445440B00000

6445440B00000

Unit Price

45
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

46
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

47
SPRING, BRAKE CAM LEVER RETURN
SPRING, CAM LEVER RETURN

64444-40B00-000   6444440B00000

6444440B00000

Unit Price

48
PLATE, BK LINING INDICATOR
PLATE, INDICATOR

64492-40B00-000   6449240B00000

6449240B00000

Unit Price

49
CAP
PLUG

09250-11002-000   0925011002000

0925011002000

Unit Price

50
JOINT

09364-06004-000   0936406004000

0936406004000
Not available
51
HOSE,5X8.2X2000
HOSE, 5X8.2X2000

09352-50823-00B  

09352-50005-00B
 093525082300B

Unit Price

52
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

53
SPROCKET, RR(22T)
SPROCKET, REAR (NT:22)

64511-40B10-000   6451140B10000

6451140B10000

Unit Price

54
FLANGE, SPROCKET MOUNTING
FLANGE, MOUNTING

64610-40B00-000   6461040B00000

6461040B00000

Unit Price

55
NUT

08319-31086-000  

08319-31083-000
 0831931086000

Unit Price

55
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
56
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
57
TIRE, RR

65100-40B51-000  

65100-40B60-000
 6510040B51000

Unit Price

58
VALVE,TIRE TR413 BS<br />VALVE ASSY, WHEEL TR413
VALVE, TIRE TR413 BS
VALVE ASSY, WHEEL TR413

43130-78030-000   4313078030000

4313078030000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 80 QUADSPORT 1996

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 QUADSPORT 1996

Choose your Suzuki 80 1996 QUADSPORT model

80 QUADSPORT 1996 LT80T(P3/P28)

Suzuki QUADSPORT

Displacement: 80 cc
Year: 1996
Model code LT80T(P3 / P28)
