Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION (1)

TRANSMISSION (2) FOR SUZUKI QUADSPORT 80 2000

OIL TANK

Item numbers

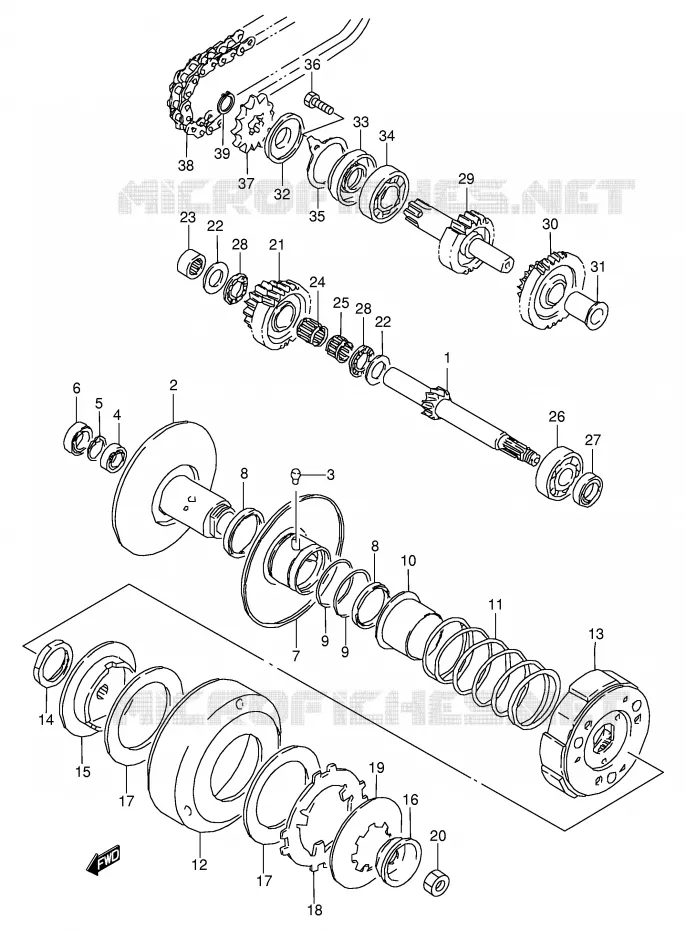

TRANSMISSION (2) Suzuki QUAD 80 QUADSPORT 2000 LT80Y(P3/P28)
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
24
25
26
27
28
28
29
30
31
32
33
34
34
35
36
37
38
39
1
SHAFT, DRIVE
COUNTER SHAFT (NT:12)

24131-29A03-000   2413129A03000

2413129A03000

Unit Price

2
FACE, FIXED DRIVEN

21210-03A21-000   2121003A21000

2121003A21000

Unit Price

3
DISCONTINUE
PIN

09201-06005-000   0920106005000

0920106005000
Not available
4
BEARING
BEARING (12X24X6)

09262-12014-000   0926212014000

0926212014000

Unit Price

5
CIRCLIP

08331-41246-000  

08331-41249-000
 0833141246000

Unit Price

6
BEARING

09262-15018-000  

09262-15061-000
 0926215018000

Unit Price

7
FACE, MOVABLE DRIVEN

21240-40B00-000   2124040B00000

2124040B00000

Unit Price

8
SEAL, OIL
OIL SEAL (34X41X4)

09283-34007-000   0928334007000

0928334007000

Unit Price

9
O RING

09280-41005-000   0928041005000

0928041005000

Unit Price

10
SHEET, MOVABLE DRIVEN

21471-03A03-000  

21471-03A11-000
 2147103A03000

Unit Price

11
SPRING

09440-46005-000   0944046005000

0944046005000

Unit Price

12
HOUSING, CLUTCH

21220-29A01-000   2122029A01000

2122029A01000

Unit Price

13
CLUTCH ASSY, SHOE
CLUTCH ASSY

21501-03A21-000   2150103A21000

2150103A21000

Unit Price

14
NUT 28MM
NUT

09152-28001-000   0915228001000

0915228001000

Unit Price

15
HUB, LIMITER CLUTCH

21411-29A01-000   2141129A01000

2141129A01000

Unit Price

16
STOPPER, LIMITER CLUTCH

21412-29A00-000   2141229A00000

2141229A00000

Unit Price

17
PLATE, LIMITER CL FRICTION
PLATE, FRICTION

21441-29A01-000   2144129A01000

2144129A01000

Unit Price

18
PLATE, LIMITER CLUTCH PRESSURE
PLATE, PRESSURE

21461-29A01-000   2146129A01000

2146129A01000

Unit Price

19
SPRING

09164-30003-000   0916430003000

0916430003000

Unit Price

20
NUT 10MM
NUT

09140-10035-000   0914010035000

0914010035000

Unit Price

21
GEAR, FINAL DRIVE
GEAR, FINAL DRIVE (NT:27/14)

24271-40B01-000   2427140B01000

2427140B01000

Unit Price

22
SHIM, 15X28X1.0
THRUST WASHER (15X28X1)

09181-15223-000   0918115223000

0918115223000

Unit Price

23
BEARING(15X22X15)
BEARING, CNTR SHAFT, R

09263-15009-000   0926315009000

0926315009000

Unit Price

24
BEARING(15X20X18)
BEARING, FINAL DRIVE, R

09263-15035-000   0926315035000

0926315035000

Unit Price

25
BEARING(15X20X13)
BEARING, FINAL DRIVE, L

09263-15038-000   0926315038000

0926315038000

Unit Price

26
BEARING(15X42X13)<br />BEARING, CNTR SHAFT,L
BEARING(15X42X13)
BEARING, CNTR SHAFT, L

09262-15027-000   0926215027000

0926215027000

Unit Price

27
SEAL, OIL
OIL SEAL, CNTR, L OIL

09283-15003-000   0928315003000

0928315003000

Unit Price

28
BEARING(15X28X2)<br />BEARING, FINAL DRIVE,R
BEARING(15X28X2)
BEARING, FINAL DRIVE, R

09263-15003-000   0926315003000

0926315003000

Unit Price

29
SHAFT, DRIVE
SHAFT, DRIVE (NT:19)

24141-40B00-000   2414140B00000

2414140B00000

Unit Price

30
GEAR, IDLE DRIVE NO.2

24290-29A00-000  

24290-29A01-000
 2429029A00000

Unit Price

31
BUSH

09301-15002-000   0930115002000

0930115002000

Unit Price

32
SEAL, DRIVE SHAFT OIL NO.2
OIL SEAL

24142-40B00-000   2414240B00000

2414240B00000

Unit Price

33
SEAL.OIL(20X47X12)
OIL SEAL (20X47X12)

09283-20047-000   0928320047000

0928320047000

Unit Price

34
BEARING

09262-20019-000  

09262-20121-000
 0926220019000

Unit Price

35
DISCONTINUE
RETAINER

24751-40B00-000   2475140B00000

2475140B00000
Not available
36
BOLT

01500-06163-000  

01500-0616A-000
 0150006163000

Unit Price

37
SPROCKET, ENGINE(10T-520)
SPROCKET, ENGINE (NT:10)

27511-40B10-000   2751140B10000

2751140B10000

Unit Price

38
CHAIN, DRIVE
CHAIN ASSY (RK 520SMX36LE)

27600-34A40-036   2760034A40036

2760034A40036

Unit Price

39
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 80 QUADSPORT 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 QUADSPORT 2000

Choose your Suzuki 80 2000 QUADSPORT model

80 QUADSPORT 2000 LT80Y(P3/P28)

Suzuki QUADSPORT

Displacement: 80 cc
Year: 2000
Model code LT80Y(P3 / P28)
